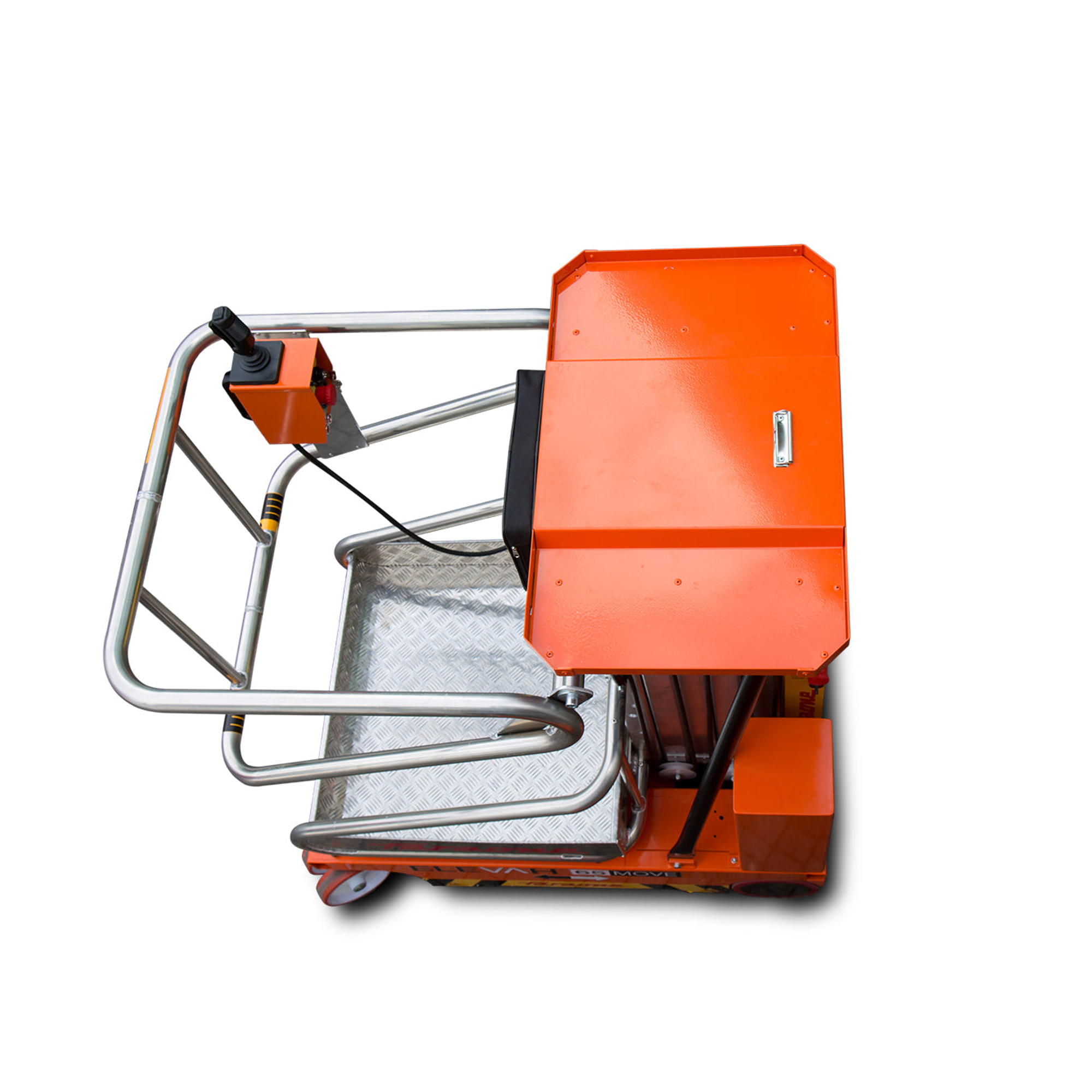

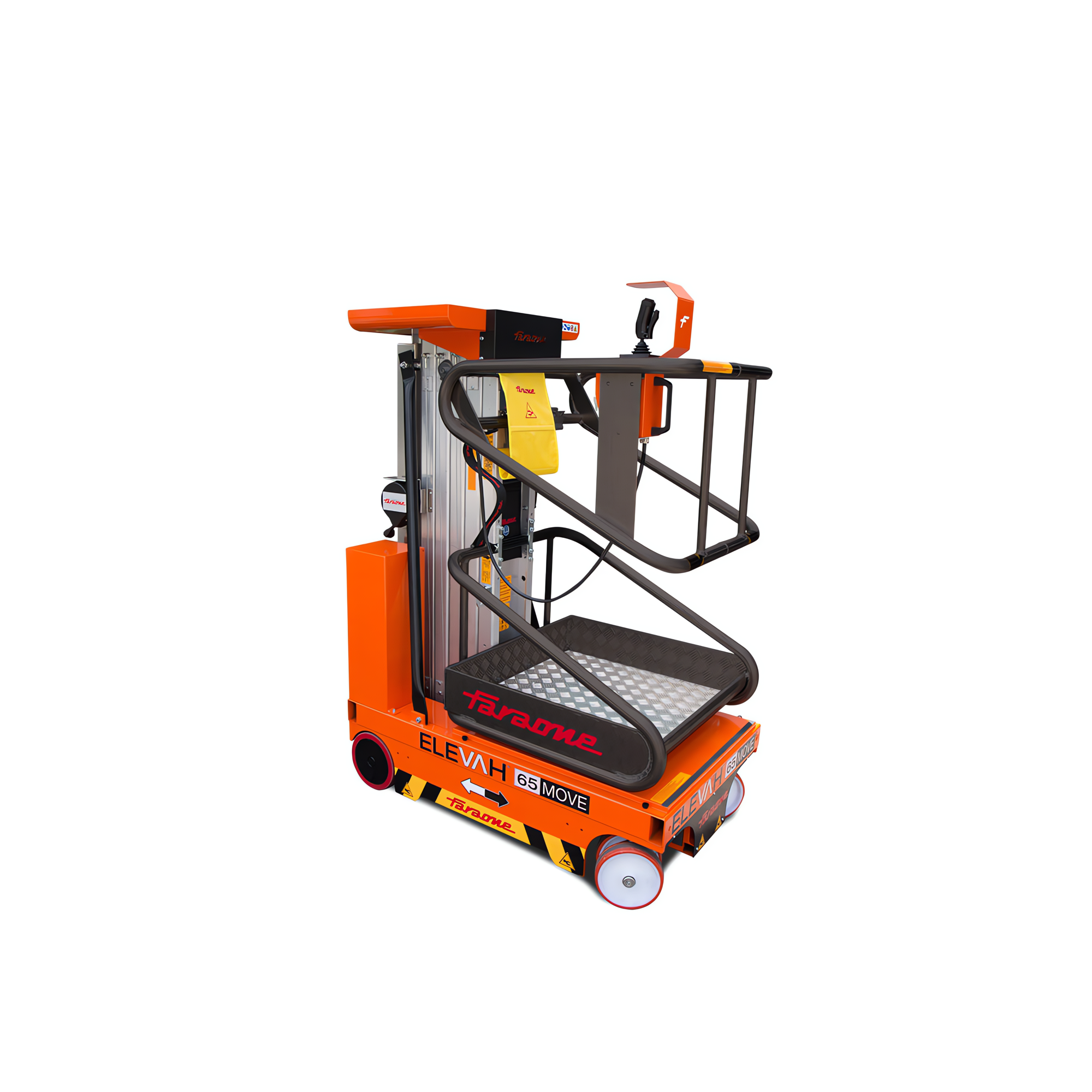

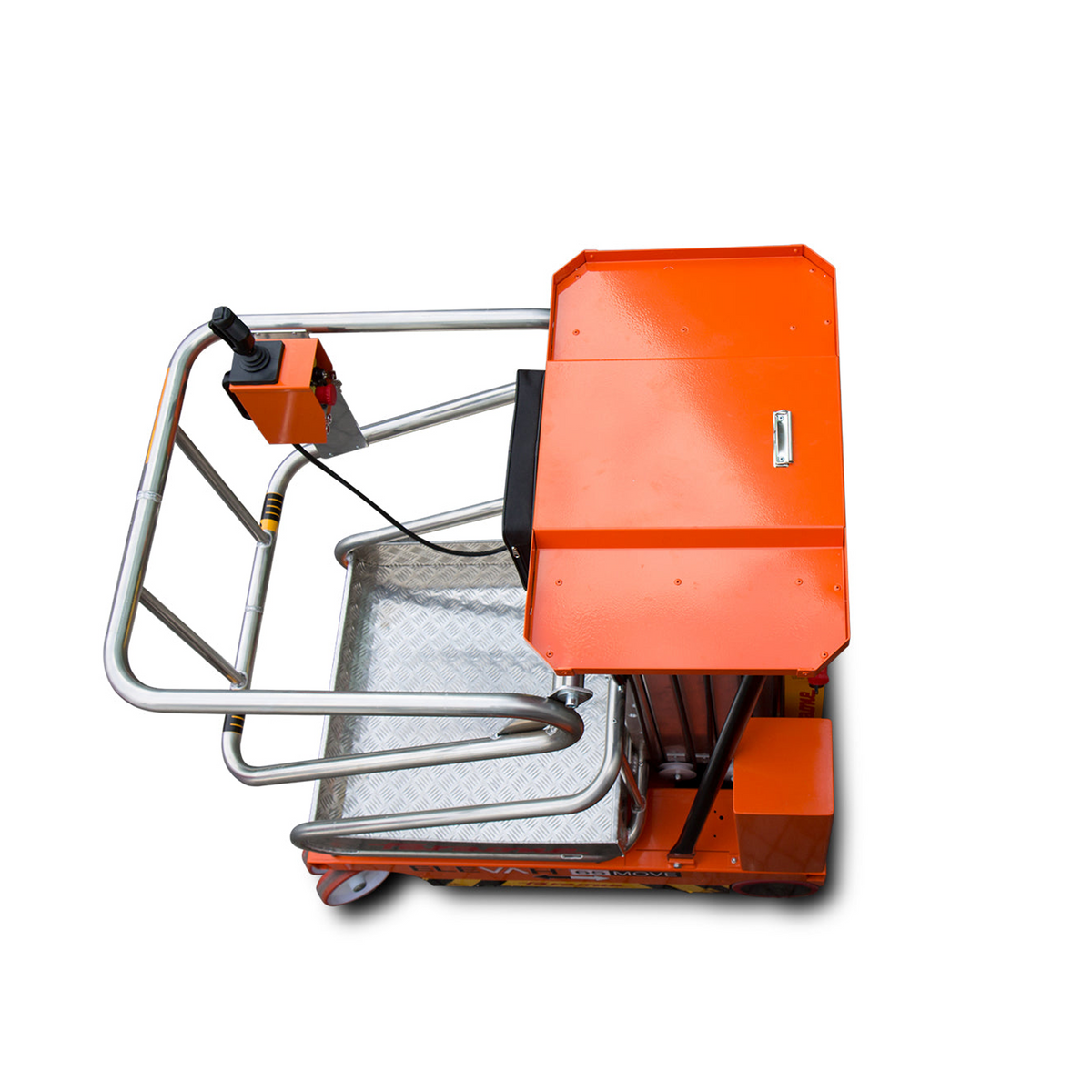

ELEVAH 65 Move

Elevah 65 Move is a compact self-propelled platform with electric elevation that allow reaching up to 6,5m.

65 Move
65 Move
65 Move
Info and prices

MAXIMUM WORK HEIGHT: 6.5 M

MEASUREMENTS: 78 X 128 CM H: 172 CM

MAXIMUM CAPACITY: 200 KG

WEIGHT OF THE MACHINE: 680 KG

STANDARD COLOURING: GREY AND ORANGE. CUSTOM COLOURS ON REQUEST.

SELF-PROPELLED UP TO MAXIMUM HEIGHT

SOME AREAS OF USE:

IDEAL FOR FOOD PROCESSING, AUTOMOTIVE, AVIATION, TEXTILES, ENGINEERING, ETC.
MAINTENANCE, REPAIR AND CLEANING OF PRODUCTION SYSTEMS, LIGHTING SYSTEMS, VENTILATION SYSTEMS; ASSEMBLY OF MACHINERY OR PRODUCTION SYSTEMS

Technical data Gallery Standard equipment
READ DESCRIPTION Download data sheet Increase security

Elevah 65 Move is a compact and lightweight platform, ideal for carrying out maintenance work at height in total safety.

The closed machine measures only 1.72 m height, allowing it easily pass through very narrow spaces such as hallways and pass through all kind of doors. Thanks to its compactness and low weight, it is a suitable solution for theaters, museums, conference halls, in addition to the industrial sector.

The basket has a comfortable and safe access that allows the operator to work at height protected on all sides, reducing the risks of injury and optimizing time.

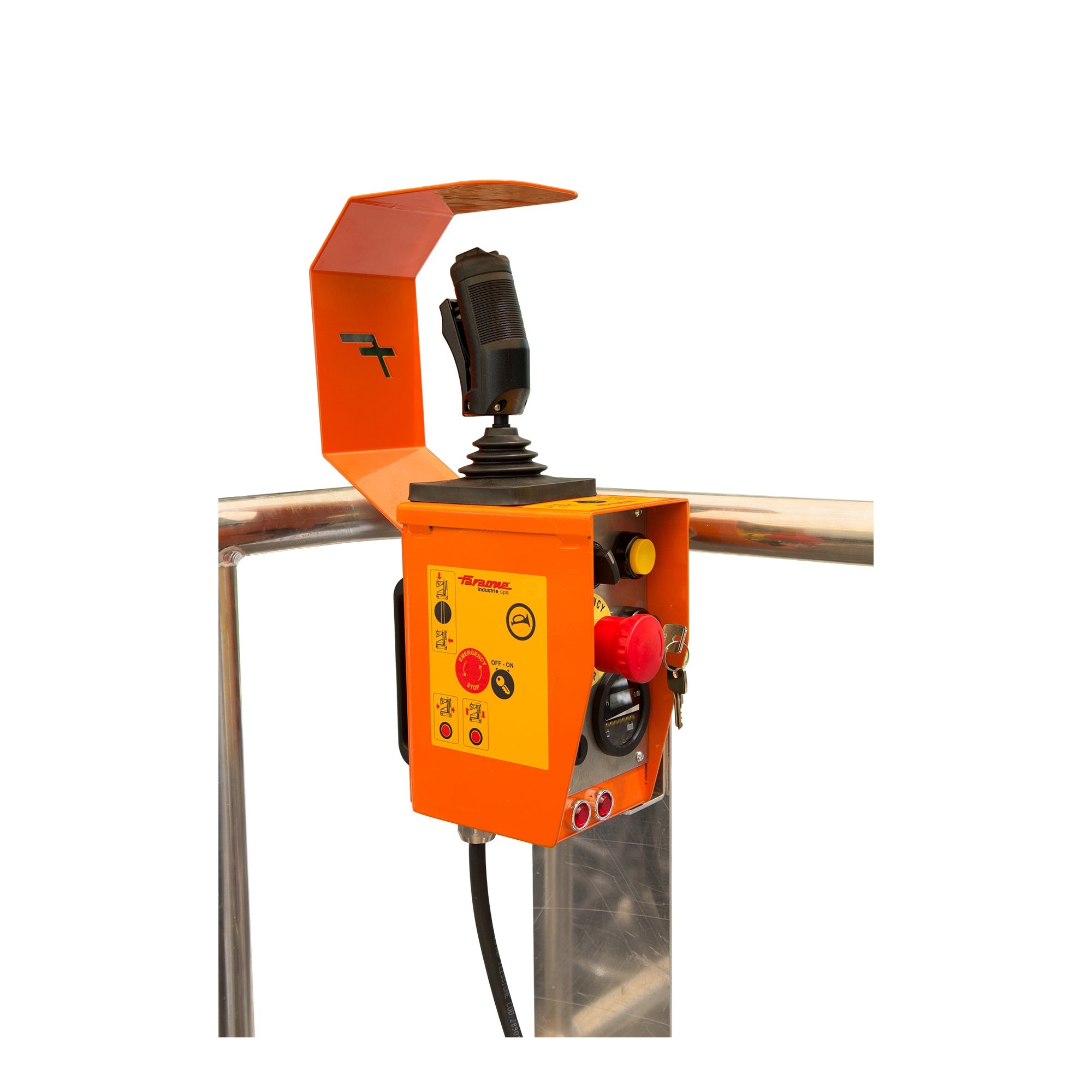

Easy to maneuver thanks to the convenient joystick and the zero turning radius allows you to move easily even in the narrowest places.

The platform can be easily loaded onto a van thanks to the remote control and conveniently transported.

In the equipment and accessories section, you will find a list of standard components and accessories to customize the Elevah 65 Move and adapt it to your needs.

  • FRONT, REAR AND CEILING ANTI-COLLISION RADAR
  • SPEED CONTROL: speed limiter with basket on the ground
  • BASKET BLOCK: max. at 1,95 m height...
  • BLUESPOT1 AND BLUESPOT2 (driving direction signalling light)
  • ANTI-CRUSHING PROTECTION UNDER THE BASKET

MORE OPTIONAL

  • DIFFERENT COLORING OF MACHINE UPON REQUEST
  • DIRECTIONAL LOCKING OF SWIVEL WHEELS
  • TRUCK LOADING AND UNLOADING SYSTEM

Standard charger with retractable cable (Not included if the BKIT option is selected).

The machine can work at temperatures between -10° C and +40 °C

Max. working height 6,5 m
Max capacity 200 kg
Number of people 1
Use Internal
A Closed machine height 1720 mm
B Minimum platform height 400 mm
C Maximum platform height 4680 mm
D Base overall dimensions 1280 mm
E 780 mm
F Cage dimensions 770 mm
G 790 mm
Machine weight 680 kg
H Fixed picking tray dimensions 740 mm
I 440 mm
Fixed picking tray capacity 20 kg
Drive wheels dimension Ø 220 x 65 mm
Swivel wheels dimensions Ø 200 x 50 mm
PERFORMANCE
Power supply 24 V
Batteries Lead-Acid Batteries 12V 105 Ah
Battery charger 110V – 230V 50/60HZ
J Maximum climbing ability 15 %
Climbing ability at height 2,5 %
Internal turning radius 0
External turning radius 1095 mm
Max. speed (rising – descending) 0,2 m/s
Maximum shifting speed (on the ground - at height) 4 km/h - 1km/h
K Maximum pressure for wheel at full load* 3,1 kN
Work cycles (with fresh batteries)** Ca. 130

* Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.

Compliant with EN280 rule.
Approved for indoor use or outdoor use in the absence of wind.


Download data sheet
bollino
disegno

Safety equipment

Maximum capacity control via relief valve
Electronic inclinometer with anti-tip function
Potentiometer for adjusting the maximum translation on the edge of the basket
Alarm acustic signal
Motion buzzer
Light movement indicator
Automatic electronic parking brake
Horn
Joystick with safety catch against accidental activation
IP65 protected drive wheels
Manually activated emergency descent of the basket to base

Ergonomics and functionality equipment

Storage shelf on the column

Electronics, power supply and batteries equipment

Proportional type self-propulsion
Proportional basket lifting
Lifting block with 80% batteries
Hour meter and battery charge indicator on basket

Safety Devices

BLUESPOT1
Front signalling light
BLUESPOT2
Pair of signaling lights (front + rear)
REDLIGHT1
REDLIGHT1 - Pair of red lateral signalling lights
65 RADAR 1B
Rear Anti-collision Radar System for the Chassis
65 RADAR 1
Frontal Anti-collision Radar System for the Chassis
65 RADAR 3
Anti-collision Radar System to the Top (Driver’s Head protection)
51 KEY
Machine start-up with code (only for 24 Volt version)
PEVA3
External protection for the Basket for E65/E80 MOVE with the option 'Double side entrance basket'.
65MPR
Crushing protection under the basket
E65BLMA
Directional block
65 KEY ACC
Key switch to limit the standing height
BLUE SPOT M
Frontal BLUE SPOT

Ergonomics and functionality equipment

65.ROU3
Dark grey 90 Shore ANTISTATIC ESD non-marking polyurethane wheel with electrical resistance
65.RUO2
80 Shore A Powercast non-marking polyurethane wheel with marking for water drainage
PARACO32
Upholstered Cover
RLB ( l.1020 )
Side rollers wide 1020 mm, to drive through shelf aisles
RL
Side rollers to drive through shelf aisles
RLA ( I.980 )
Side rollers wide 980 mm, to drive through shelf aisles
PCCUSB
Socket on board basket with USB socket
PCC
Current socket on the basket. 24 V/5 A
CL
Wooden Crate for shipping
IP65.MOVE
IP65 Certification. Requires AGM batteries
51 IN
Additional control button to operate the machine with both hands
65 ZA
Ballast for slippery floors (100 kg)
65 SCR
Loading system for ramps
X COV
Resistant tarpaulin
SC
Speed controller
CEST 2A
Double side entrance basket. With this accessory the machine weighs about 100kg more
TA 7
Cushioning Pad in EVA

Batteries

65 BKIT
Kit with 2 batteries for 24H operation
BG
Batteries without maintenance Trojan mod. 31 AGM 100 Ah (1 Kit)
LITIO 4
Kit with 2 Trojan 12.8 Volt 110 A lithium batteries + increased battery charger. minimum operating temperature 4 °

Colours

RAL1
Customised machine finish painting
RAL2
Custom painting of the machine base
ZNC
Galvanized machine plus epoxy powder coated

Info & prices

For more information on any of our products feel free to call us on 07403005485, or use our form and we'll be in touch as soon as possible.
