ELEVAH 40B Picking

MORE for the picking of materials.

40B Picking
40B Picking
40B Picking
40B Picking
40B Picking
Info and prices

MAXIMUM WORK HEIGHT: 4 M

MEASUREMENTS: 71.5 X 100 CM H: 173 CM

MAXIMUM CAPACITY: 200 KG

WEIGHT OF THE MACHINE: 350 KG

STANDARD COLOURING: GREY AND ORANGE. CUSTOM COLOURS ON REQUEST.

PICKING PLATFORM:

LOAD CAPACITY: LOAD UP TO 100 KG

FOLDABLE: TO SAVE SPACE

ADJUSTMENT: MANUAL TRACTION AND ELECTRIC ELEVATION

SOME AREAS OF USE:

PICKING AND/OR STORAGE OF SMALL OR INDIVIDUAL COMPONENTS.
IDEAL FOR SHELF ORGANISING AND STORING AND WAREHOUSES OF GARDEN CENTRES, CHAINS, SUPERMARKETS, SHOPS.

Technical data Gallery Standard equipment
READ DESCRIPTION Download data sheet Increase security

Elevah 40b Picking is the picking ultra-compact push around machine with automatic lifting. It allows you to carry out storage operations, organization and restocking of warehouses. Handy and efficient, it reaches a maximum height of 4 meters.

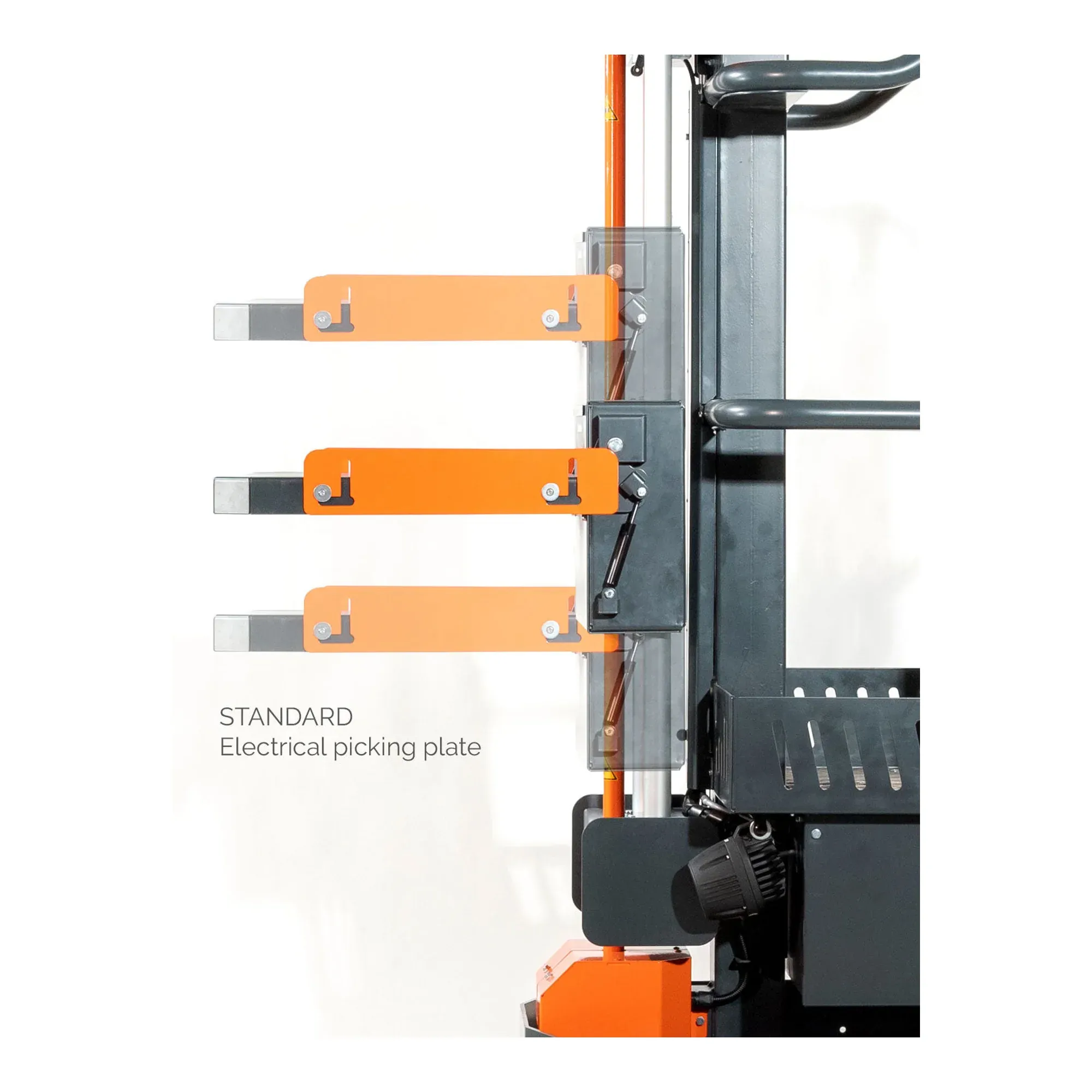

Elevah 40B Picking is designed to carry out all goods picking operations: the picking tray has a maximum load capacity of 100 kg and is electrically adjustable, allowing you to maintain an ergonomic position while working and to avoid injuries and strains. Also available with manual tray (optional).

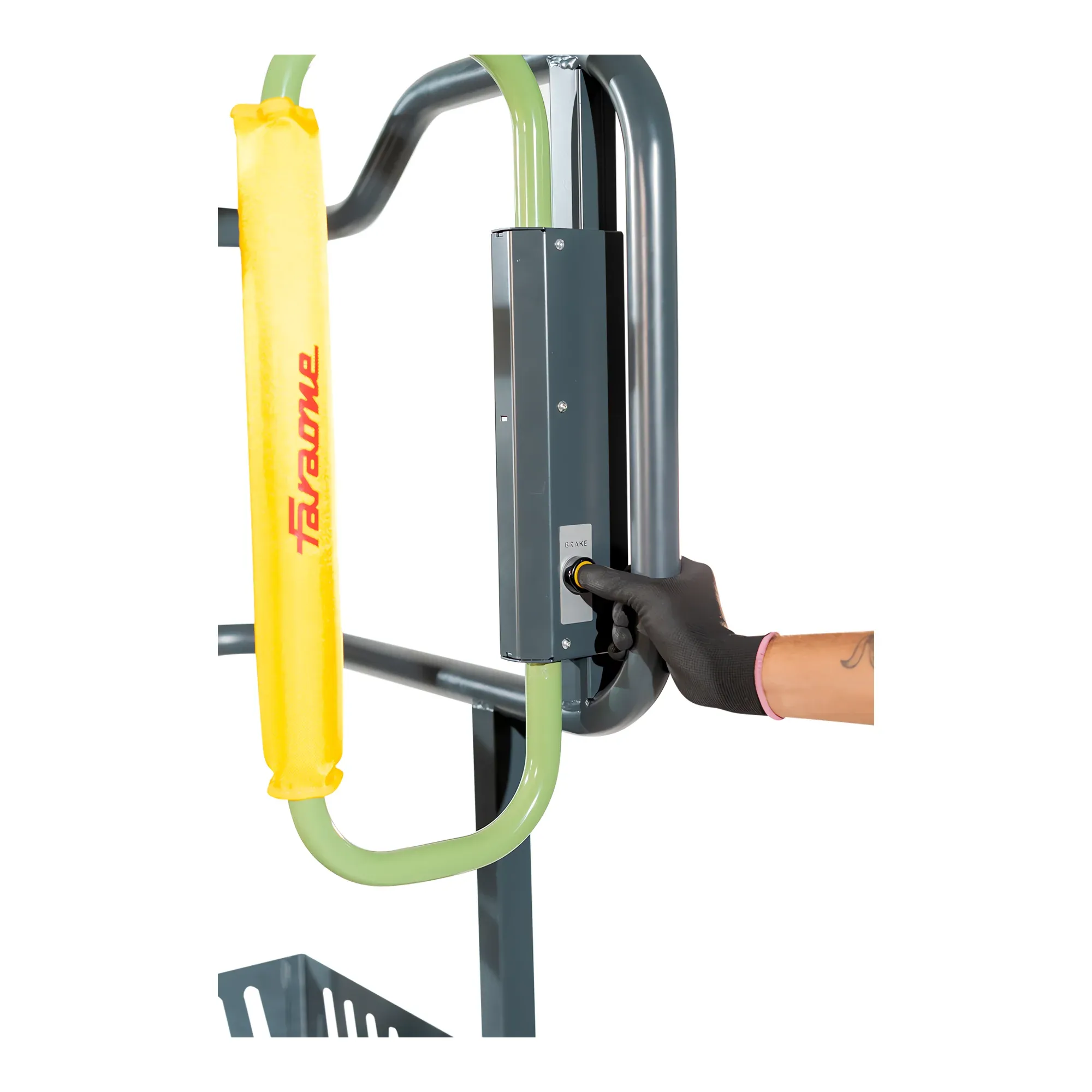

To move the machine, simply grab the handles and press the buttons, thus releasing the brakes and allowing transport. Once you have reached the desired position, simply release the buttons and the machine returns to braking condition. Once positioned, simply access the basket and operate the control to reach the desired height.

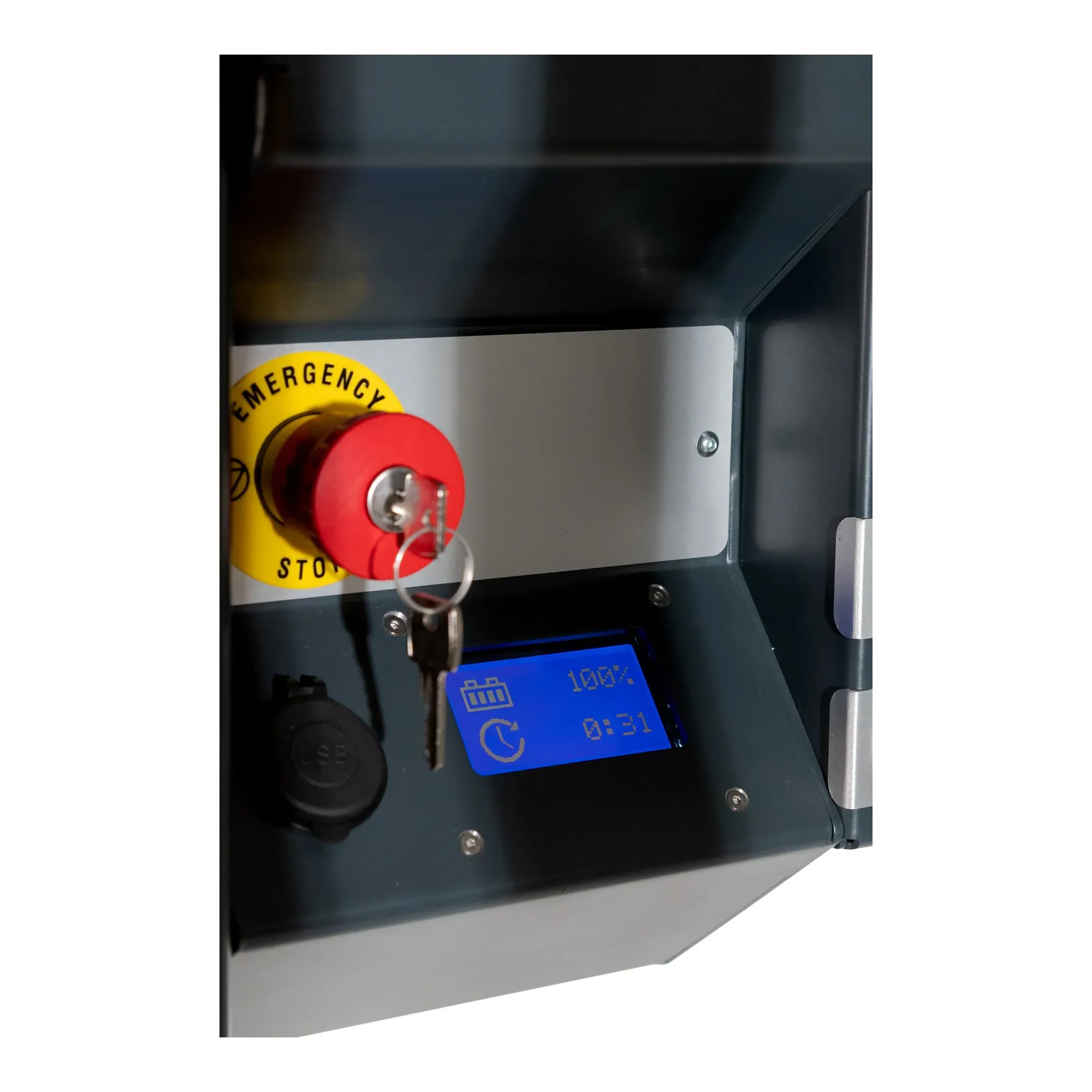

Elevah 40B Picking offers numerous advantages in terms of work optimization, but also work safety. In fact, thanks to the locking of the doors, the basket cannot be accidentally opened. This aspect is a real guarantee of safety for the operator who can work in complete confidence. Furthermore, it is equipped with a display which, in addition to indicating the battery status, provides all the information on any machine errors. Finally, there are luminous indicators of movement and emergency descent.

In the equipment and accessories section, you will find the list of standard components and accessories to customize Elevah 40B Picking.

The machine can work at temperatures between -10° C and +40 °C

Max. working height 4 m
Max capacity 200 kg
Number of people 1
Use InternalExternal
A Closed machine height 1730 mm
B Min. height from the ground* 290 mm
C Maximum platform height 1950 mm
D Base overall dimensions 1000 mm
E 715 mm
F 1425 mm
G Cage dimensions 685 mm
H 580 mm
Machine weight 350 kg
Idle front wheel size Ø 125x35
Idle rear wheels size Ø 150x40
PICKING PLATFORM
I Dimensions 500 mm
L 680 mm
Adjustment Electric
J Stroke 700 mm
Min. height from the ground 850 mm
Maximum height from the ground 2875 mm
Capacity 100 kg
PERFORMANCE
Power supply 24 V
Batteries 2 AGM 12V 45 Ah
Battery charger 115V–230V 50/60HZ
M Maximum climbing ability 15%
Internal turning radius 0
R External turning radius 860 mm
Max. speed (rising) 0,15 m/s
Max. speed (descending) 0,15 m/s
N Maximum pressure for wheel at full load ** 1,55 kN
Work cycles (with fresh batteries) ** Ca. 110

* There is an intermediate step.

** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

CE and TUV certified and approved for internal use in the absence of wind.
In assessing compliance, only those standards whose proposed measures have been implemented were considered and only if a corresponding risk does indeed exist.


Download data sheet
bollino
disegno

Safety equipment

Maximum capacity control via relief valve
Light movement indicator
Picking platform maximum capacity control with electronics on motor (Only on electrical platform)
Automatic electronic parking brake
2-sash access doors to basket with closure control
Joystick with safety catch against accidental activation
Manually activated emergency descent of the basket to base

Ergonomics and functionality equipment

Fold-away electrical picking platform
Picking platform side guards

Electronics, power supply and batteries equipment

Lifting block with 80% batteries
Hour meter and battery charge indicator on basket
Multi-voltage and multi-frequency battery charger 6A - 115V - 230V - 50/60Hz.
High resistance batteries AGM 24V - 50A

Safety Devices

REDLIGHT1
REDLIGHT1 - Pair of red lateral signalling lights
E65 POM
Protection for the operator’s head above the cage. Made of steel, it protects the operator should small objects fall from above
PEVA3
External protection for the Basket for E65/E80 MOVE with the option 'Double side entrance basket'.
65MPR
Crushing protection under the basket
51 KEY
Machine start-up with code (only for 24 Volt version)
40 KEY ACC
Configurable machine height block

Picking Platform

DPOP
Storage divider for picking plate
PRA.P
Automatic picking floor adjustment system
E5PEPP
Components to enlarge the picking tray.
SP.TFL
3 extractable protections for picking platform
PFE.PM
Front protection on manual picking tray
E5 PMF
Extension for picking platform (removable) + 27 cm (for electrical picking platform only)
E40PSAP

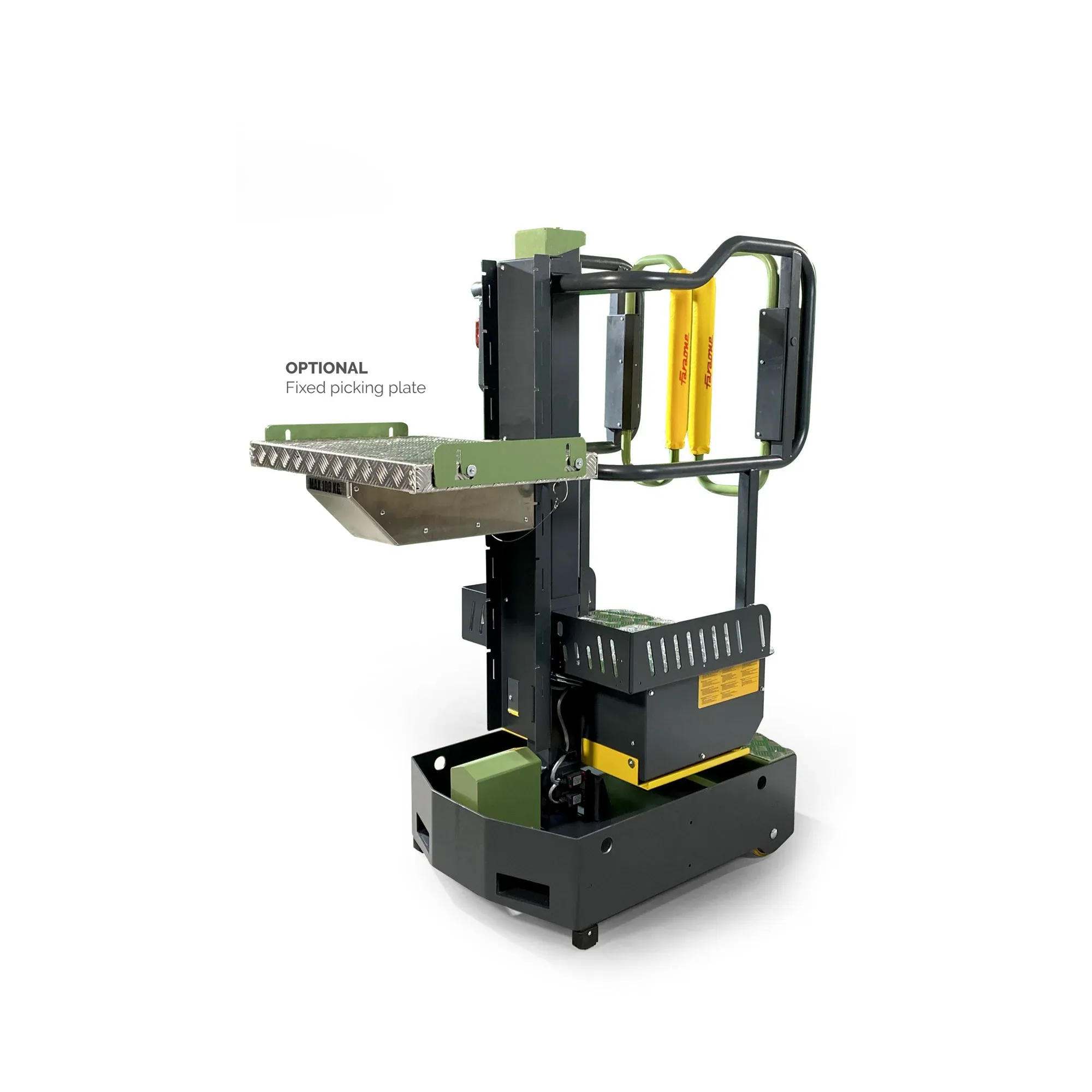

Manually adjustable removable picking platform, 100 kg capacity
PFE.P
Front protection on picking elettric's tray
E5CPT
Carry-All rack to fit on the picking plate, removable, 60 cm height.
E5 C
Belt with winder to block the goods during picking activities
E40PEPP
Components to enlarge the manual picking tray.
E5PROPEPP
Perimeter protection for picking platform
40HANG
Clothes hanger tube

Ergonomics and functionality equipment

BSA
Door block by lifted basket
PARACO50
Two Upholstered Covers 50 cm
PCCUSB
Socket on board basket with USB socket
PCC
Current socket on the basket. 24 V/5 A
E40PALLET
Unloading system of the machine from truck platform without forklift
E5RLA ( I.880 )
Side rollers wide 880 mm, to drive through shelf aisles
RLA ( I.980 )
Side rollers wide 980 mm, to drive through shelf aisles
RLB ( l.1020 )
Side rollers wide 1020 mm, to drive through shelf aisles
X COV
Resistant tarpaulin
CL
Wooden Crate for shipping
E40 CR
Additional machine up and down control only for loading-unloading on van
TA 7
Cushioning Pad in EVA
E40 SCR
Loading system for ramps. It can only be used with the addition of the controls at the base of the machine: also select the E40CR accessory
IP65.MOVE
IP65 Certification. Requires AGM batteries

Batteries

LITIO 2
Lithium Batteries 12.8V 50Ah

Colours

RAL1
Customised machine finish painting
RAL2
Custom painting of the machine base
E40 WHITE
Base painted grey (RAL 7016) with white finishing (RAL 1013)
E40 GREEN
Base painted grey (RAL 7016) with green finishing (RAL 6011)
E40 ZI.VE
Elevah 40 galvanised and then painted, it guarantees higher resistance to atmospheric agents
