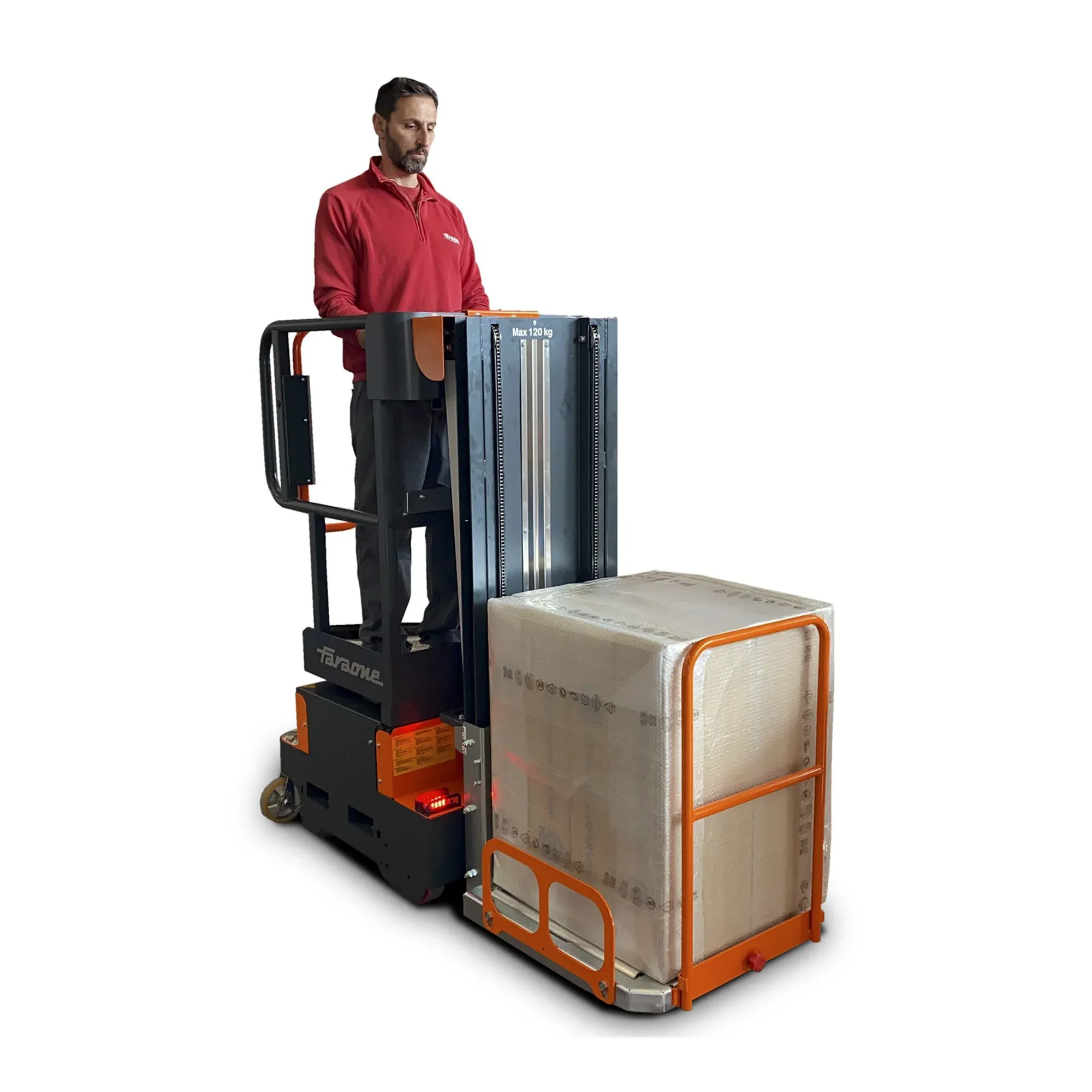

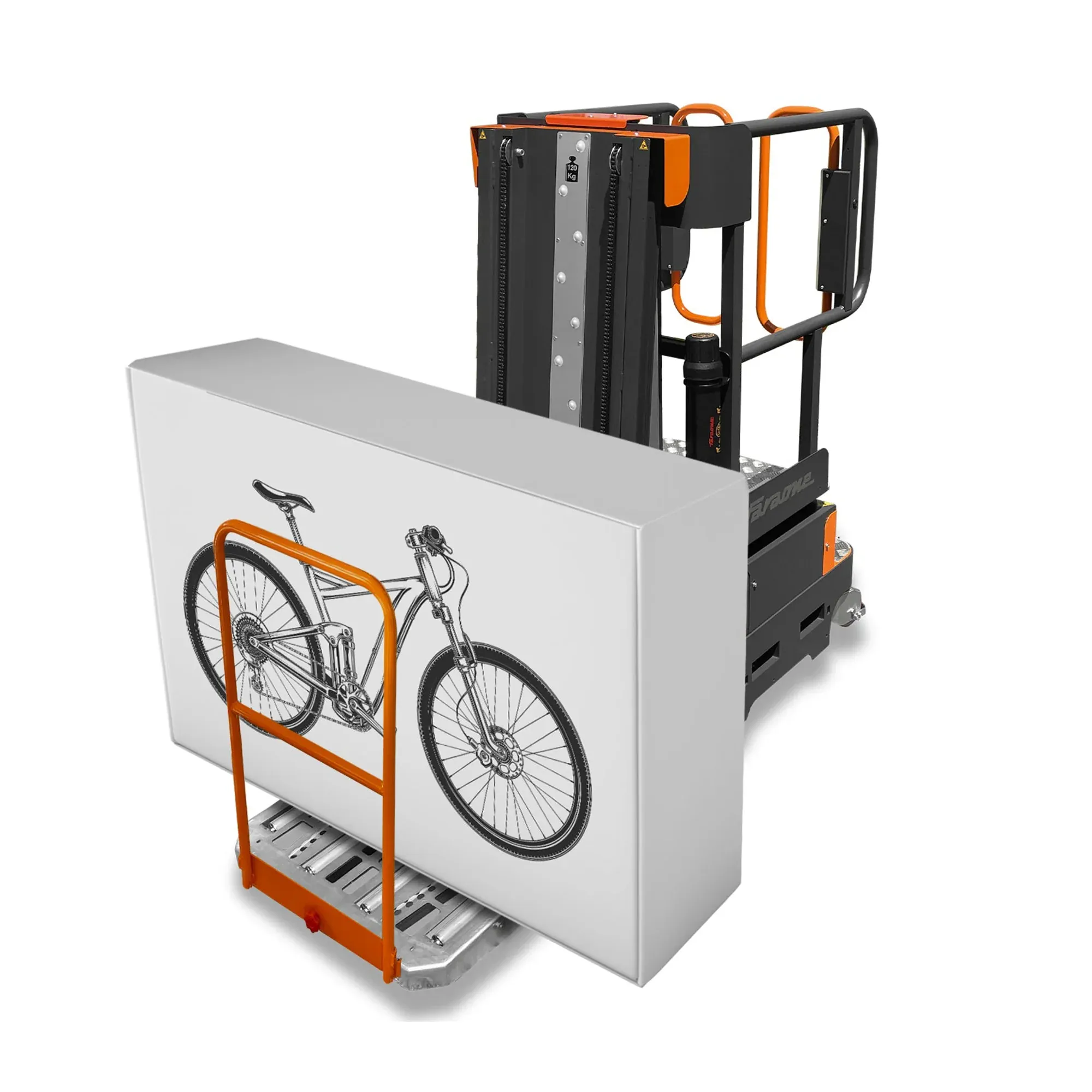

A special stock picker with a tool to lift materials from the ground.
MAXIMUM WORK HEIGHT: 5.15 M
MEASUREMENTS: 70 X 189 CM H:169 CM
MAXIMUM CAPACITY: 220 KG (OPERATOR + LOAD)
WEIGHT OF THE MACHINE: 820 KG

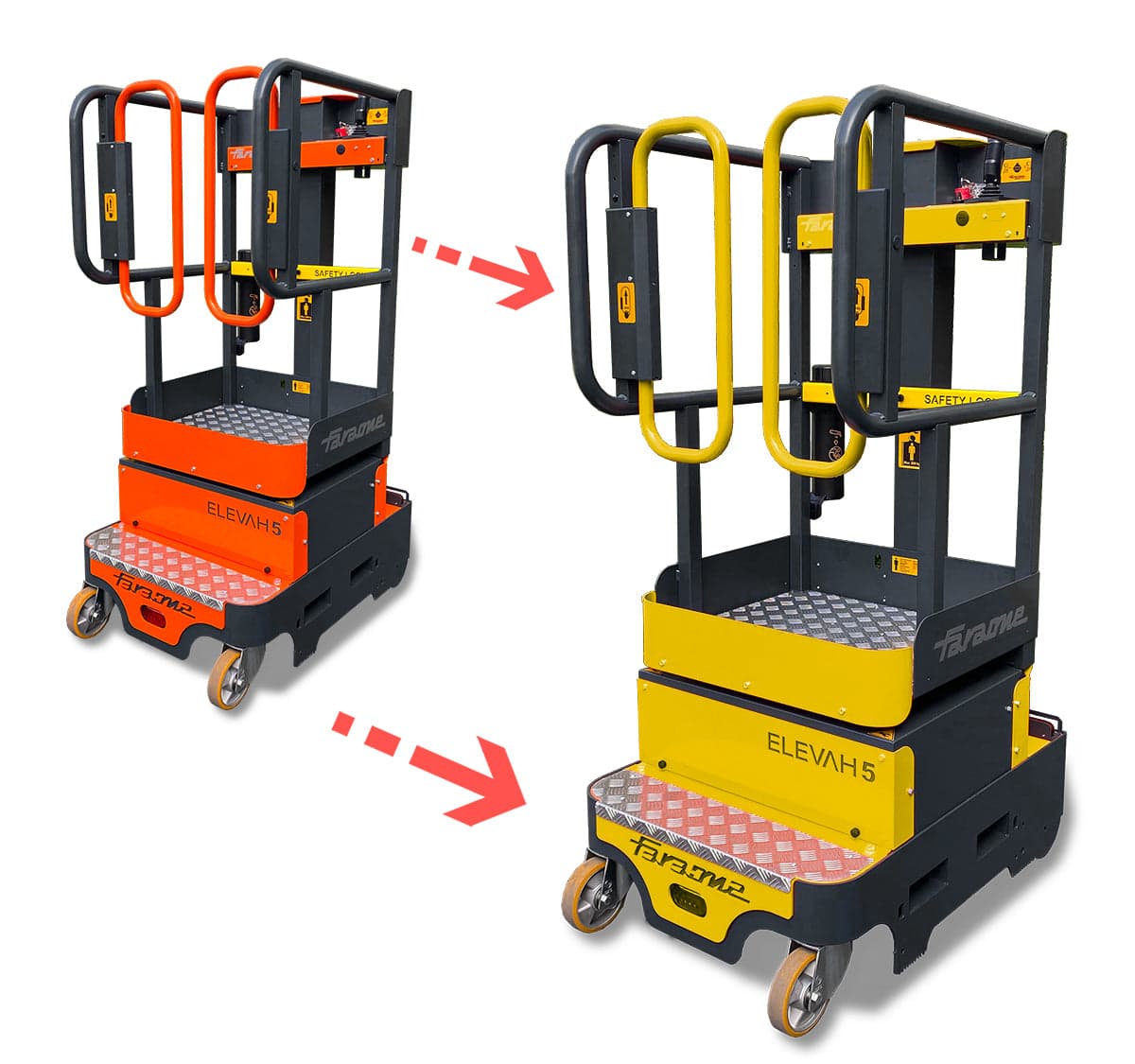

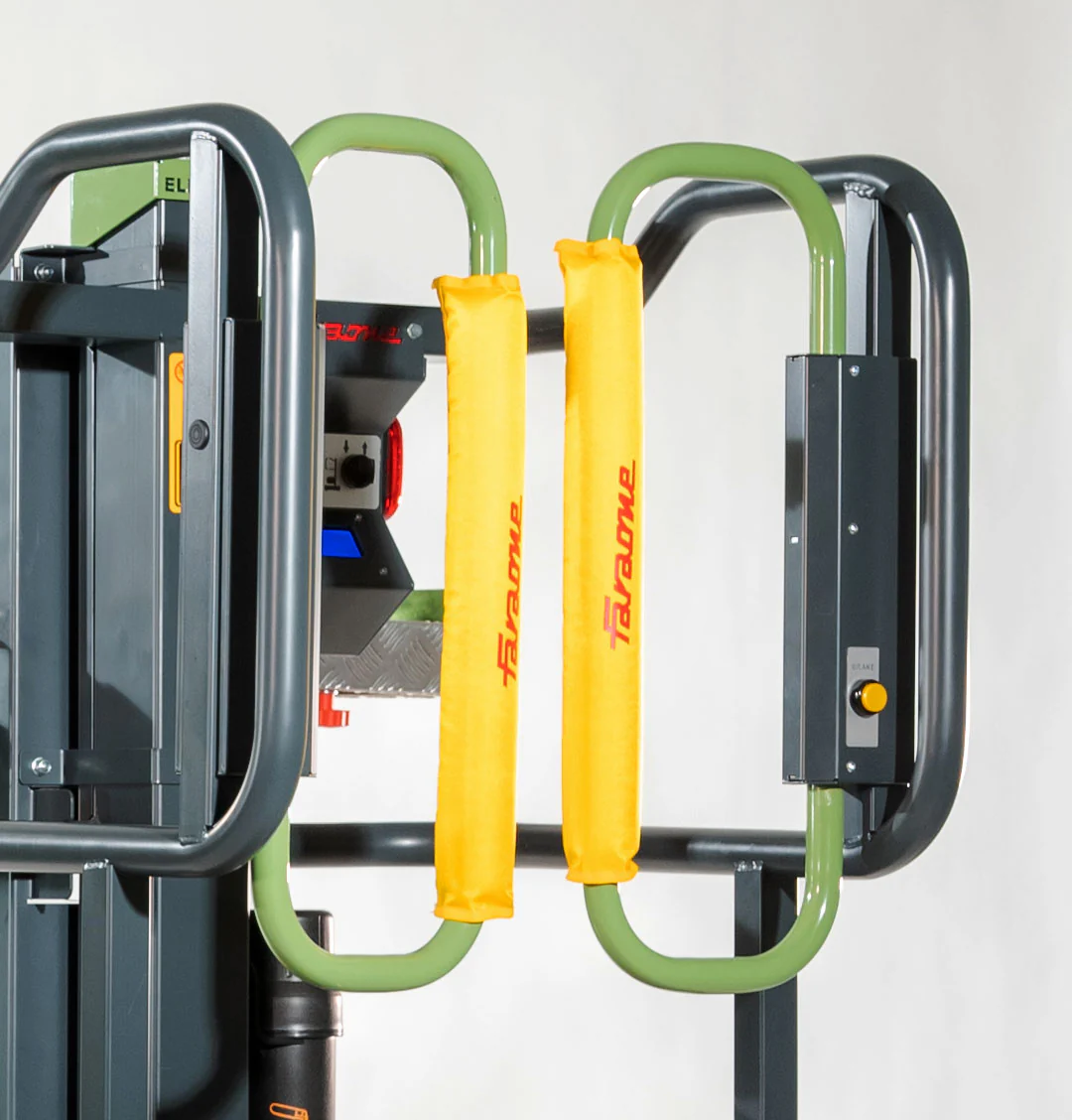

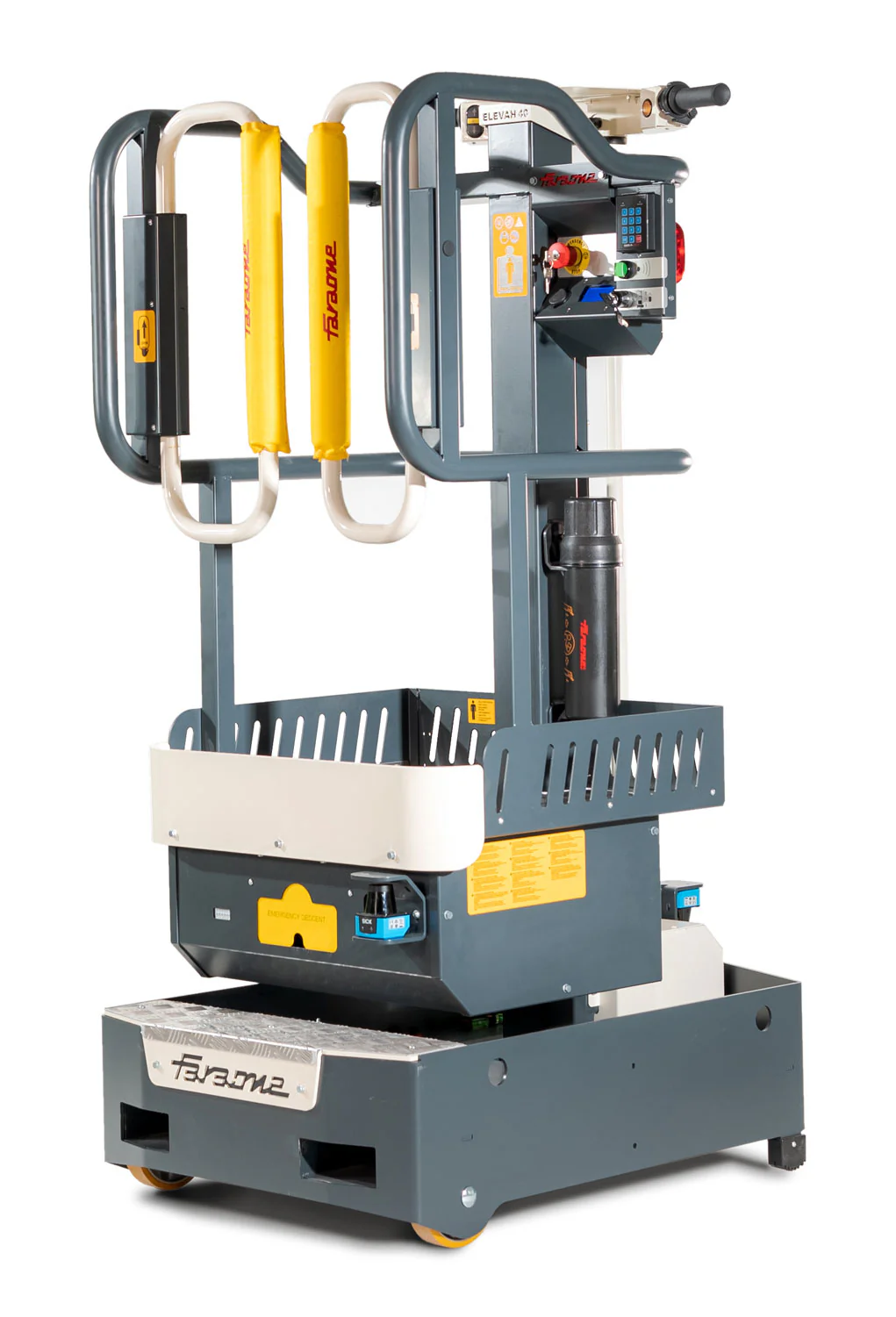

STANDARD COLOURING: GREY AND ORANGE. CUSTOM COLOURS ON REQUEST.

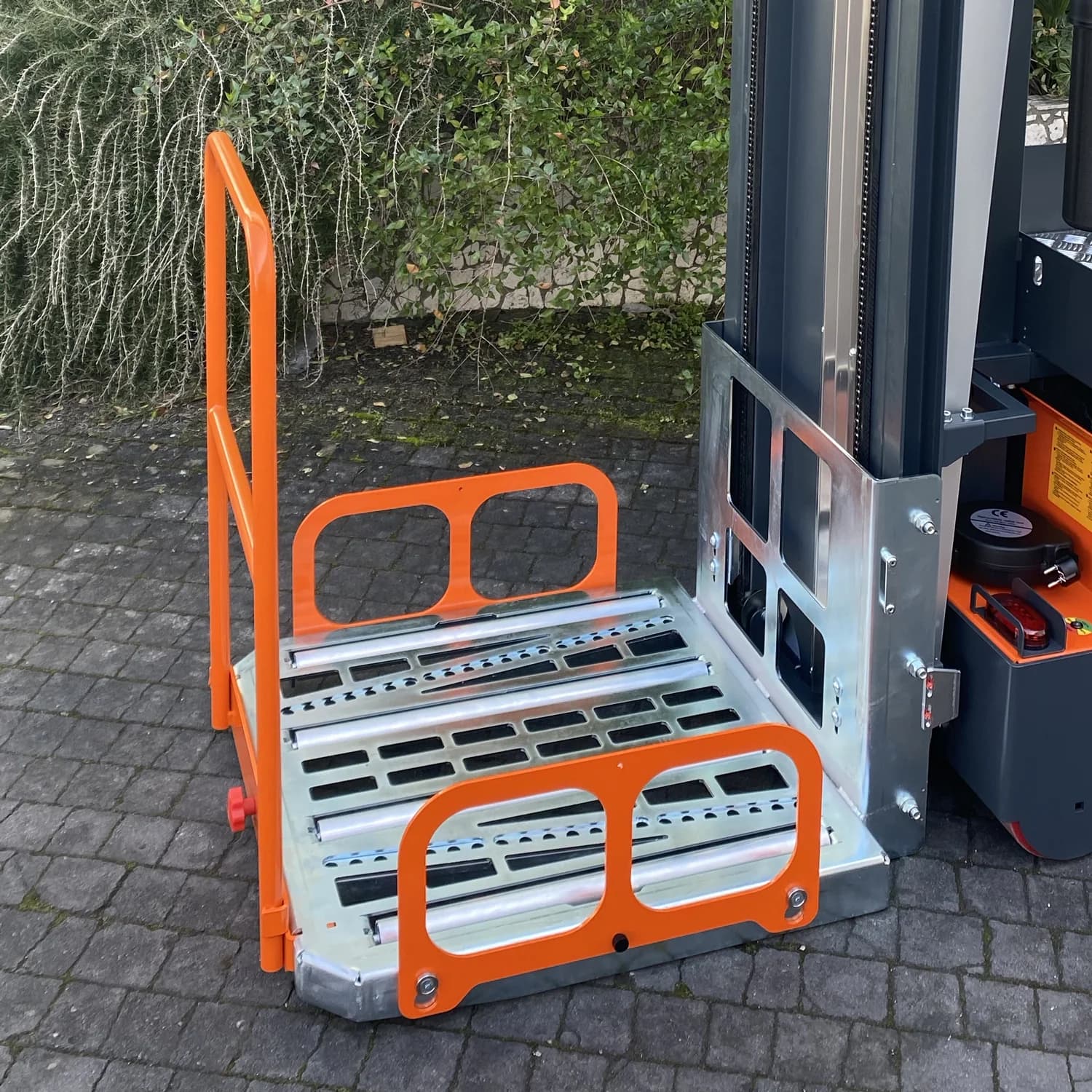

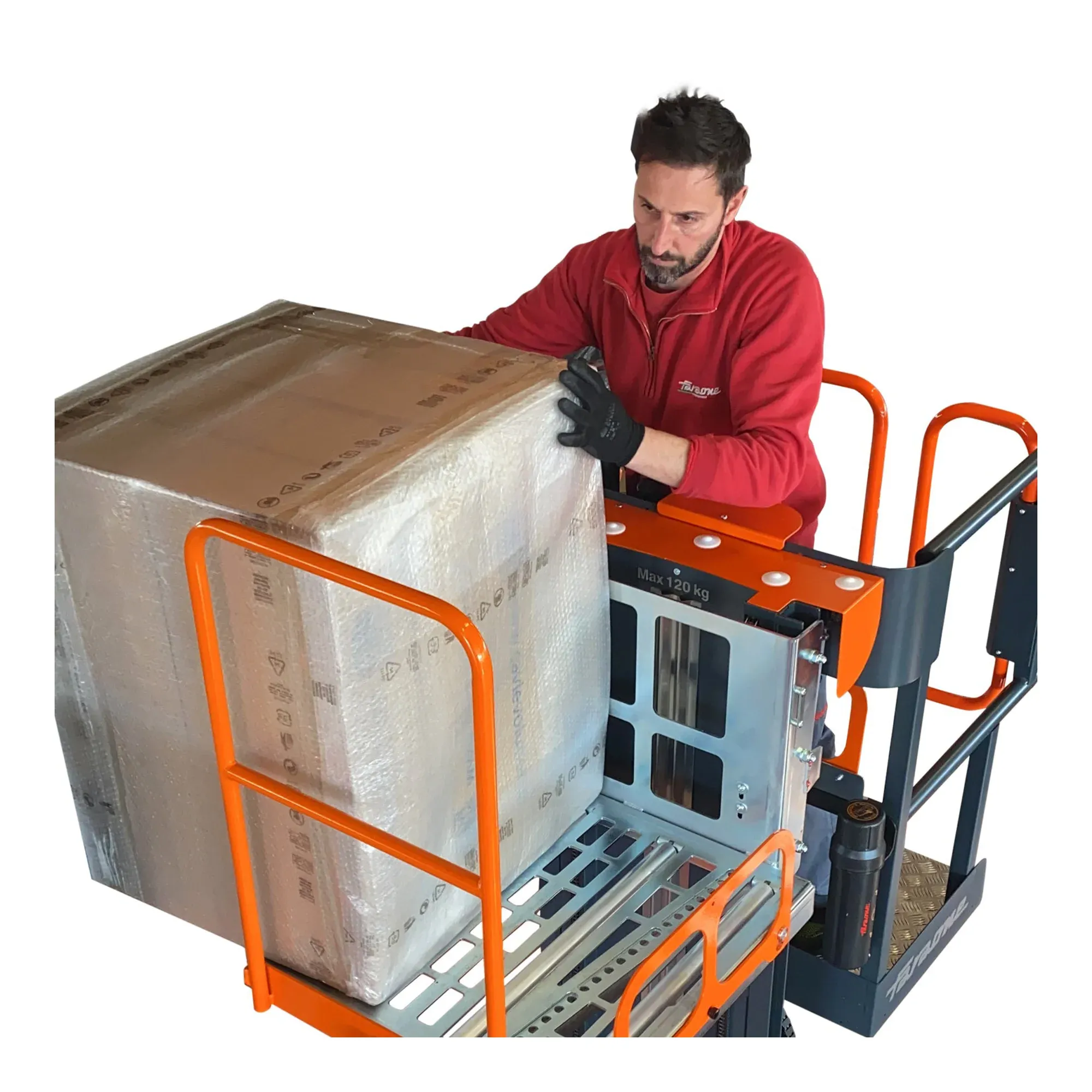

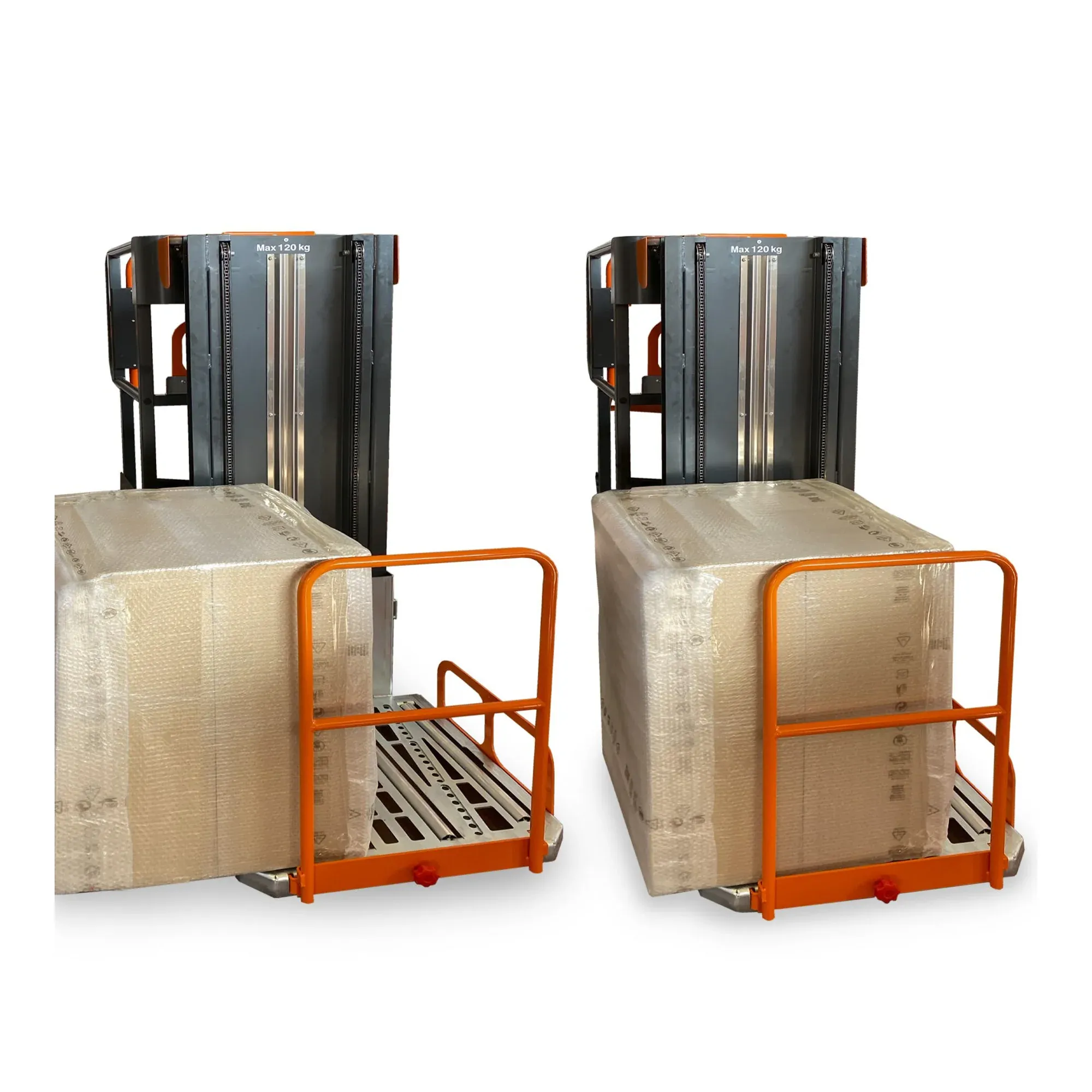

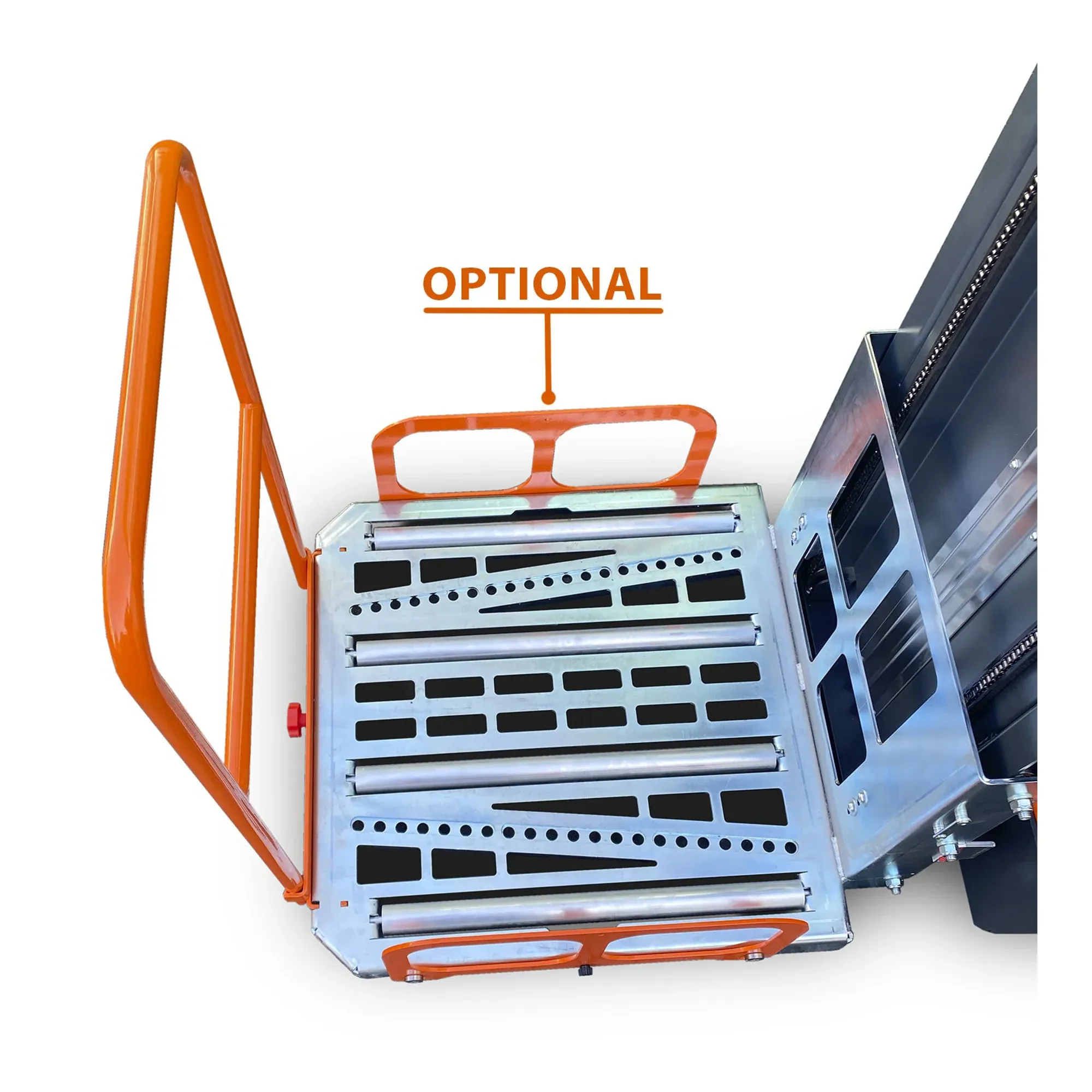

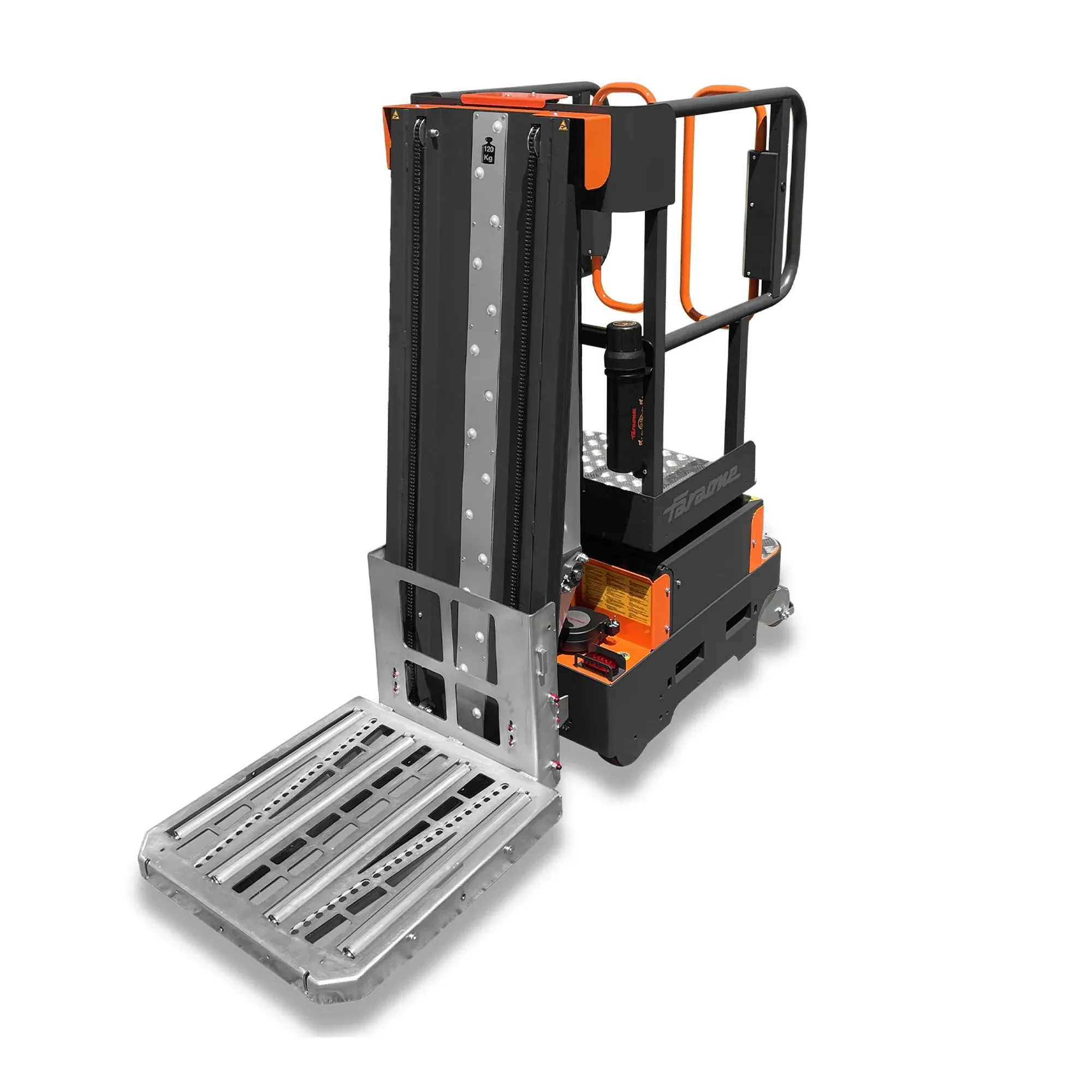

PICKING PLATFORM:
LOAD CAPACITY: LOAD UP TO 100 KG
ADJUSTMENT: ELECTRIC
EQUIPPED WITH SLIDING WHEELS
SOME AREAS OF USE:
PICKING AND/OR STOCKING OF PRODUCTS IN WAREHOUSES, SHOPS, RETAILERS (ELECTRICAL APPLIANCES, BICYCLES, E-COMMERCE RETAILERS)
| Max. working height | 5,15 m | ||
|---|---|---|---|
| Max capacity | 220 kg | ||
| Number of people | 1 | ||
| Use | Internal - External | ||
| A | Closed machine height | 1690 mm | |
| B | Minimum platform height | 289 mm | |
| C | Maximum platform height | 3150 mm | |
| D | Base overall dimensions | 1890 mm | |
| E | 700 mm | ||
| F | 1160 mm | ||
| G | Cage dimensions | 685 mm | |
| H | 600 mm | ||
| Machine weight | 820 kg | ||
| Drive wheels dimension | Ø 186 x 60 mm | ||
| Swivel wheels dimensions | Ø 150 x 40 mm | ||
| PICKING PLATFORM | |||
| Adjustment | Electrical | ||
| J | Stroke | 1170 mm | |
| Min. height from the ground | 100 mm | ||
| Maximum height from the ground | 3860 mm | ||
| I | Dimensions | 700 mm | |
| L | 700 mm | ||
| Capacity | 120 kg | ||
| PERFORMANCE | |||
| Power supply | Electrical | ||

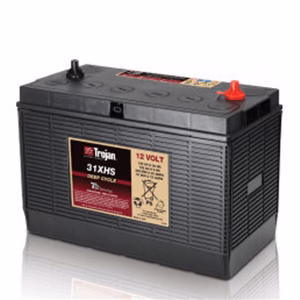

| Batteries | Lead-Acid Batteries 12V 105 Ah | ||
| Battery charger | 110V – 220V | ||
| Climbing ability at height | 2,5% | ||
| M | Maximum climbing ability | 15% | |
| Internal turning radius | 0 | ||
| External turning radius | 1025 mm | ||
| Max. speed (rising – descending) | 0,2 m/s | ||
| Maximum translation speed | 5,5 km/h | ||
| Maximum translation speed at height | 1 km/h | ||
| N | Maximum pressure for wheel at full load* | 3,45 kN | |
| Work cycles (with fresh batteries) ** | 100 | ||
* Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).
** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.
Complies with European regulations for man-up forklift trucks. UNI EN ISO 3691-1.
| Maximum capacity control via relief valve | |
| Electronic inclinometer with anti-tip function | |
| Foot pedal for signaling the presence of man | |
| Potentiometer for adjusting the maximum translation on the edge of the basket | |
| Alarm acustic signal | |
| Motion buzzer | |

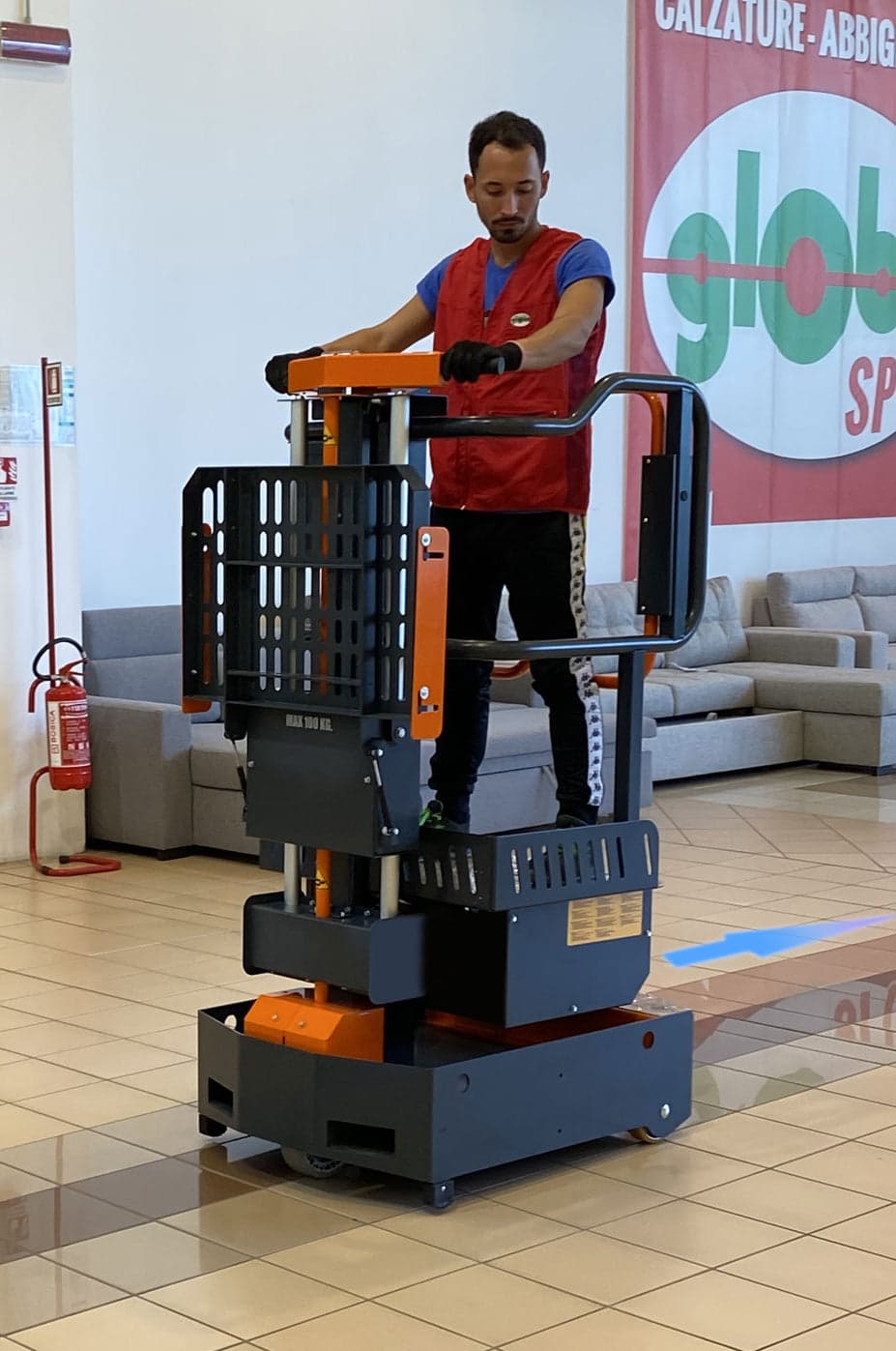

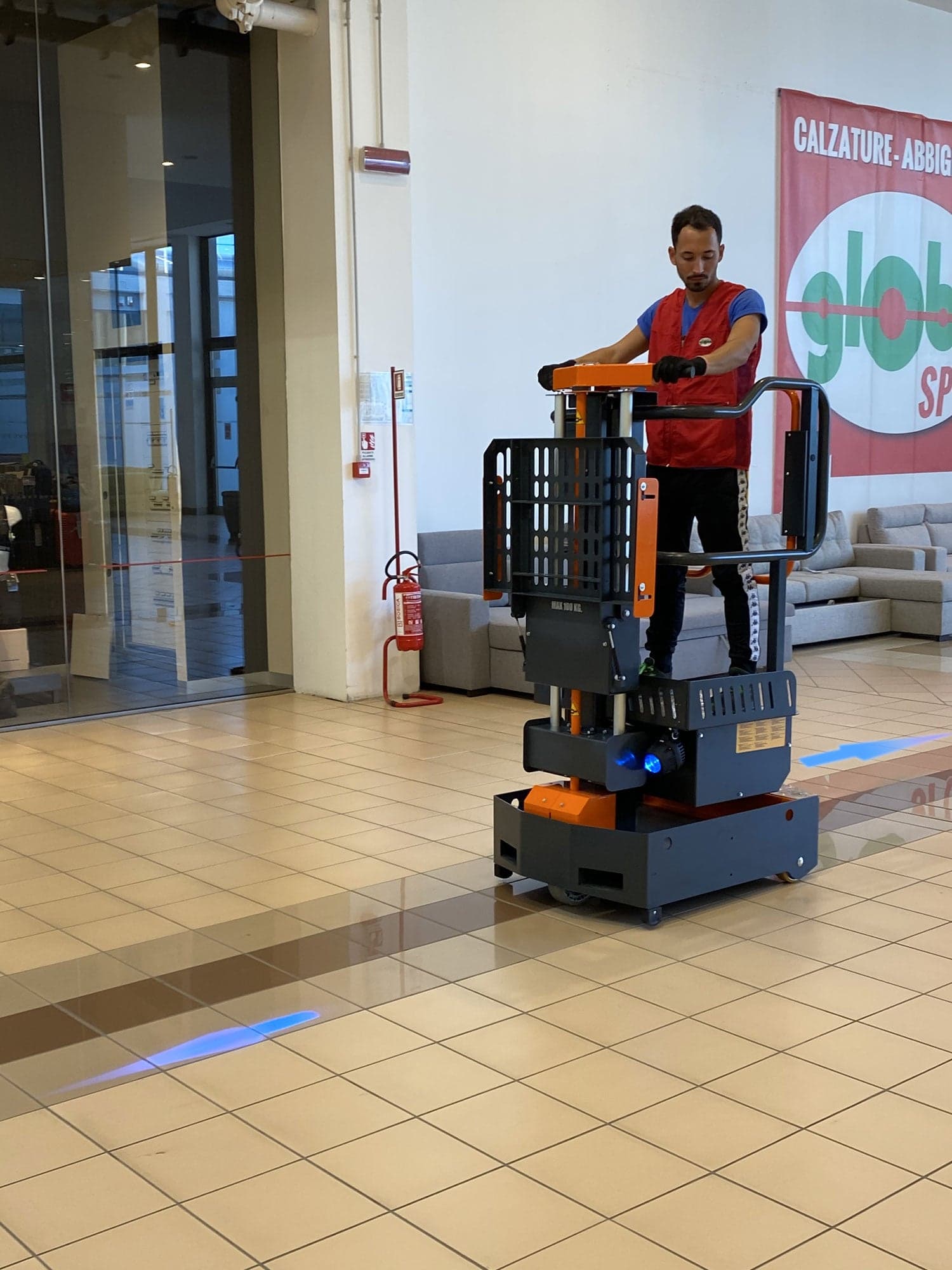

| Light movement indicator |
|
| Picking platform maximum capacity control with electronics on motor (Only on electrical platform) | |

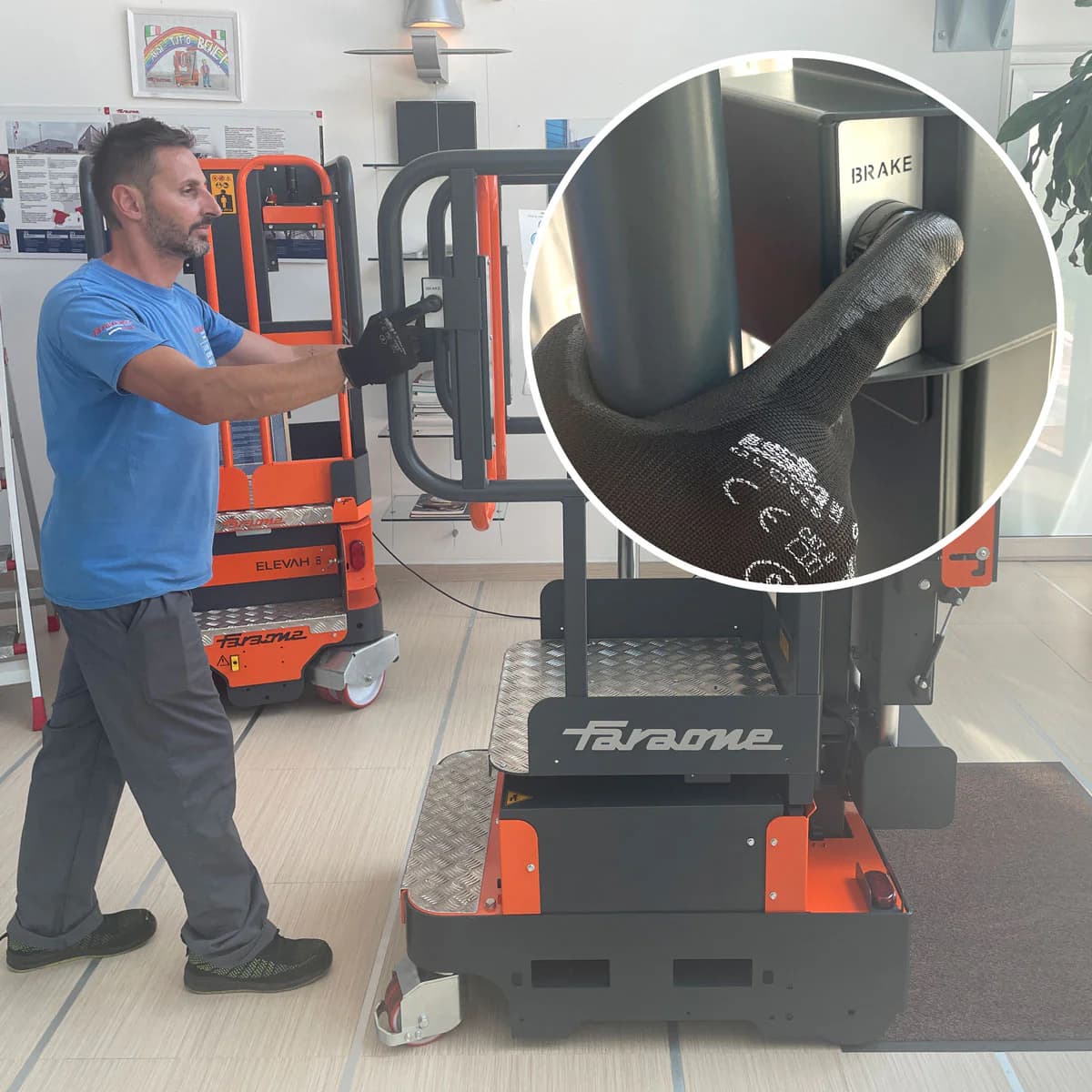

| Automatic electronic parking brake | |
| Horn |
|

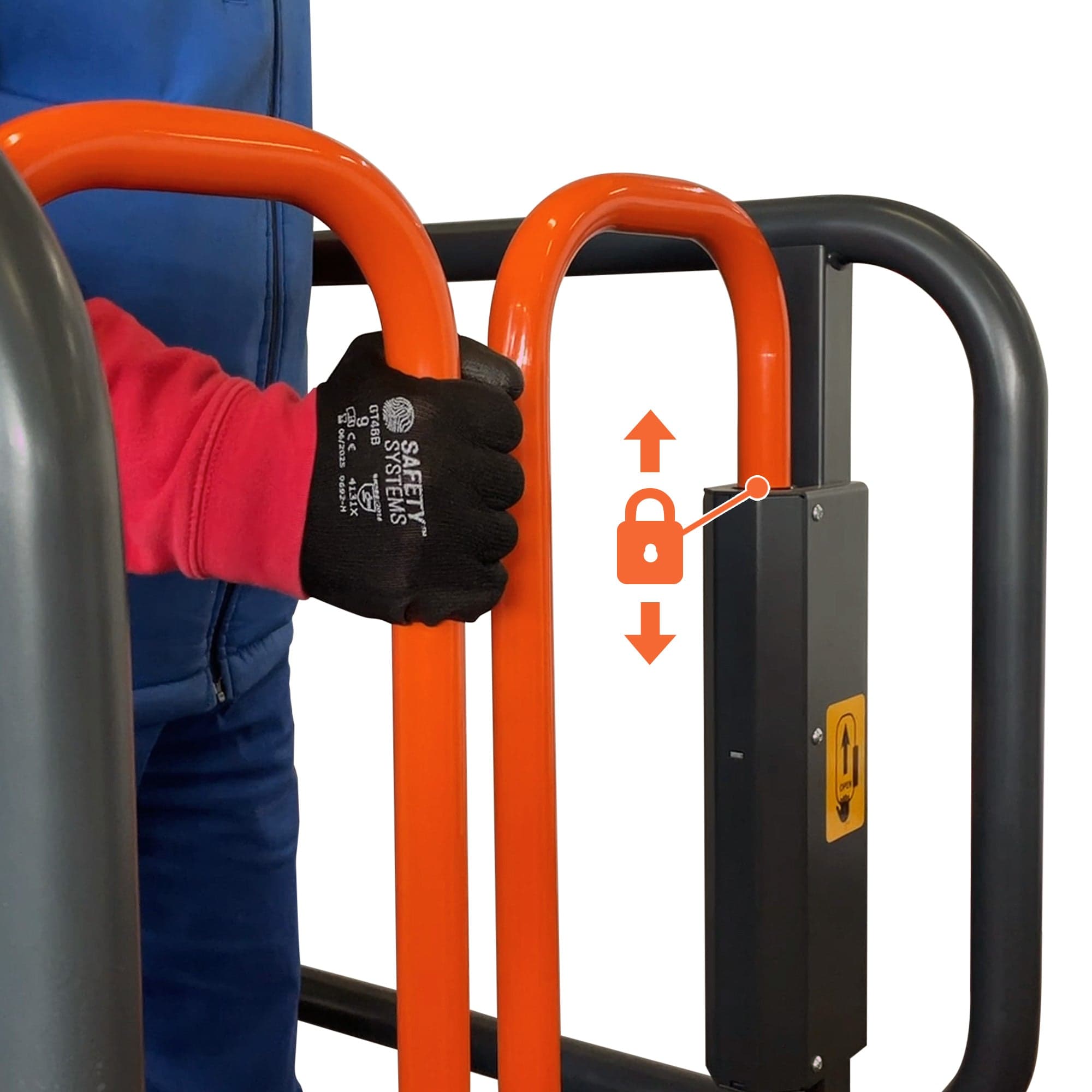

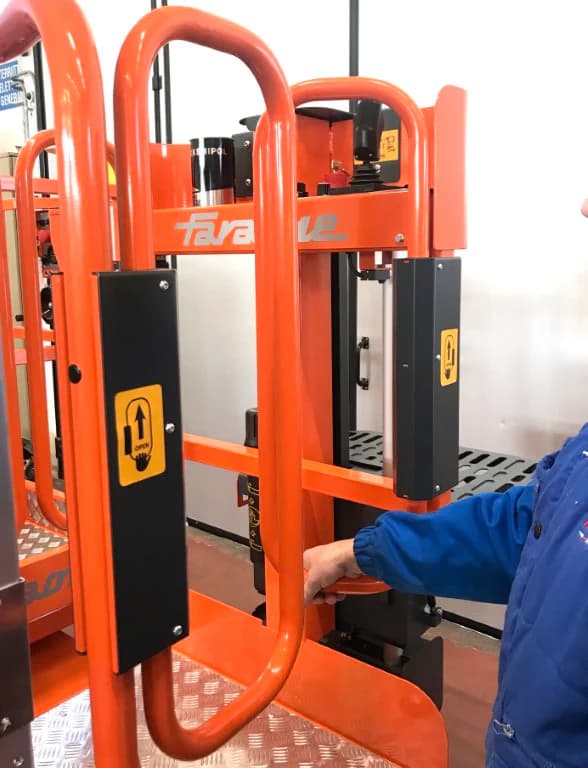

| 2-sash access doors to basket with closure control |

|
| Joystick with safety catch against accidental activation |
|
| IP65 protected drive wheels |
|
| Manually activated emergency descent of the basket to base |
|
| Proportional type self-propulsion |

|
| Lifting block with 80% batteries | |
| Hour meter and battery charge indicator on basket |
|
For more information on any of our products feel free to call us on 07403005485, or use our form and we'll be in touch as soon as possible.

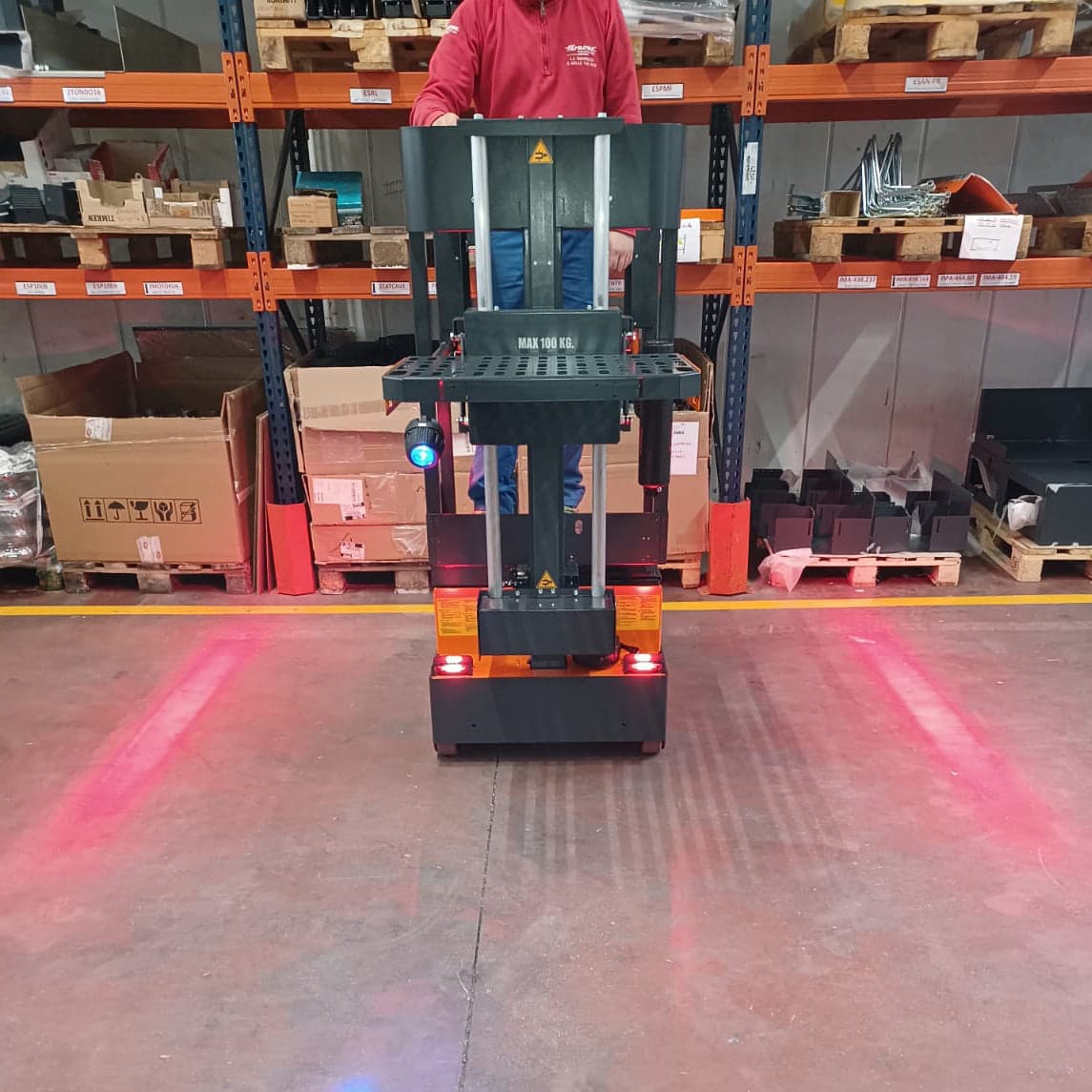

REDLIGHT1
E5MAN
BSA.E
65 RADAR 1B
65 RADAR 3
BLUESPOT1P
BLUESPOT2
E65 POM
PEVA3
65MPR
51 KEY
E5BLMA
40 KEY ACC
SP.TFL2
SP.TFL
E5PROPEPP
PARACO50
65.RUO2
65.ROU3
PCCUSB
PCC

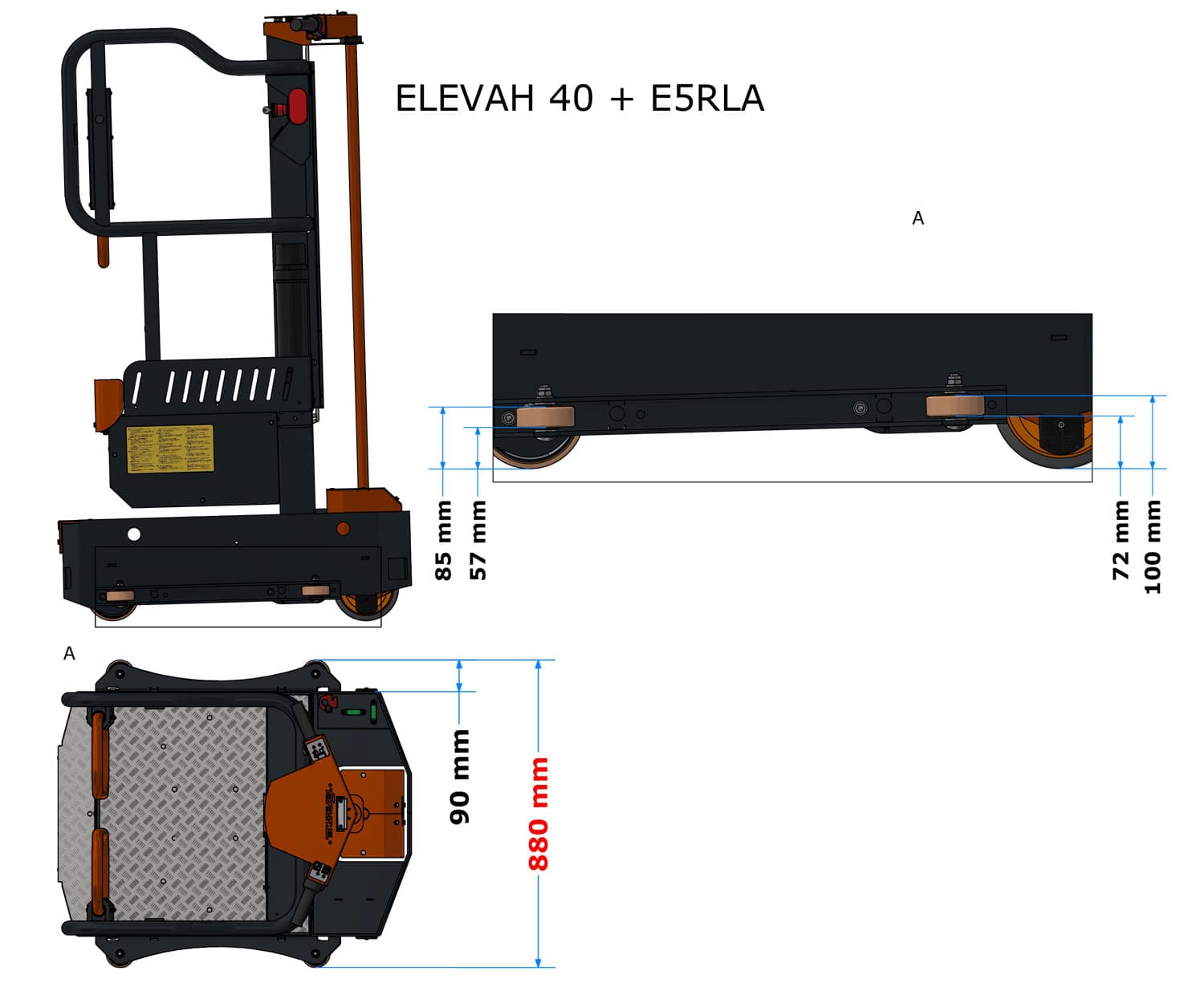

E5RLA ( I.880 )
RLA ( I.980 )

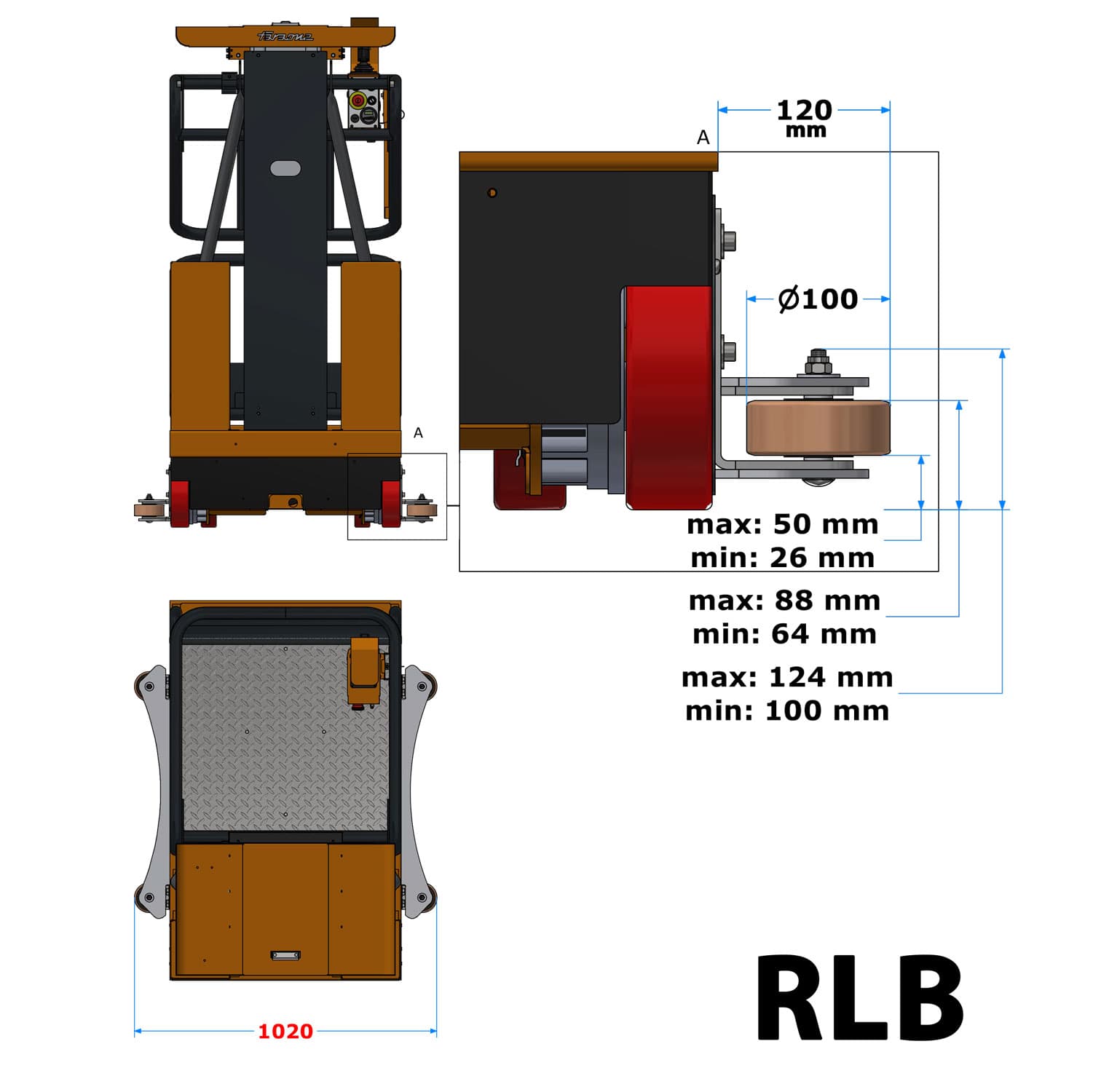

RLB ( l.1020 )
X COV
CL
E40PALLET
51 IN
IP65.MOVE
BSA
SCP
65 SCR
TA 7
BMA
BG
LITIO 4
E5 ZI.VE

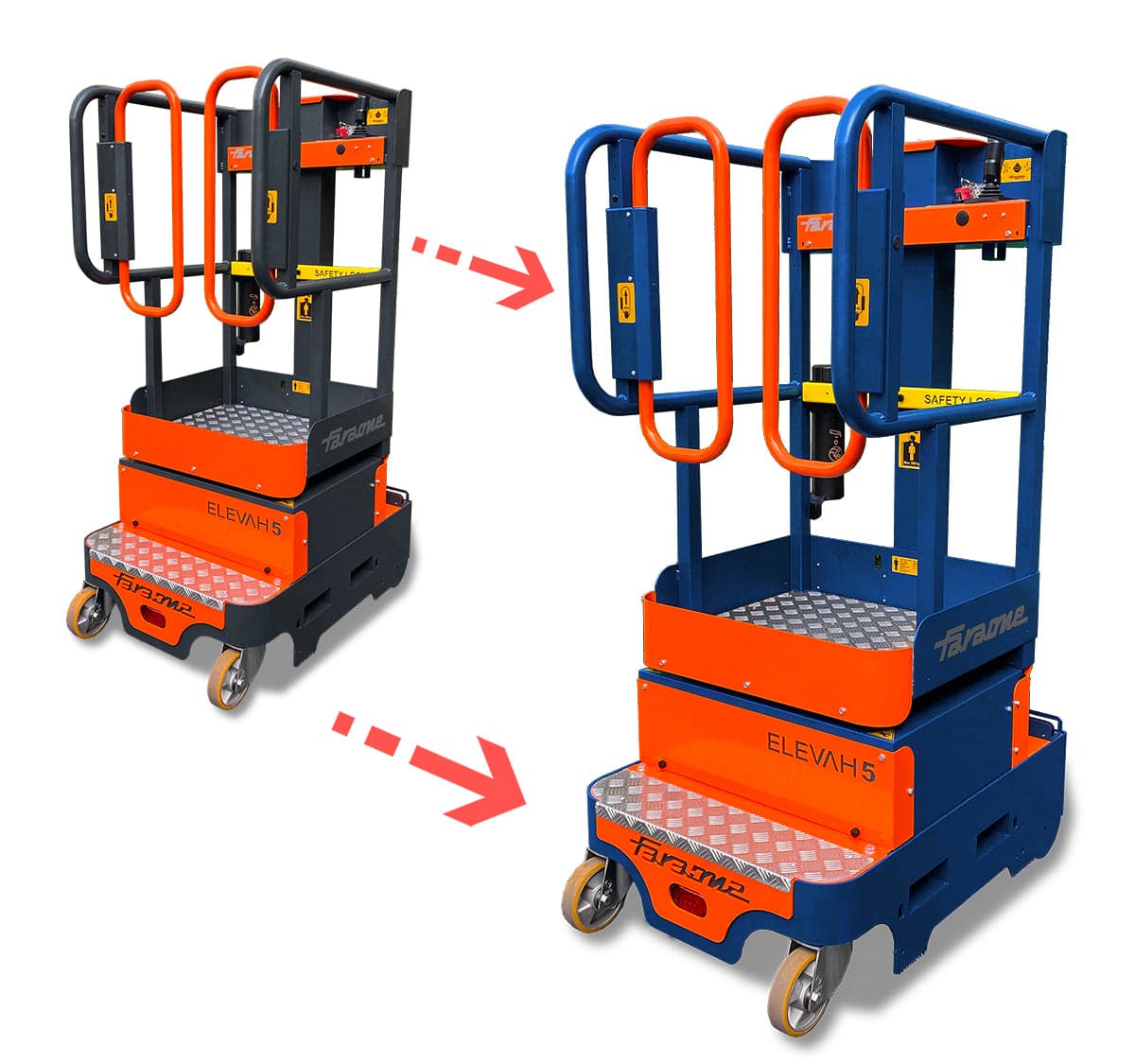

RAL1
