ELEVAH E5B

Name: E5B
Brand: ELEVAH
Availability: OutOfStock

Compact push around platform with automatic lifting

Info and prices

MAXIMUM WORK HEIGHT: 5.15 M

MEASUREMENTS: 70 X 98 CM H: 169 CM

MAXIMUM CAPACITY: 200 KG

WEIGHT OF THE MACHINE: 608 KG

ADJUSTMENT: MANUAL TRACTION AND ELECTRIC ELEVATION

STANDARD COLOURING: GREY AND ORANGE. CUSTOM COLOURS ON REQUEST.

SOME AREAS OF USE:

IDEAL FOR THE INDUSTRIAL SECTOR. MAINTENANCE, REPAIR AND CLEANING OF PRODUCTION SYSTEMS, LIGHTING SYSTEMS, VENTILATION SYSTEMS; ASSEMBLY OF MACHINERY OR PRODUCTION SYSTEMS

Technical data Gallery Standard equipment

READ DESCRIPTION Download data sheet Increase security

DESCRIPTION

Elevah E5B is the push around platform with electric lifting system that allows working up to 5,15 m.

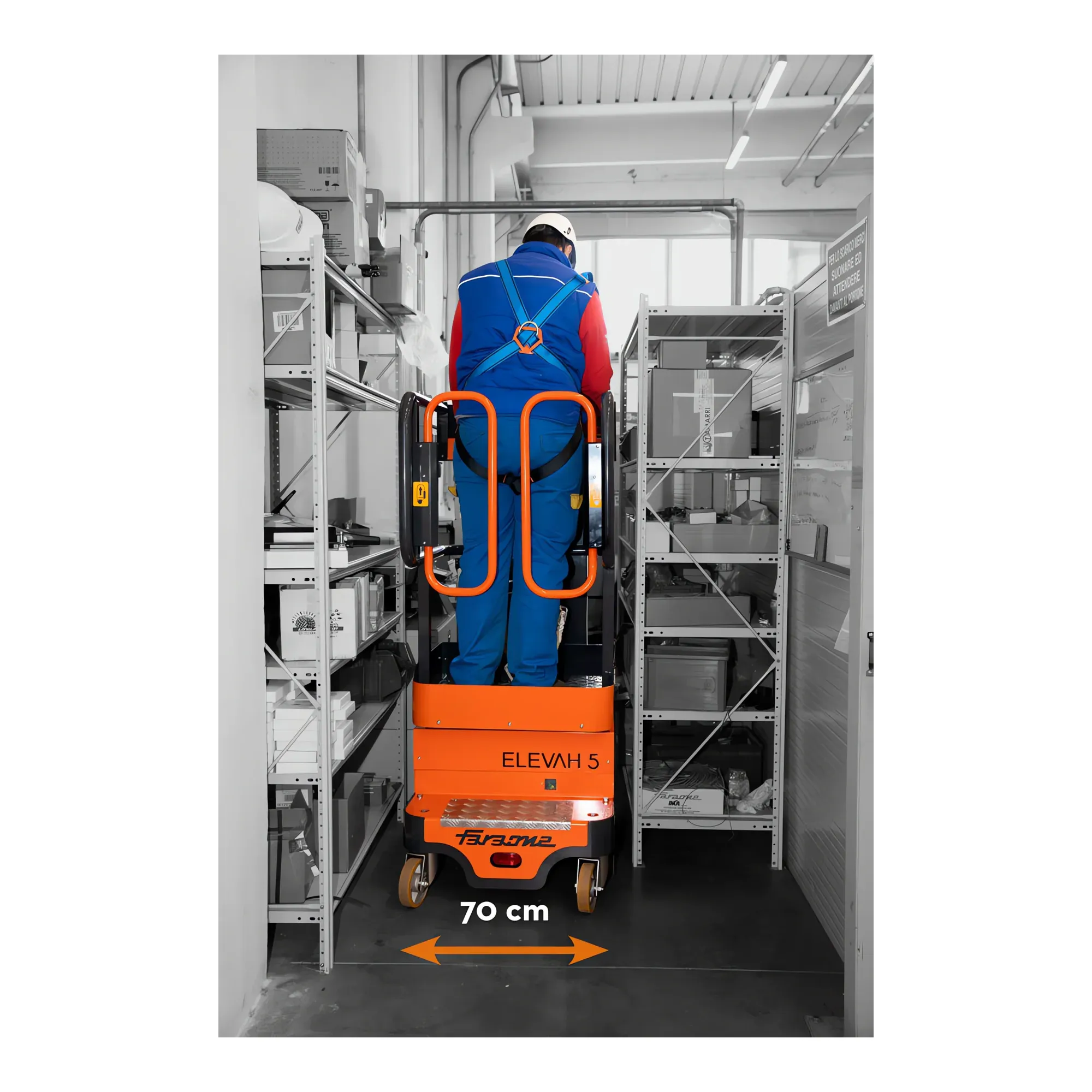

Like all the platforms of the E5 line, it is characterized by its compactness, thanks to its width of only 70 cm, and its low weight, which makes it extremely easy to move and can be used even on more delicate surfaces.
Using it is very simple: just place the platform in the desired point, turn the lever and lift up to the desired height. The machine can be moved by pressing the button located near the pick-up point for the transportation. By pressing the button, the parking brakes are deactivated and then automatically reactivated as soon as the button is released.

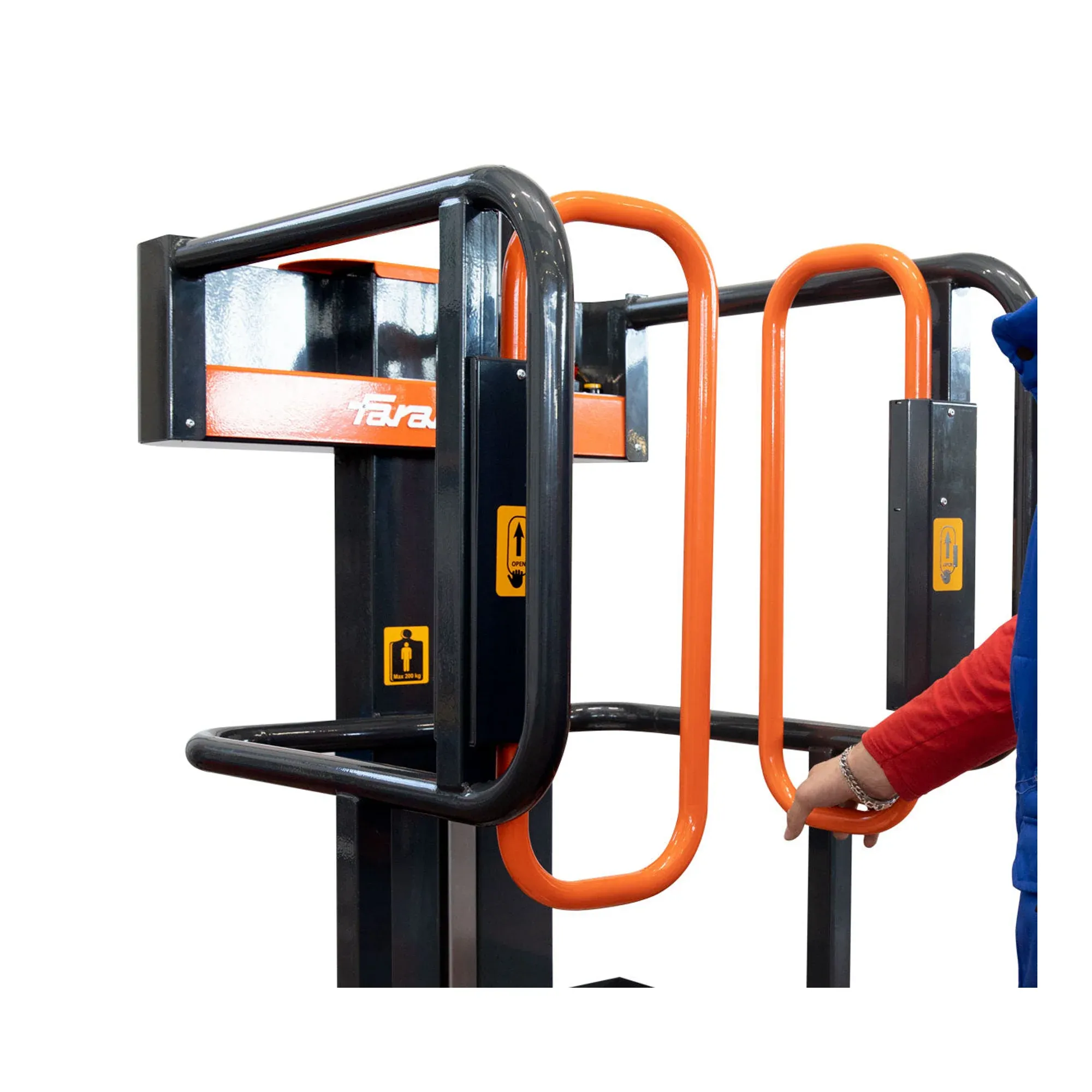

The basket has a comfortable and safe access and allows the operator to work at height protected on all sides, thus minimizing the risk of injury.
Elevah E5B allows you to optimize and make work safer, avoiding the risk of accidents and injuries. It can be used in all places that require maintenance and indoor installations. In the equipment and accessories section, you will find the list of standard components and accessories to customize Elevah E5B and adapt it to your needs.

FRONT, REAR AND CEILING ANTICOLLISION RADAR
BASKET LOCK Foot height max. 1.95 m
BLUESPOT1 and BLUESPOT2 (driving direction indicator light)
ANTI-CRUSHING PROTECTION UNDER THE BASKET

FURTHER OPTIONALS

MANUAL REMOVABLE STORAGE TRAY

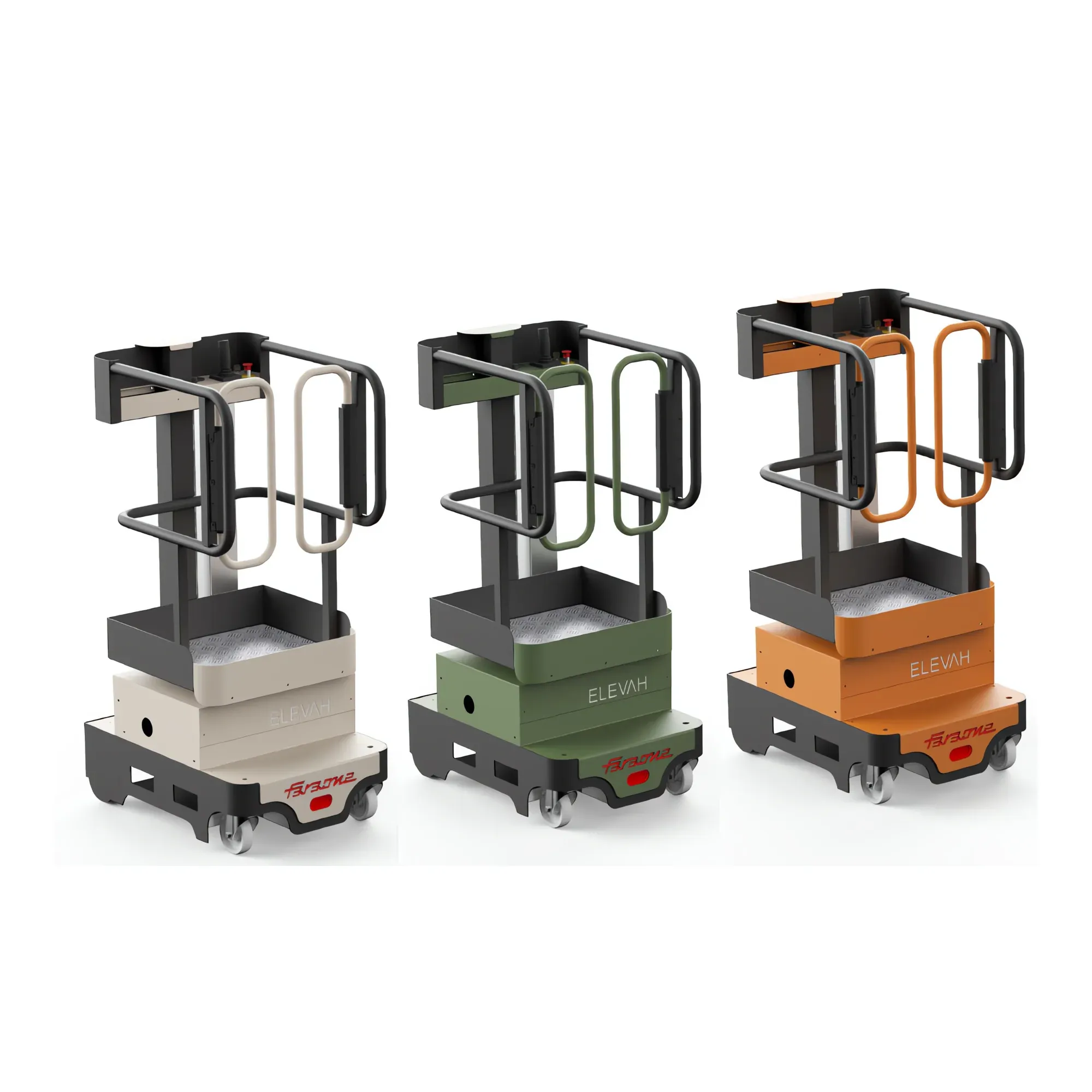

DIFFERENT COLORS OF THE MACHINE ON REQUEST
GALVANIZING TREATMENT

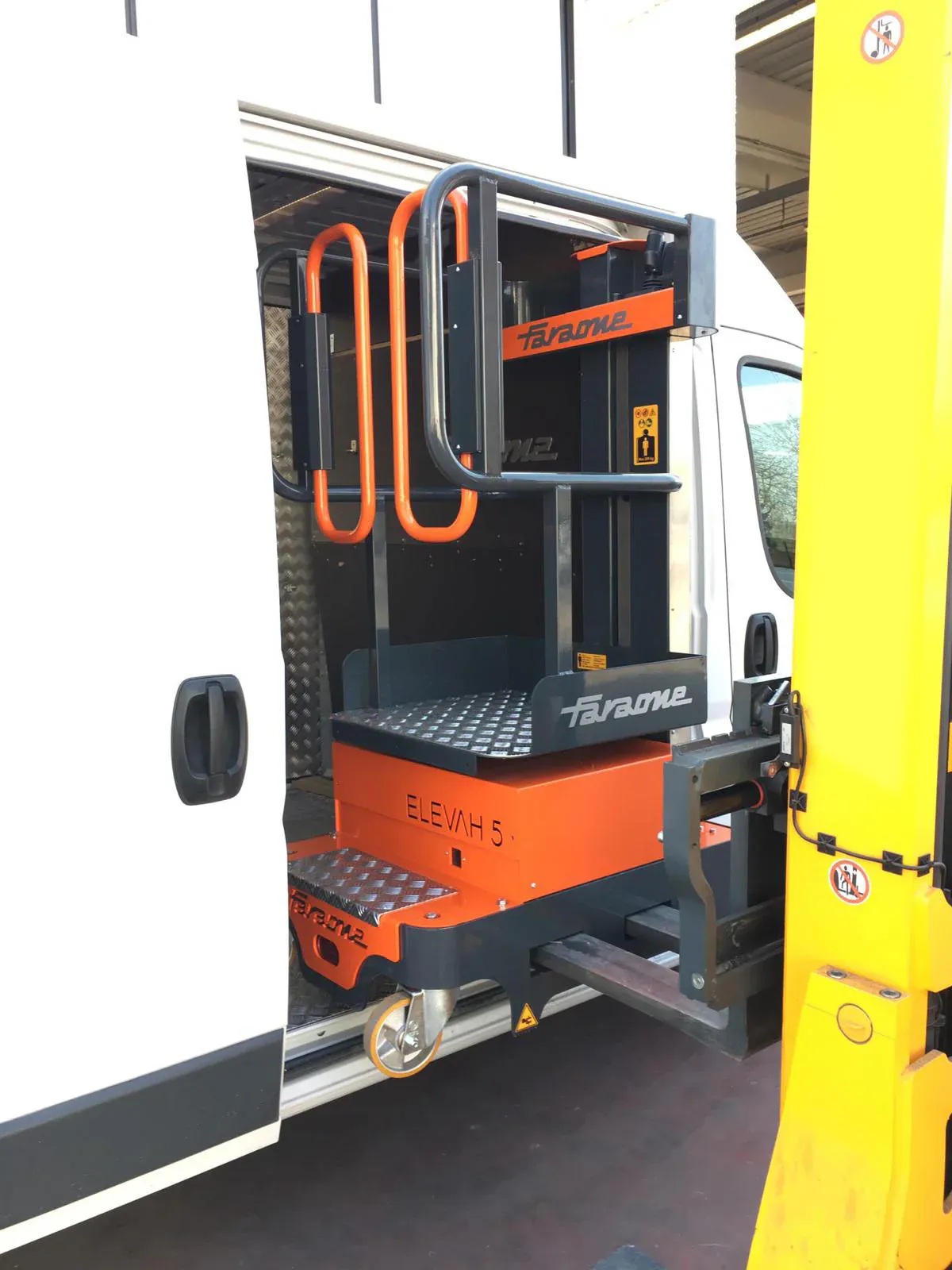

VAN LOADING AND UNLOADING SYSTEM

Battery charger with retractable cable as standard (Not present if the optional BKIT is selected)

The machine can work at temperatures between -10° C and +40 °C

TECHNICAL DATA

PERFORMANCE
Max. working height		5,15 m
Max capacity		200 kg
Number of people		1
Use		Internal
A	Closed machine height	1690 mm
B	Min. height from the ground*	290 mm
C	Maximum platform height	3150 mm
D	Base overall dimensions	980 mm
E	Base overall dimensions	700 mm
F	Cage dimensions	685 mm
G	Cage dimensions	600 mm
Machine weight		608 kg
Drive wheels dimension		Ø 160 x 50 mm
Swivel wheels dimensions		Ø 150 x 40 mm
Power supply		Electrical 24 V
Batteries		2 Trojan Lead-Acid 12V 105 Ah
Battery charger		110V – 220V 50/60HZ
H	Maximum climbing ability	15%
Internal turning radius		0
Max. speed (rising – descending)		0,2 m/s
I	Maximum pressure for wheel at full load**	2,85 kN
Work cycles (with fresh batteries) ***		100

* There is an intermediate step.

** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

*** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.

Compliant with EN280 rule.
Approved for indoor use or outdoor use in the absence of wind.
