ElevahE5 Move T.FL

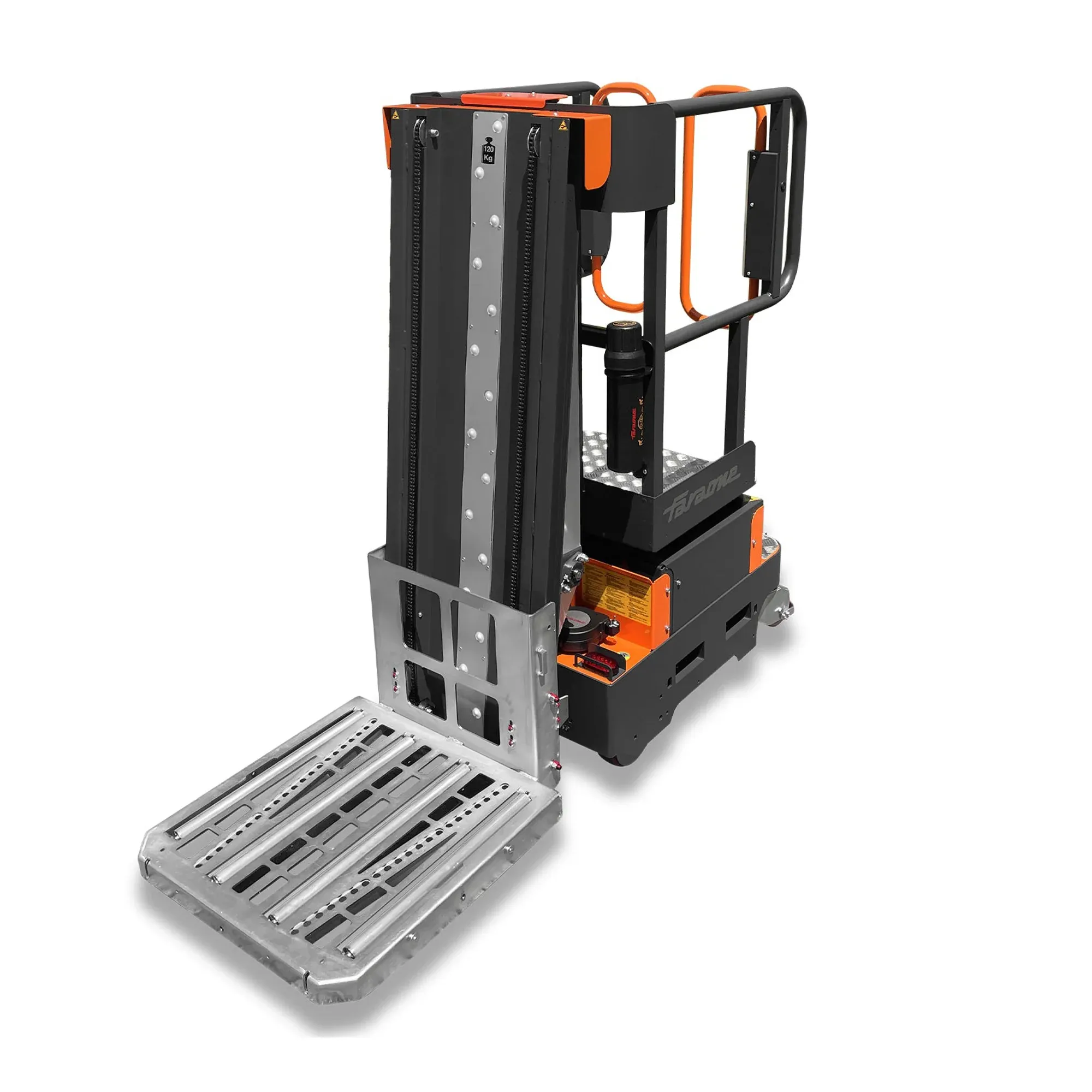

A special stock picker with a tool to lift materials from the ground.
Specifications
Maximum Work Height
5.15 M
Measurements
70 X 189 CM H:169 CM
Maximum Capacity
220 KG (operator + load)
Weight of Machine
820 KG
Platform Load Capacity
Load up to 100 KG
Adjustment Type
Electric
Standard Colouring
Grey and orange. Custom colours on request.
Areas of Use
Picking and/or stocking of products in warehouses, shops, retailers (electrical appliances, bicycles, e-commerce retailers)
Elevah E5 T.FL the platform designed for picking, storage, organization and restocking of warehouses and shelves and logistics.
This platform allows to work in total safety up to 5.15 m. Thanks to Elevah E5 T.FL, activities of the operator can be streamlined and the efforts reduced.

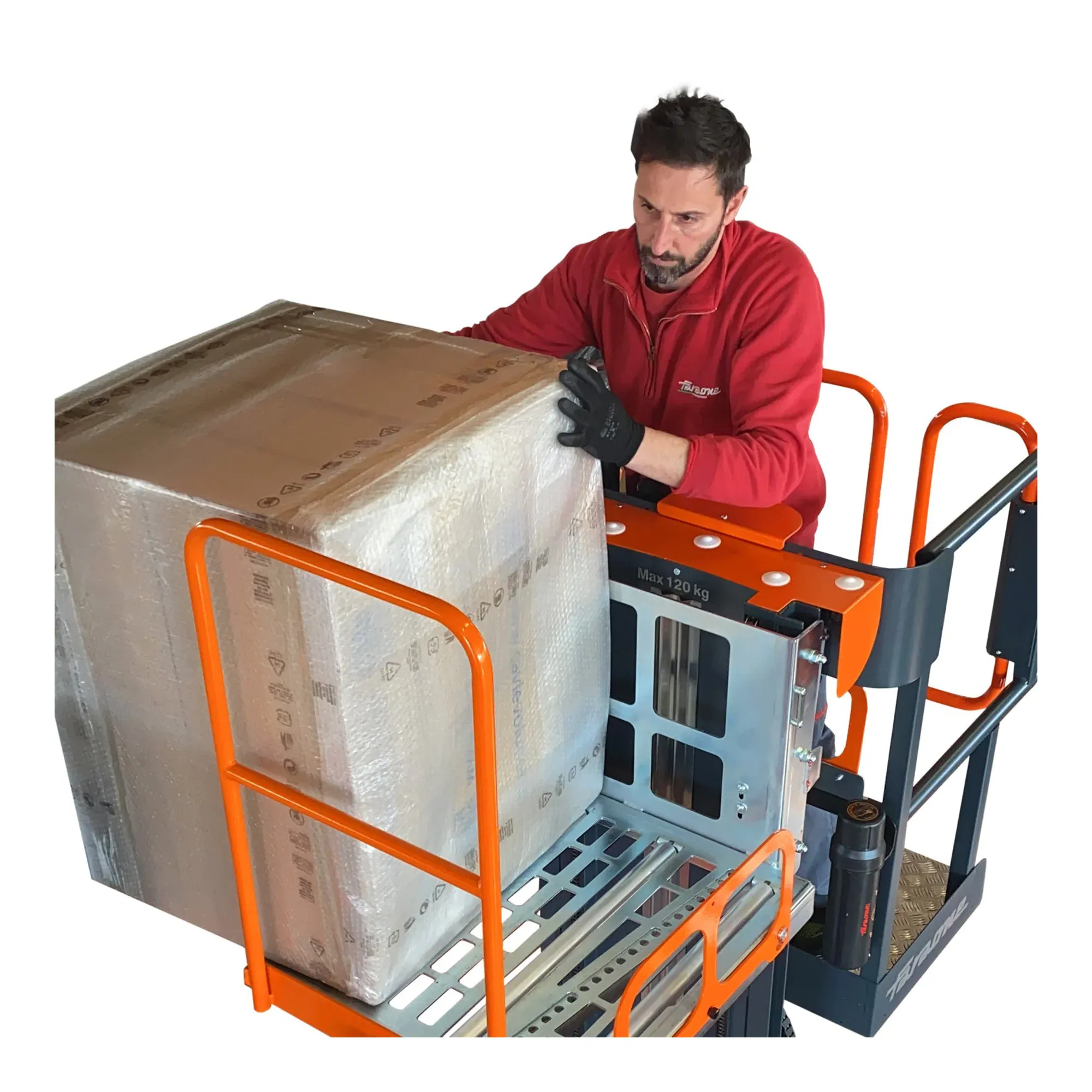

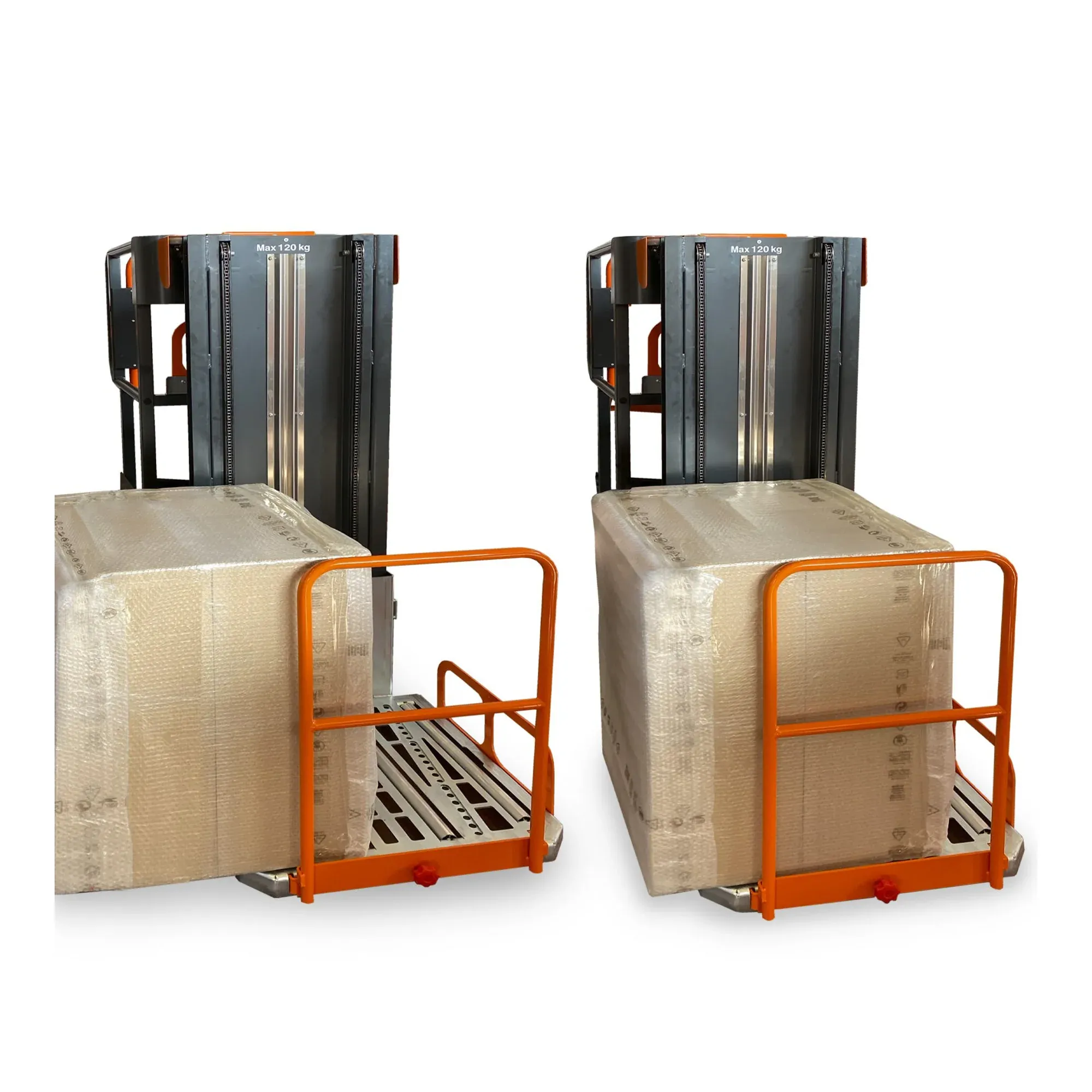

The special tool is designed to lift up to 100 kg directly from the ground and it is electrically adjustable, thus the goods can be brought closer or moved further away and the operator can easily keep an ergonomic position during stocking operations. The picking tool is also provided with sliding rollers to facilitate the handling of the goods.
The reduced size (only 74 cm wide) make this platform extremely handy and easy to store.
The zero turning radius allows to work quickly and comfortably even in the narrowest areas and to drive comfortably with little room for maneuver.
Easy to move, it is self-propelled in height and can be driven with just one hand thanks to the joystick.
In the equipment and accessories section, you can find the list of standard components and accessories to customize Elevah E5 T.FL.
- LOCK TO AVOID ACCIDENTAL OPENING
- SPEED CONTROL: speed limiter with basket on the ground
- FRONT, REAR AND CEILING ANTI-COLLISION RADAR
- BASKET HEIGHT BLOCK - Maximum height 1.95 m
- ANTI-CRUSHING PROTECTION UNDER THE BASKET
MORE OPTIONS
- DIFFERENT COLORING OF THE MACHINE UPON REQUEST
- DIRECTIONAL LOCK OF THE SWIVEL WHEELS
- LOADING AND UNLOADING SYSTEM FROM THE VAN
Standard battery charger with retractable cable (Not present if the optional BKIT is selected)
The machine can work at temperatures between -10° C and +40 °C
General
- Max. working height: 5.15 m
- Max. capacity: 220 kg
- Number of people: 1
- Use: Internal – External
Dimensions
- A — Closed machine height: 1690 mm
- B — Minimum platform height: 289 mm
- C — Maximum platform height: 3150 mm
- D — Base overall dimensions: 1890 mm
- E: 700 mm
- F: 1160 mm
- G — Cage dimensions: 685 mm
- H: 600 mm
- Machine weight: 820 kg
Wheels
- Drive wheels dimension: Ø 186 × 60 mm
- Swivel wheels dimensions: Ø 150 × 40 mm

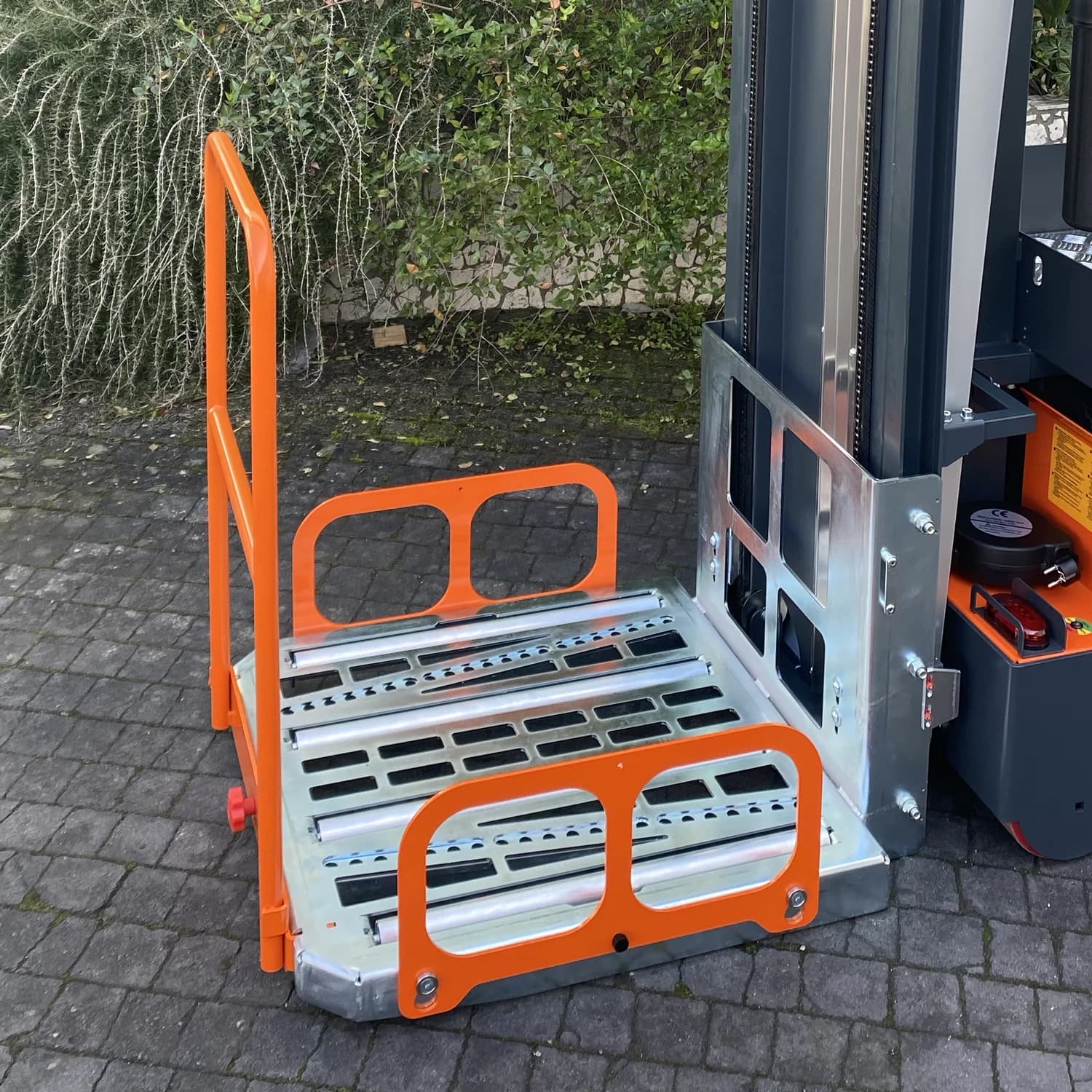

Picking Platform
- Adjustment: Electrical
- J — Stroke: 1170 mm
- Minimum height from the ground: 100 mm
- Maximum height from the ground: 3860 mm
- I — Dimensions: 700 mm
- L: 700 mm
- Capacity: 120 kg
Performance
- Power supply: Electrical
- Batteries: Lead-Acid 12V 105 Ah
- Battery charger: 110V – 220V
- Climbing ability at height: 2.5%
- M — Maximum climbing ability: 15%
- Internal turning radius: 0
- External turning radius: 1025 mm
- Max. speed (rising – descending): 0.2 m/s
- Maximum translation speed: 5.5 km/h
- Maximum translation speed at height: 1 km/h
- N — Maximum pressure for wheel at full load*: 3.45 kN
- Work cycles (with fresh batteries)**: 100
Notes
* Maximum pressure measured when the weight of the platform plus maximum basket load is fully distributed on one side (totally asymmetric load).
** A work cycle = 20 m self-propelled movement + full ascent + full descent + adjustment of the loading platform.
Complies with European regulations for man-up forklift trucks: UNI EN ISO 3691-1.
Safety Equipment
- Maximum capacity control: Via relief valve
- Electronic inclinometer: With anti-tip function
- Foot pedal: Signals operator presence
- Potentiometer: Adjusts maximum translation at the basket edge
- Acoustic alarm signal
- Motion buzzer
- Light movement indicator
- Picking platform capacity control: Electronic motor control (only on electrical platform)
- Automatic electronic parking brake
- Horn
- 2-sash access doors to basket: With closure control
- Joystick safety: Safety catch to prevent accidental activation
- Drive wheels protection: IP65
- Emergency descent: Manually activated, basket lowers to base
Ergonomics and Functionality Equipment
Electronics, Power Supply and Batteries Equipment
- Self-propulsion: Proportional
- Lifting block: Activates at 80% battery level
- Hour meter: Located on basket
- Battery charge indicator: Located on basket
Safety Devices
Picking Platform
Ergonomic and Functional Equipment
Batteries
Colours
