Max. working height | 4,9 m | ||
---|---|---|---|
Max capacity | 150 kg | ||
Number of people | 1 | ||
Use | Internal | ||
A | Closed machine height | 1730 mm | |
B | Minimum platform height | 289 mm | |
C | Maximum platform height | 2916 mm | |
D | Base overall dimensions | 980 mm | |
E | 700 mm | ||
G | Cage dimensions | 1000 mm | |
F | 690 mm | ||
Machine weight | 720 kg | ||
Drive wheels dimension | Ø 186 x 60 mm | ||
Swivel wheels dimensions | Ø 150 x 40 mm | ||
Adjustment/extraction | Manual | ||
J | Stroke | 600 mm | |
Minimum extension | 1000 mm | ||
Maximum extension | 1600 mm | ||
Power supply | 24 V | ||
Batteries | 2 Trojan Lead-Acid 12V 105 Ah | ||
Battery charger | 115V – 230V 50/60HZ | ||
M | Maximum climbing ability | 15% | |
Climbing ability at height | 2,5% | ||
Internal turning radius | 0 | ||
External turning radius | 1080 mm | ||
Max. speed (rising – descending) | 0,2 m/s | ||
Maximum shifting speed | 5,5 km/h | ||
Maximum shifting speed at height | 1 km/h | ||
N | Maximum pressure for wheel at full load** | 3 kN | |
Work cycles (with fresh batteries) *** | 100 |
* There is an intermediate step.
** Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).
*** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.
Compliant with EN280 rule.
Approved for indoor use or outdoor use in the absence of wind.
Maximum capacity control via relief valve | |
Electronic inclinometer with anti-tip function | |
Potentiometer for adjusting the maximum translation on the edge of the basket | |
Alarm acustic signal | |
Motion buzzer | |
Light movement indicator |
![]() |
Automatic electronic parking brake | |
Horn |
![]() |

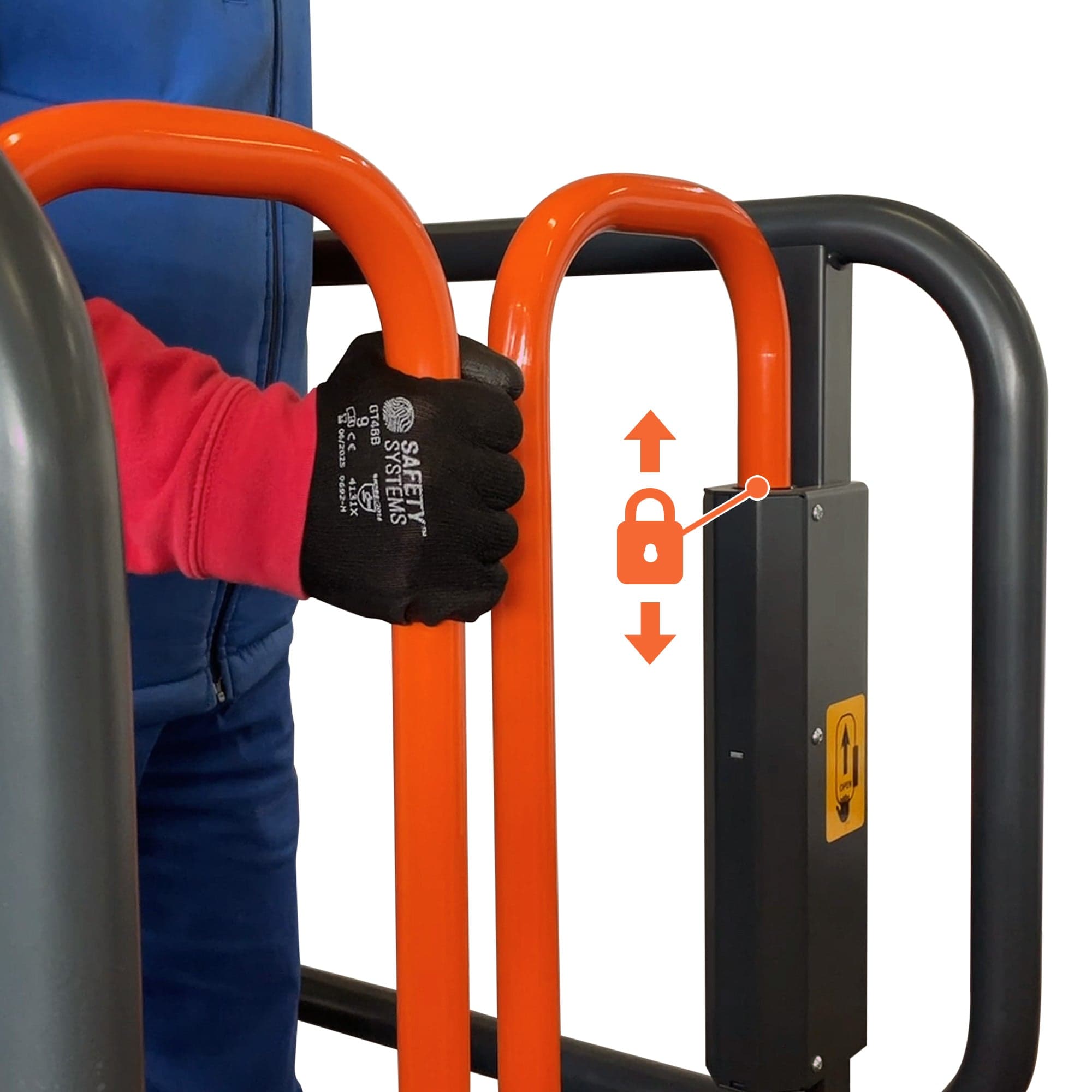

2-sash access doors to basket with closure control |
![]() ![]() |

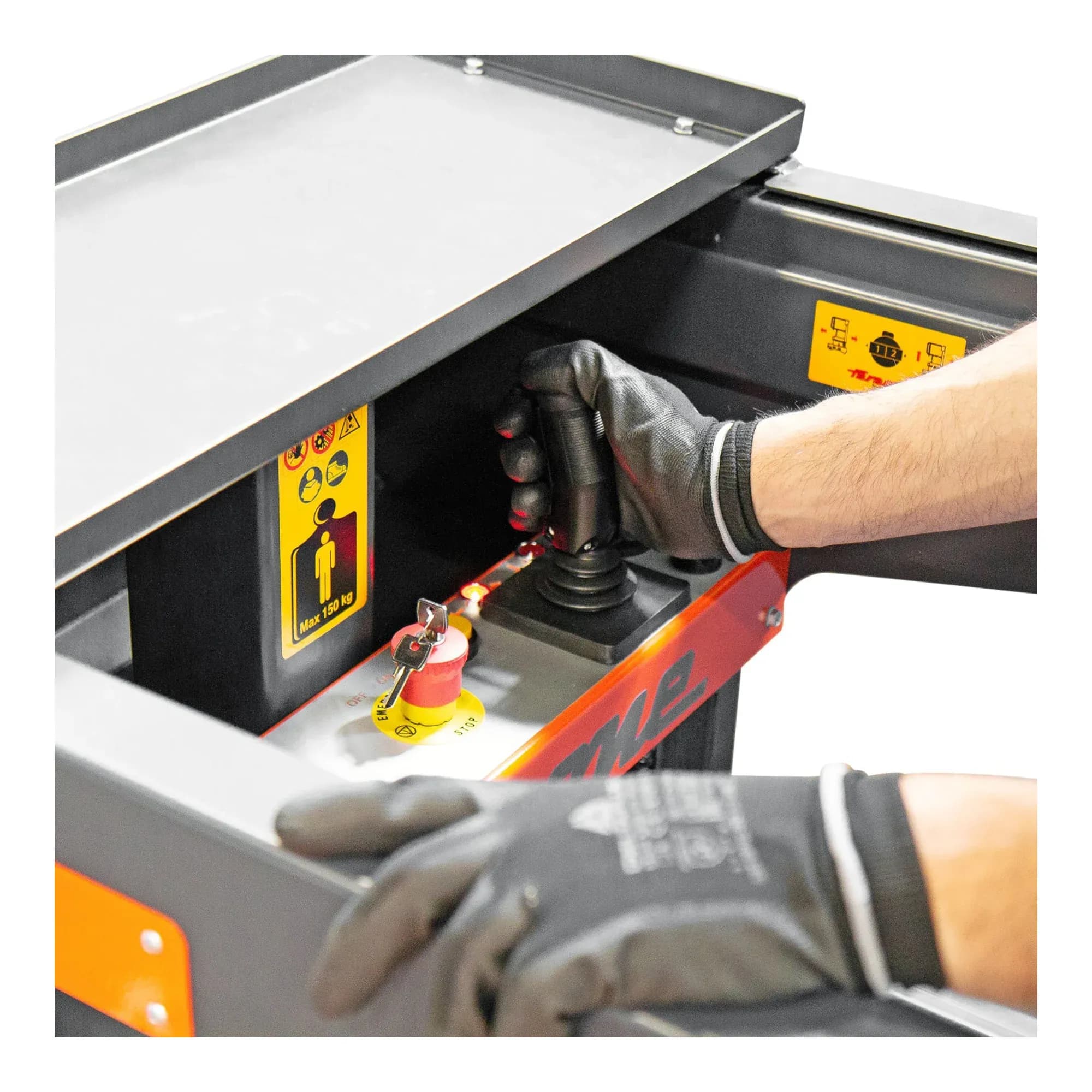

Joystick with safety catch against accidental activation |
![]() |
IP65 protected drive wheels |
![]() |
Manually activated emergency descent of the basket to base |
![]() |
Storage shelf on the column |
Proportional type self-propulsion |
![]() ![]() |
Proportional basket lifting |
![]() |
Lifting block with 80% batteries | |
Hour meter and battery charge indicator on basket |
![]() |
Multi-voltage and multi-frequency battery charger 6A - 115V - 230V - 50/60Hz. |
![]() |
