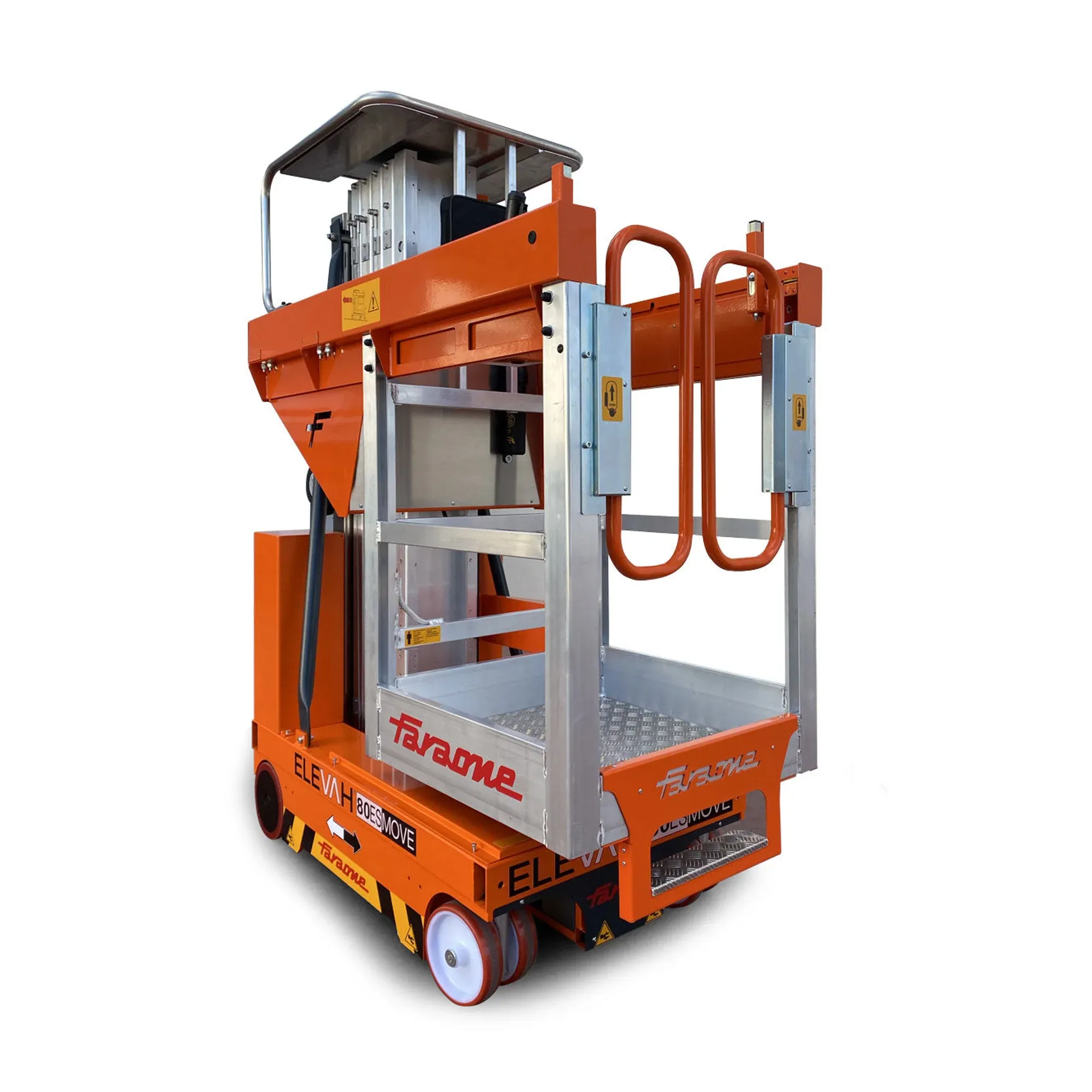

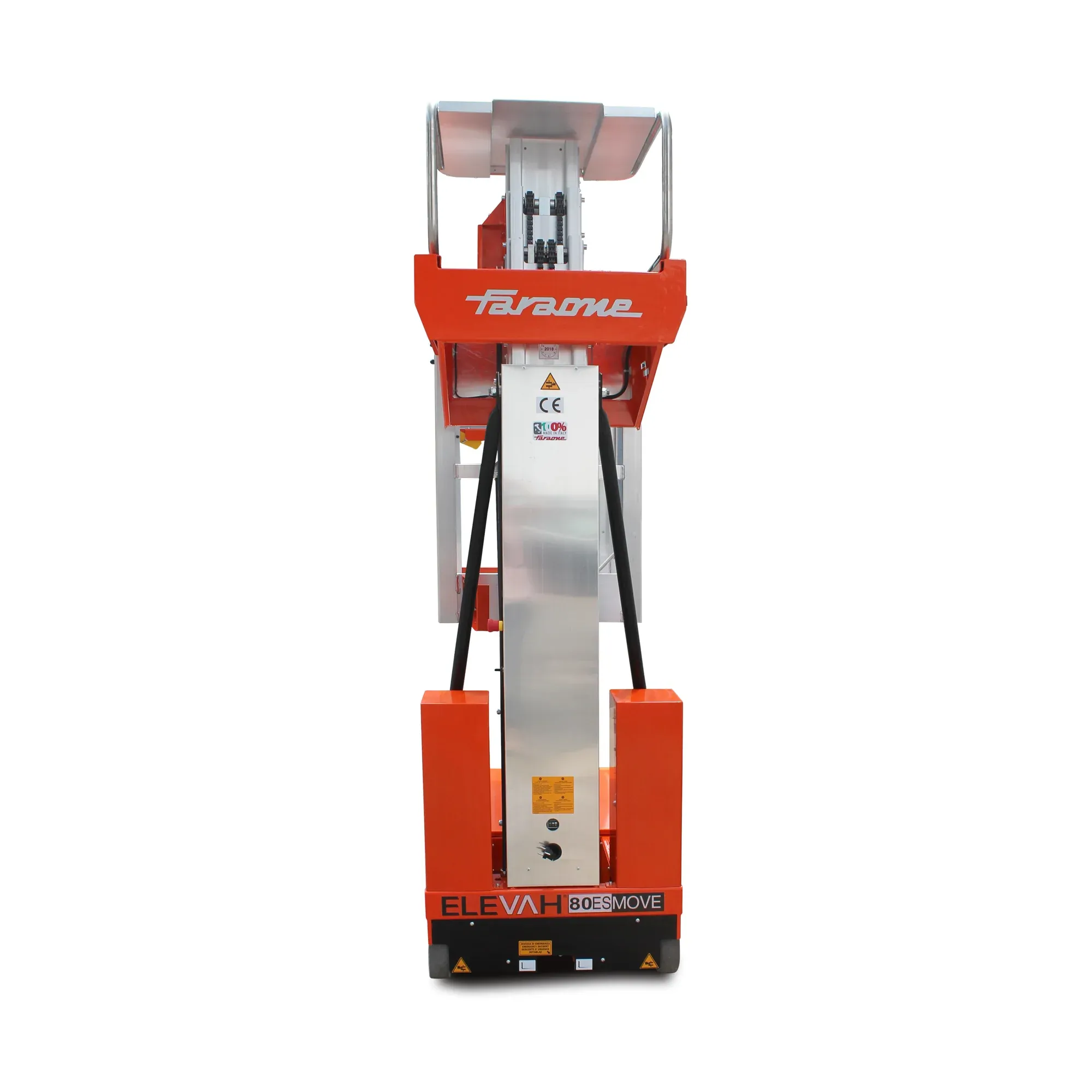

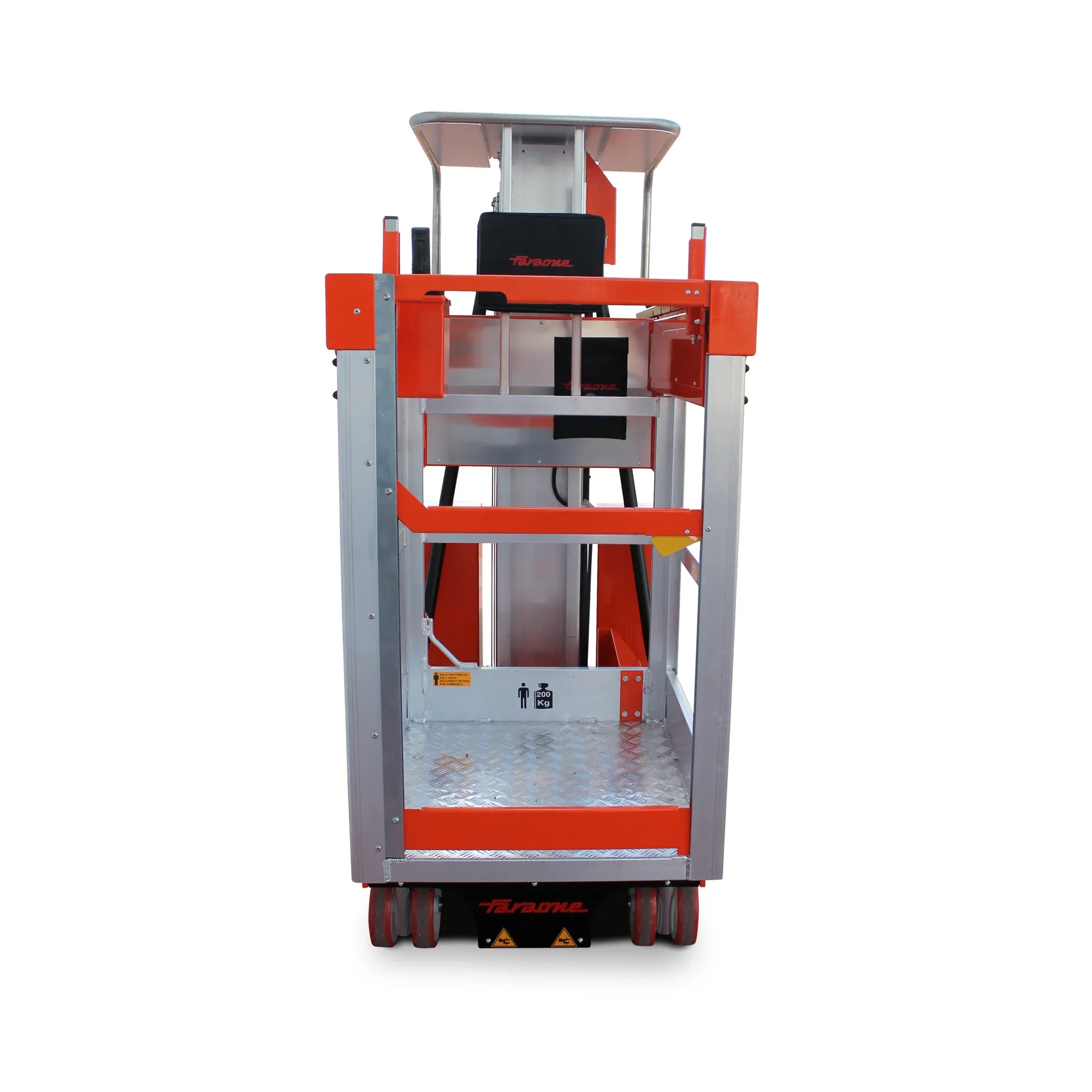

Elevah80 ES Move
Self-propelled platform with electric elevation and 115 cm manually extendable basket for maintenance and repair work.
Specifications
Maximum Work Height
7.56 M
Measurements
78 X 153 CM H: 199 CM
Maximum Capacity
200 KG
Weight of Machine
1050 KG
Standard Colouring
Grey and orange. Custom colours on request.
Areas of Use
Ideal for food processing, automotive, aviation, textiles, engineering, etc. Maintenance, repair and cleaning of production systems, lighting systems, ventilation systems; assembly of machinery or production systems
CAGE EXTENSION:
Up to 115 CM
The Elevah 80 ES Move is a compact platform with an extendable basket that allows you to reach a height of 7.56 m in total safety. An ideal solution for plant, production lines and Industry 4.0.

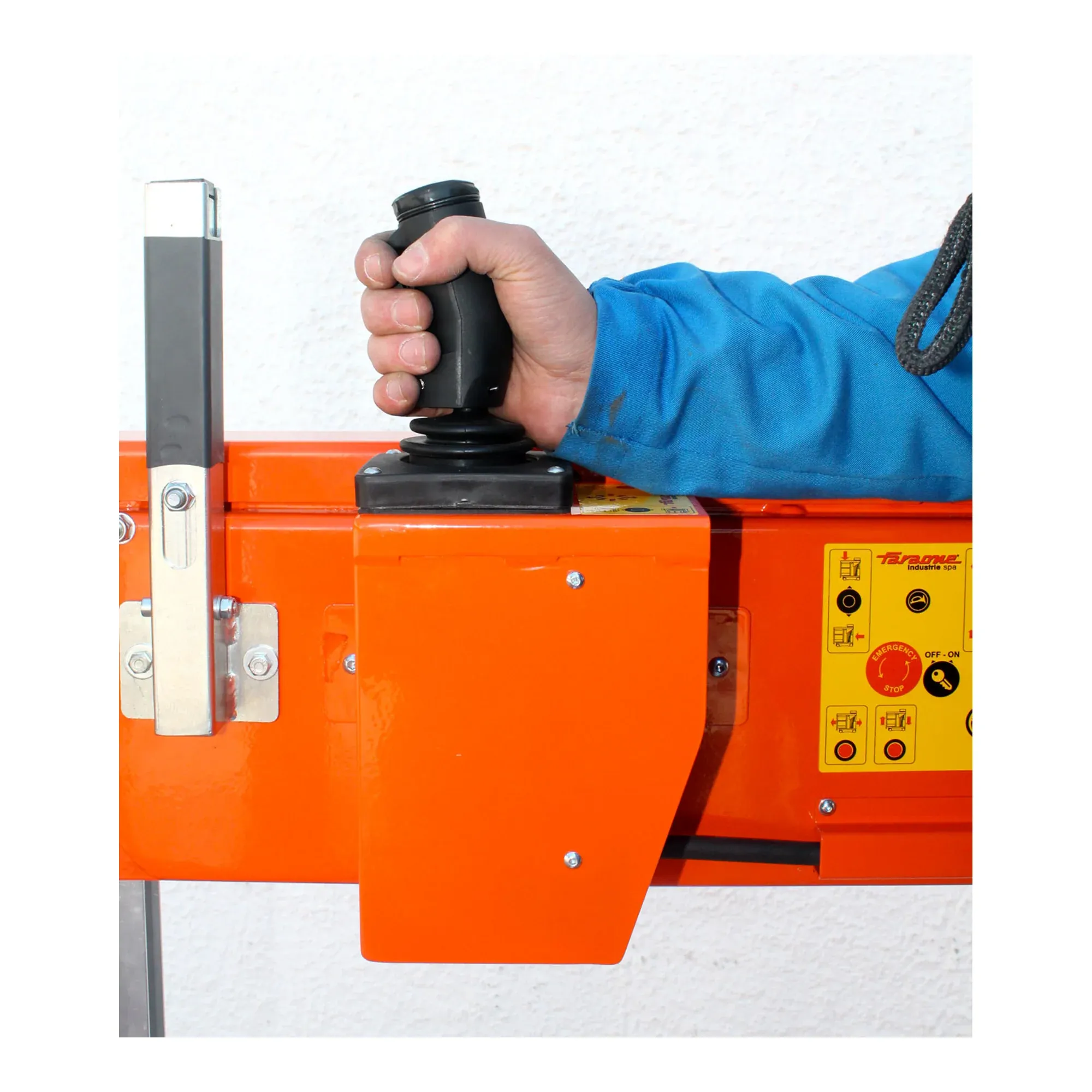

Its small size (only 78x153cm) and the compact dimension allow the operator to move it easily even in the narrowest spaces. Easy and comfortable to maneuver thanks to the joystick and zero turning radius.
The basket extends manually up to 115 cm, making it ideal for carrying out maintenance and repair work in industrial environments, on machinery, inside shops or shopping centers and in places where the are low-level obstacles to overcome.
In the equipment and accessories section, you will find a list of standard components and accessories to customize the Elevah 80 ES Move and adapt it to your needs.
- FRONT, REAR AND CEILING ANTI-COLLISION RADAR
- BLUESPOT1 AND BLUESPOT2 (driving direction signalling light)
- ANTI-CRUSHING PROTECTION UNDER THE BASKET
MORE OPTIONAL
- DIFFERENT COLORING OF MACHINE UPON REQUEST
- DIRECTIONAL LOCKING OF SWIVEL WHEELS
- TRUCK LOADING AND UNLOADING SYSTEM
Standard charger with retractable cable (Not included if the BKIT option is selected)
The machine can work at temperatures between -10° C and +40 °C
General
- Max. working height: 7.56 m
- Max. capacity: 200 kg
- Number of people: 1
- Use: Internal

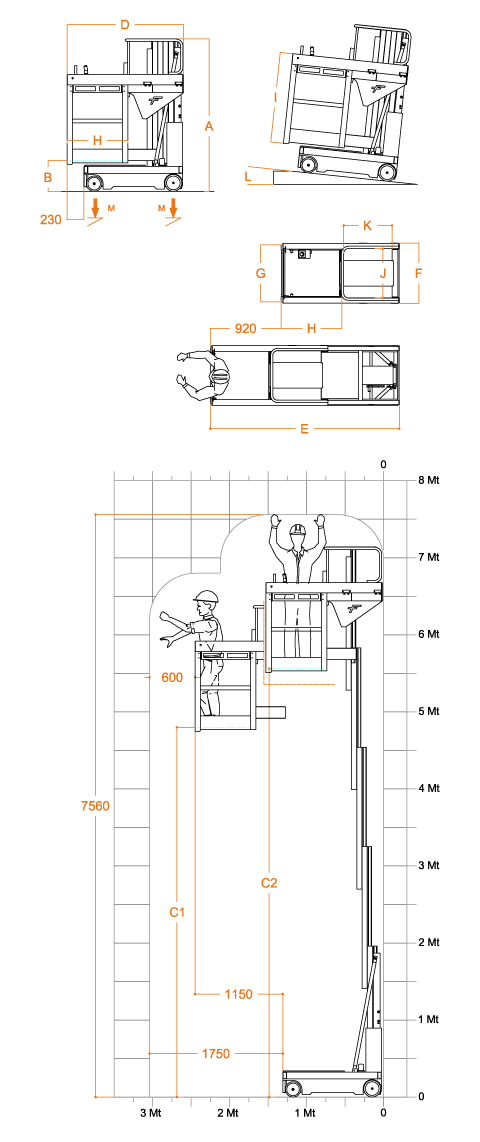

Dimensions
- A — Closed machine height: 1990 mm
- B — Minimum platform height: 400 mm
- C1 — Maximum platform height (basket rotation): 4800 mm
- C2 — Maximum platform height (closed basket): 5560 mm
- D — Base overall dimensions: 1530 mm
- E: 2430 mm
- F: 780 mm
- G — Cage dimensions: 740 mm
- H: 790 mm
- I: 1310 mm
- Machine weight: 1050 kg
Fixed Picking Tray
- J — Tray dimensions: 630 mm
- K: 620 mm
- Tray capacity: 20 kg
Electrical System
- Power supply: 24 V
- Batteries: Lead-Acid 12V 105 Ah
- Battery charger: 110V – 220V, 50/60 Hz
Wheels & Manoeuvrability
- Drive wheels dimension: Ø 220 × 65 mm
- Swivel wheels dimensions: Ø 200 × 50 mm
- Turning radius: 1540 mm
Performance
- Climbing ability at height: 2.5%
- L — Maximum climbing ability: 15%
- Max. speed (rising – descending): 0.2 m/s
- Maximum shifting speed: 4 km/h (on ground) / 1 km/h (at height)
- Max. self-movement height with extensible basket closed: 5560 mm
- M — Maximum pressure for wheel at full load*: 4.4 kN
- Work cycles (with fresh batteries)**: 100
Notes
* Maximum pressure measured when the weight of the platform plus maximum basket load is fully distributed on one side (totally asymmetric load).
** A work cycle = 20 m self-propelled movement + full ascent + full descent + adjustment of the loading platform.
Compliant with EN280 rule.
Approved for indoor use or outdoor use in the absence of wind.
Safety Equipment
- Maximum capacity control: Via relief valve
- Electronic inclinometer: With anti-tip function
- Potentiometer: Adjusts maximum translation at the basket edge
- Acoustic alarm signal
- Motion buzzer
- Light movement indicator
- Automatic electronic parking brake
- Horn
- 2-sash access doors to basket: With closure control
- Joystick safety: Safety catch to prevent accidental activation
- Drive wheels protection: IP65
- Emergency descent: Manually activated, basket lowers to base
Ergonomics and Functionality Equipment
- Storage shelf: Mounted on the column
Electronics, Power Supply and Batteries Equipment
- Self-propulsion: Proportional
- Basket lifting: Proportional
- Lifting block: Activates at 80% battery level
- Hour meter: Located on basket
- Battery charge indicator: Located on basket
Safety Devices
Ergonomic and Functional Equipment
Batteries
Colours
