ELEVAH 75 Tires

A special stock picker with a double tool to lift a tire set from the ground and to store or pick it up.

75 Tires
75 Tires
75 Tires
75 Tires
Info and prices

MAX. WORK HEIGHT: 7.60 M

MEASUREMENTS: 78 X 208 CM H: 196 CM

MAXIMUM CAPACITY: 250 KG

WEIGHT OF THE MACHINE: 1270 KG

STANDARD COLOURING: GREY AND ORANGE. CUSTOM COLOURS ON REQUEST.

TYRES PLATFORM:

SYSTEM FOR LOADING THE COMPLETE SET OF TYRES DIRECTLY FROM THE GROUND

LOAD CAPACITY: LOAD UP TO 150 KG

ADJUSTMENT: ELECTRIC

TILTING SYSTEM: ALLOWS TYRES TO BE PLACED HORIZONTALLY AND STORED EFFORTLESSLY BY ROLLING THEM ONTO THE SHELF (ACCESSORY 75TI.2REG)

SOME AREAS OF USE:

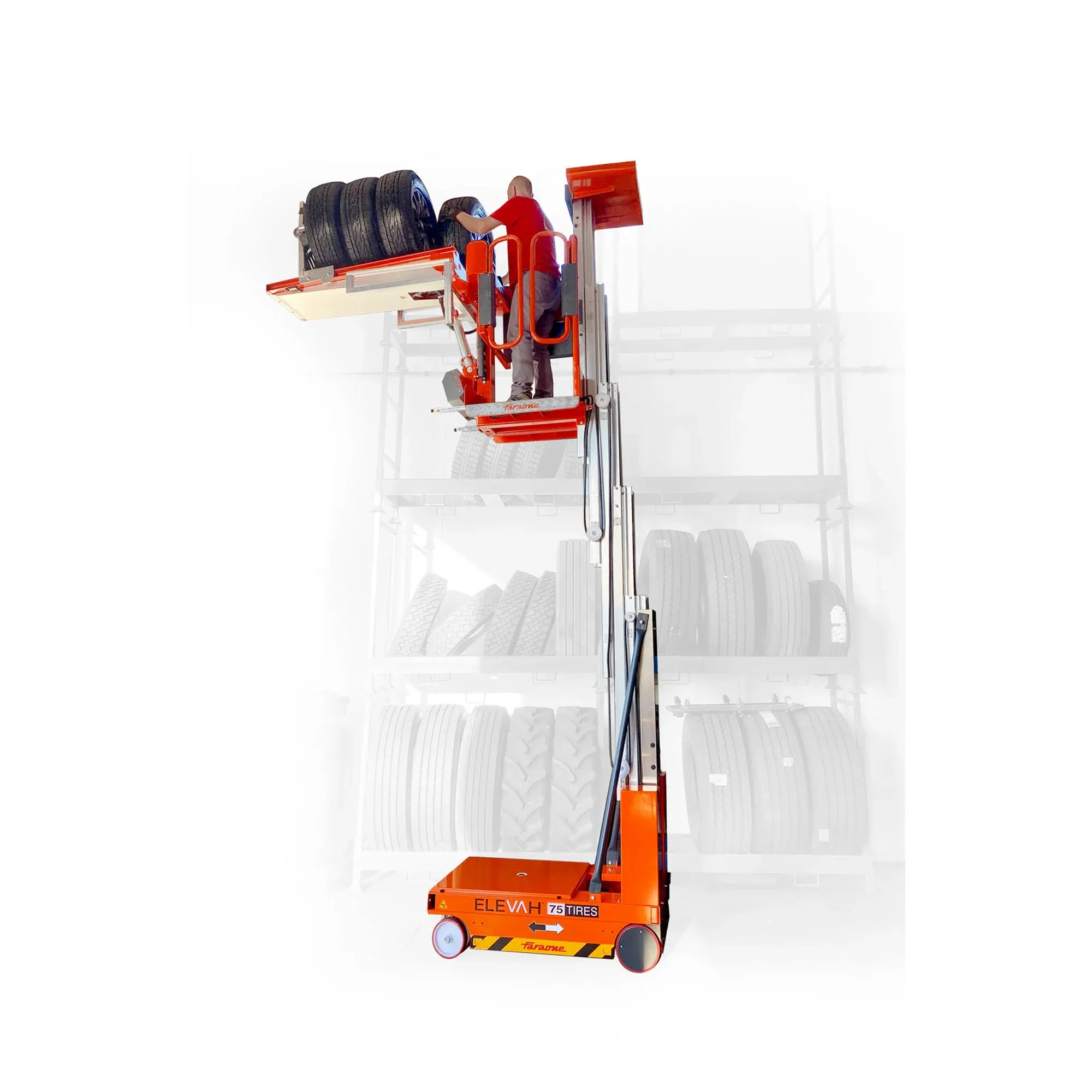

PICKING AND STORAGE OF COMPLETE TYRE TRAINS.
IDEAL FOR TYRE DEALERS AND CAR SHOWROOMS.

Technical data Gallery Standard equipment
READ DESCRIPTION Download data sheet Increase security

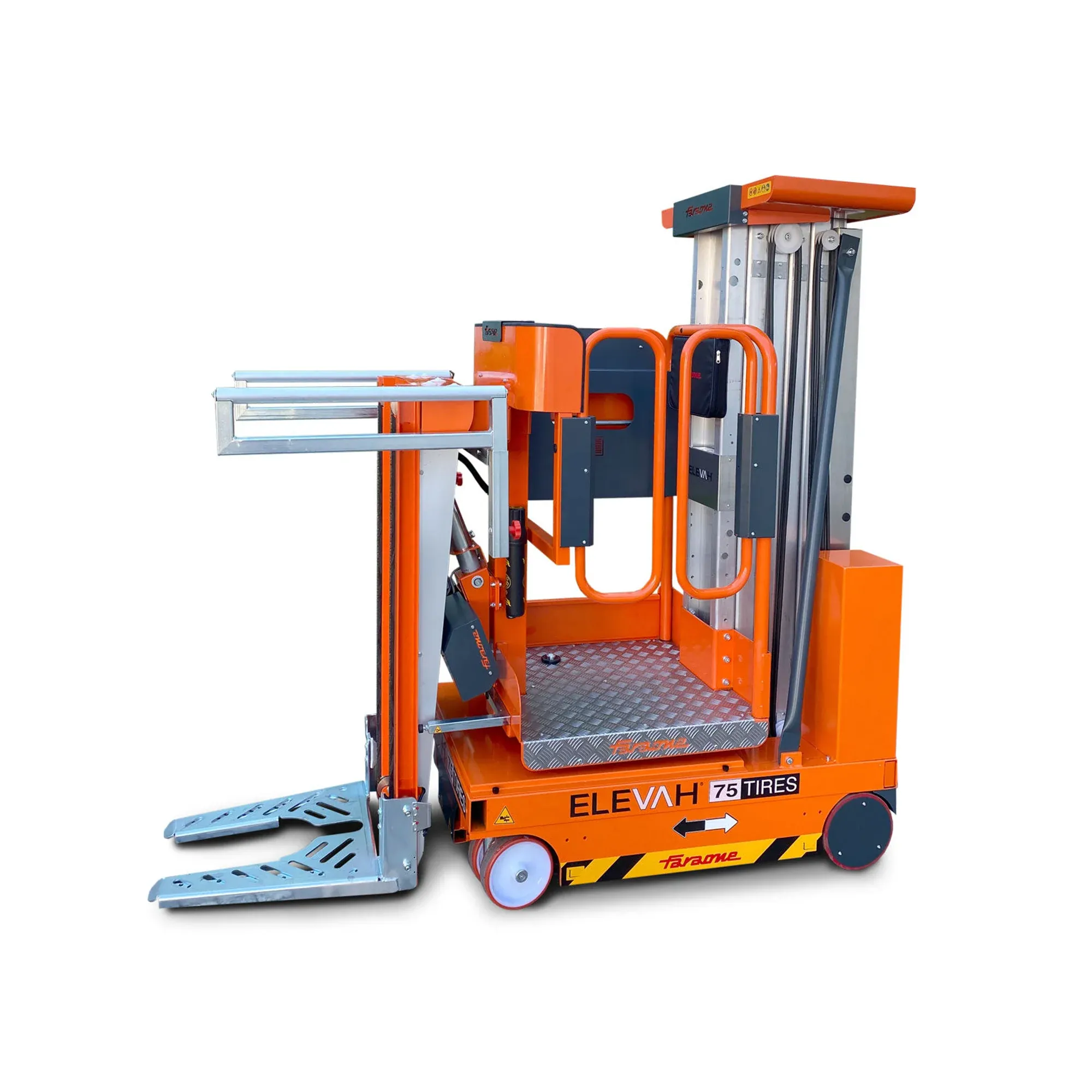

Elevah 75 Tires is the special stock picker designed specifically for the pneumatic sector.
This picking platform offers the possibility to lift a complete set of tires up to 150 kg.

Time saved and effort reduced to the minimum for the maximum efficiency: the tool allows to lift the tires directly from the ground and to adjust the stroke length in order to move the tires closer or further away from the operator.

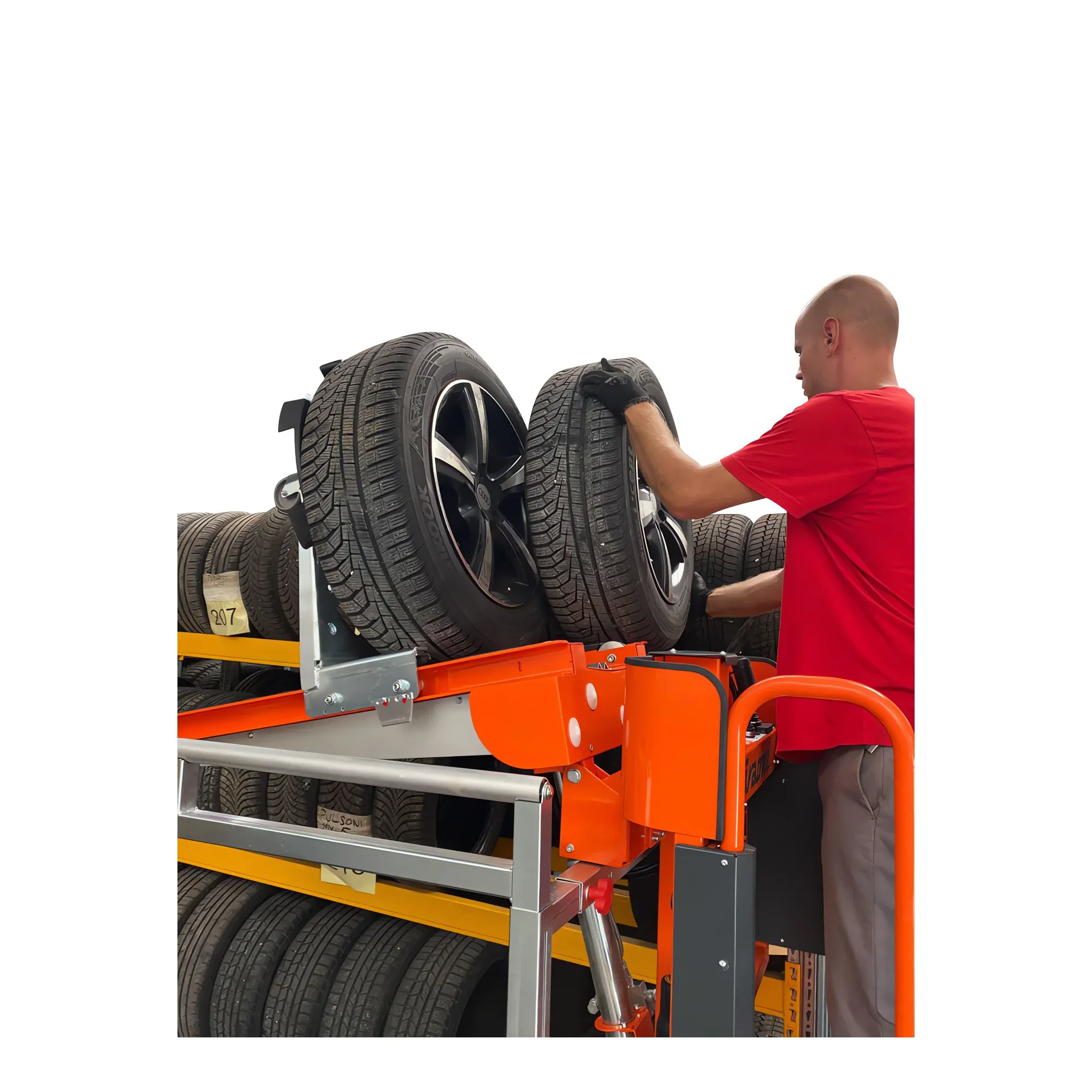

Moreover, the tool can also be tilted horizontally, allowing the tires to be directly rolled on the shelf, limiting the physical effort to a minimum. These operations are also aided by the side rollers adjustable in height and width, which allow easier and quicker storage operations.

The tool can reach a maximum working height of 6.30 m, while the maximum working height of 7.60 m.
The compactness - only 78 cm wide - and the zero turning radius allow the operator to work quickly and comfortably even in the most narrow areas and to drive easily with little room for maneuver.

Easy and comfortable to move, it is self-propelled in height and can be driven with one hand thanks to the joystick.

In the equipment and accessories section, you can find the list of the standard components and accessories to customize Elevah 75 Tires.

  • FRONT, REAR AND CEILING ANTI-COLLISION RADAR
  • BASKET BLOCK: max. 1,95 m
  • BLUESPOT1 AND BLUESPOT2 (driving direction signalling light)
  • ANTI-CRUSHING PROTECTION UNDER THE BASKET

More Optional:

  • DIFFERENT COLORING OF MACHINE UPON REQUEST
  • DIRECTIONAL LOCKING OF SWIVEL WHEELS
  • TRUCK LOADING AND UNLOADING SYSTEM

Charger with retractable cable is standard ( Not included If add OPTIONAL BKIT)

The machine can work at temperatures between -10° C and +40 °C

Max. working height 7,60 m
Max capacity 250 kg
Number of people 1
Use Internal - External
A Closed machine height 1960 mm
A1 Machine height with accessory 2755 mm
B Minimum platform height 455 mm
C1 Max platform height with vertical tyres tool 5610 mm
C2 Max platform height with horizontal tyres tool 5010 mm
C3 Max picking platform height with vertical tyres tool 6330 mm
C4 Max picking platform height with horizontal tyres tool 6160 mm
D Base overall dimensions 2080 mm
E 780 mm
F Cage dimensions 730 mm
G 705 mm
Machine weight 1270 kg
H Fixed picking tray dimensions 460 mm
I 760 mm
Fixed picking tray capacity 20 kg
Drive wheels dimension Ø 230 x 60 mm
Swivel wheels dimensions Ø 200 x 50 mm
RUBBER TOOL
O Height 1375 mm
K Fork size 600 mm
L 555 mm
Vertical adjustment Electrical
J Stroke 1115 mm
Min. height from the ground 40 mm
Maximum height from the ground 5200 mm
Rotation Electrical
Max. rotation angle 90°
Maximum height from the ground (rotated) 6160 mm
Capacity 150 kg
PERFORMANCE
Power supply 24 V
Batteries Lead-Acid Batteries 12V 105 Ah
Battery charger 110V – 220V
M Maximum climbing ability 15%
Climbing ability at height 2,5%
Internal turning radius 0
External turning radius 1025 mm
Max. speed (rising – descending) 0,2 m/s
Maximum translation speed 5 km/h
Maximum translation speed at height 1 km/h
N Maximum pressure for wheel at full load* 5,2 kN
Work cycles (with fresh batteries) ** 130

* Maximum pressure whereas the weight of the platform plus the maximum load on the basket are completely distributed on one side of the platform (totally asymmetric load).

** By work cycle we mean a self-propelled movement of 20 m with a full ascent to and descent from the maximum height and with adjustment of the loading platform.

Complies with European regulations for man-up forklift trucks. UNI EN ISO 3691-1.


Download data sheet
bollino
disegno

Safety equipment

Maximum capacity control via relief valve
Electronic inclinometer with anti-tip function
Foot pedal for signaling the presence of man
Potentiometer for adjusting the maximum translation on the edge of the basket
Alarm acustic signal
Motion buzzer
Light movement indicator
Picking platform maximum capacity control with electronics on motor (Only on electrical platform)
Automatic electronic parking brake
Horn
2-sash access doors to basket with closure control
Joystick with safety catch against accidental activation
IP65 protected drive wheels
Manually activated emergency descent of the basket to base

Ergonomics and functionality equipment

Storage shelf on the column
Picking platform side guards

Electronics, power supply and batteries equipment

Proportional type self-propulsion
Lifting block with 80% batteries
Hour meter and battery charge indicator on basket

Safety Devices

REDLIGHT1
REDLIGHT1 - Pair of red lateral signalling lights
BLUESPOT2
Pair of signaling lights (front + rear)
BLUESPOT1P
Signaling light (rear)
BLUESPOT1
Front signalling light
BSA.E
Automatic door lock
65 RADAR 3
Anti-collision Radar System to the Top (Driver’s Head protection)
65 RADAR 1B
Rear Anti-collision Radar System for the Chassis
51 KEY
Machine start-up with code (only for 24 Volt version)
PEVA3
External protection for the Basket for E65/E80 MOVE with the option 'Double side entrance basket'.
65MPR
Crushing protection under the basket
E65BLMA
Directional block
65 KEY ACC
Key switch to limit the standing height

Picking Platform

PRA.P
Automatic picking floor adjustment system
E5PEPP
Components to enlarge the picking tray.
E5 PMF
Extension for picking platform (removable) + 27 cm (for electrical picking platform only)
E5PROPEPP
Perimeter protection for picking platform
E5CPT
Carry-All rack to fit on the picking plate, removable, 60 cm height.
PFE.P
Front protection on picking elettric's tray

Ergonomics and functionality equipment

65.ROU3
Dark grey 90 Shore ANTISTATIC ESD non-marking polyurethane wheel with electrical resistance
65.RUO2
80 Shore A Powercast non-marking polyurethane wheel with marking for water drainage
RLA ( I.980 )
Side rollers wide 980 mm, to drive through shelf aisles
RLB ( l.1020 )
Side rollers wide 1020 mm, to drive through shelf aisles
PARACO50
Two Upholstered Covers 50 cm
PCCUSB
Socket on board basket with USB socket
PCC
Current socket on the basket. 24 V/5 A
CL
Wooden Crate for shipping
51 IN
Additional control button to operate the machine with both hands
X COV
Resistant tarpaulin
IP65.MOVE
IP65 Certification. Requires AGM batteries
BSA
Door block by lifted basket
SCP
Extra remote control for loading on ramps
TA 7
Cushioning Pad in EVA

Batteries

65 BKIT
Kit with 2 batteries for 24H operation
BG
Batteries without maintenance Trojan mod. 31 AGM 100 Ah (1 Kit)
LITIO 4
Kit with 2 Trojan 12.8 Volt 110 A lithium batteries + increased battery charger. minimum operating temperature 4 °

Colours

RAL1
Customised machine finish painting
ZNC
Galvanized machine plus epoxy powder coated
