Elevah
70

Elevah® 70 is a platform, entirely made of aluminium, equipped with a large basket and a maximum capacity of 200 kg.

Specifications

Maximum Work Height

6 m without outriggers (with cage in position 2); 7.25 with outriggers (with cage in position 2)

Measurements

132 X 78 CM H: 170 CM

Maximum Capacity

200 KG

Weight of Machine

398 KG

Adjustment Type

Manual traction and electric elevation

Standard Colouring

Grey and orange. Custom colours on request.

Areas of Use

Ideal for the agri-food, automotive, aviation, textile, engineering, etc. Maintenance, repair and cleaning of production plants, lighting systems, ventilation systems; assembly of machinery or production plants

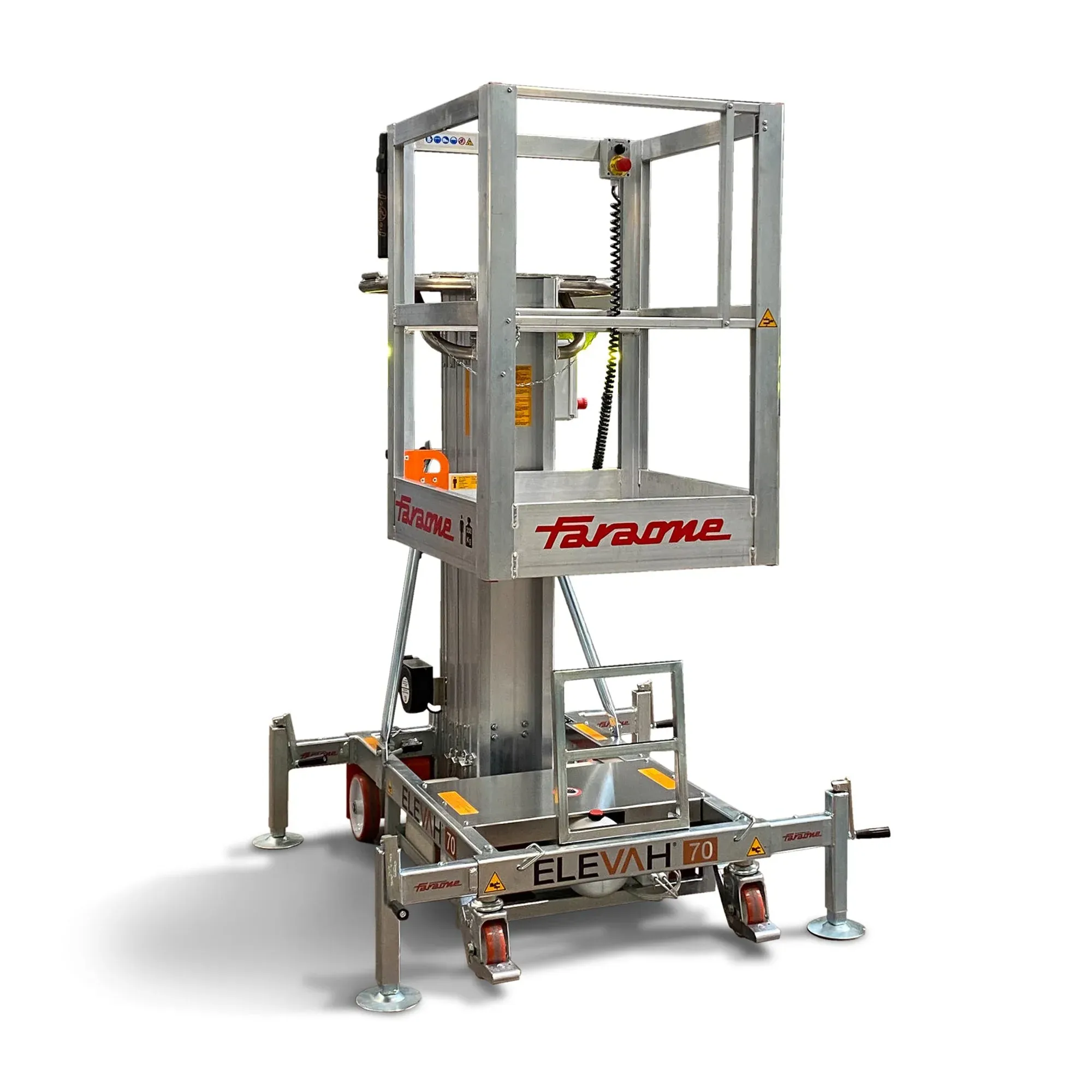

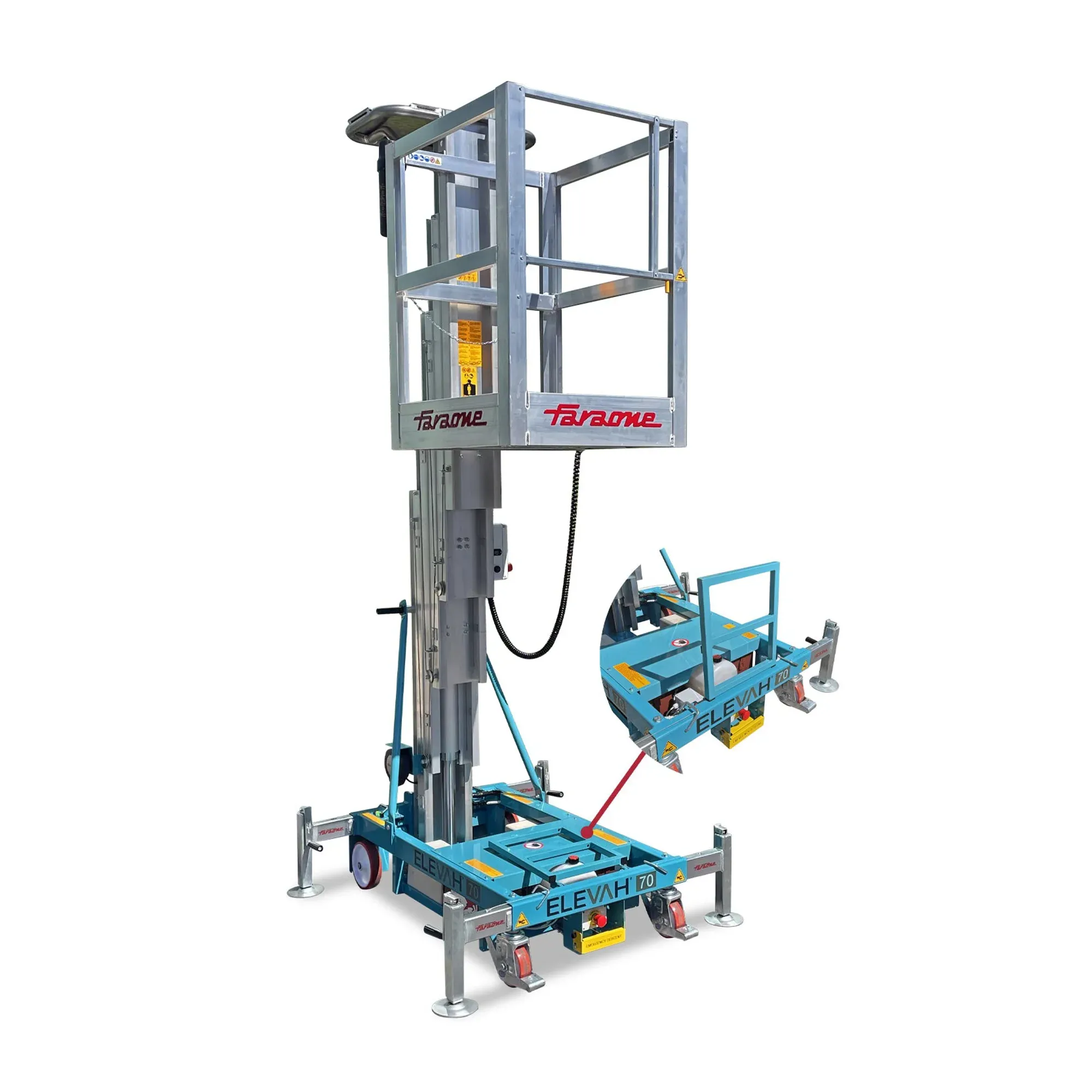

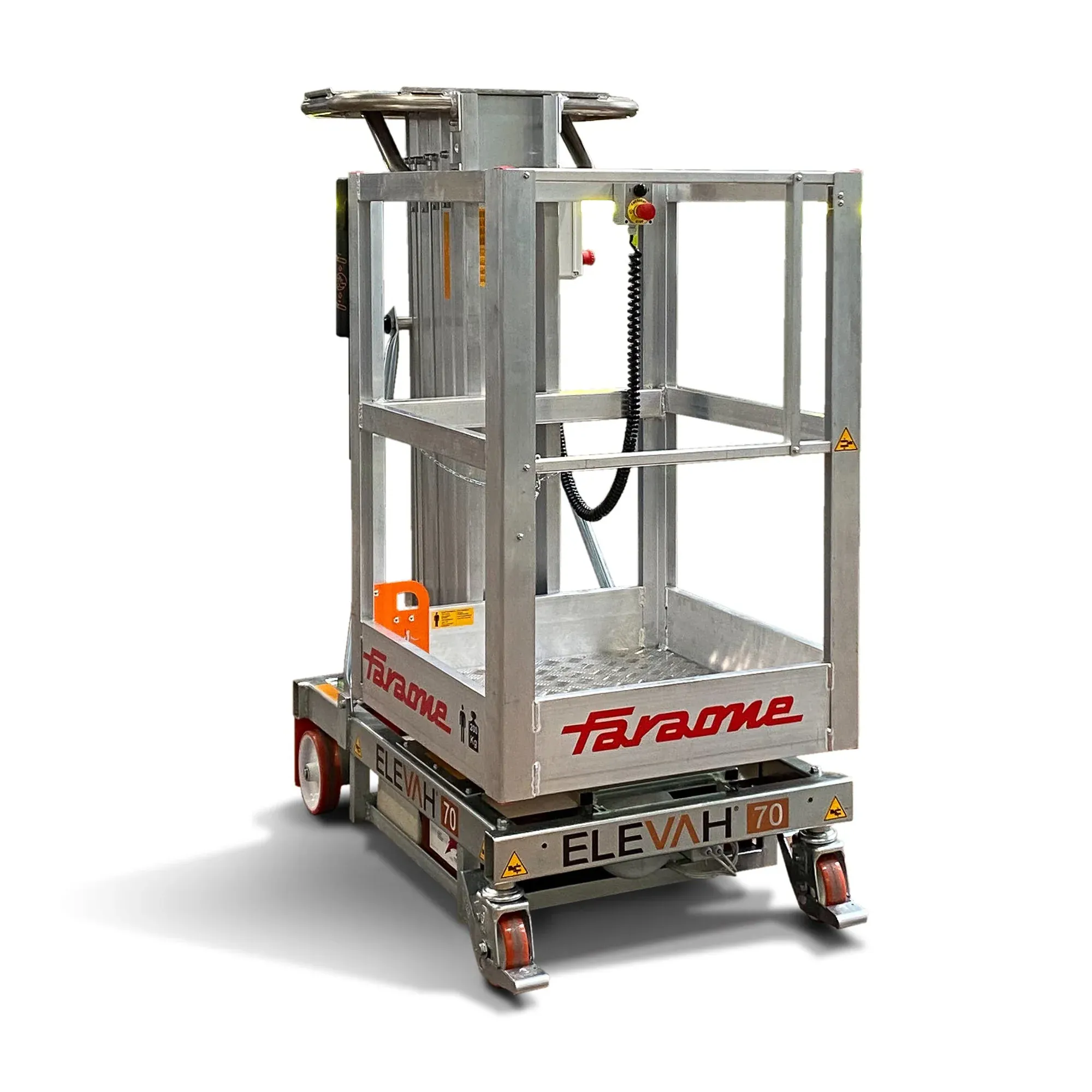

Elevah 70 is a push around electric lifting platform, entirely made of aluminium. Allows you to carry out maintenance operations up to a maximum of 7.25 m.

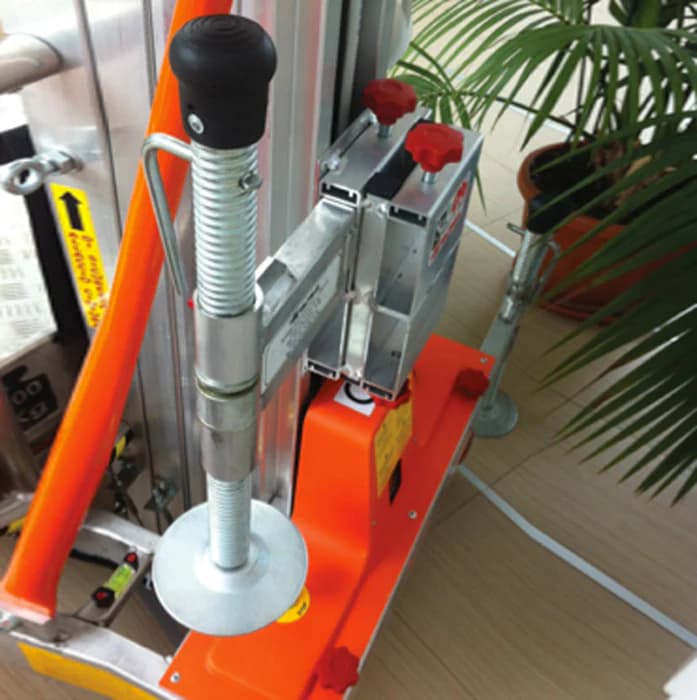

The platform reaches different heights depending on the different positions of the basket and on the presence of stabilizers.
If the basket is in the standard position and stabilizers are not used, the machine can reach 5,41 m (3410 mm platform height).
Adding stabilizers to this position it can reach 6,7m (4660 mm platform height).
Moving the basket higher, to position 2, without stabilizers, the platform can reach 6 m (4000 mm platform height).
Adding stabilizers to this position, the platform reaches its greatest height, 7,2m (5250 mm platform height).
Elevah 70 optimizes work and times: just place the platform in the desired position and turn the knob to get on in a totally safe way. It can be moved manually very easily and in a short period of time. Thanks to the practical controls, you can quickly reach the desired height position, but another operator can also adjust it from the ground.
To facilitate maintenance operations, there is a storage tray with a capacity of 20 kg, which is very important to store tools.
As with all Elevah platforms, it is equipped with standard safety devices. In particular, to avoid unintentional actions, the platform does not move if the basket is not closed. This aspect allows the operator to work in total safety.
It is possible to increase the safety level and each machine can be customized according to the needs, thanks to the wide range of accessories and customizations available for each Elevah model.

The machine can work at temperatures between -10° C and +40 °C

General

Max. working height:
• Without stabilizers: 6 m (with basket in position 2)
• With stabilizers: 7.25 m (with basket in position 2)
Max. capacity: 200 kg
Number of people: 1
Use: Internal

Dimensions

A — Closed machine height: 1700 mm
B — Minimum platform height: 380 mm
C — Height from ground to walk-on floor: 970 mm
D — Maximum platform height:
• Without stabilizers: 4000 mm
• With stabilizers: 5250 mm*
E — Base overall dimensions:
• Without stabilizers: 1320 mm
• With stabilizers: 1380 mm
F:
• Without stabilizers: 780 mm
• With stabilizers: 1350 mm
G — Cage dimensions: 780 mm
H: 850 mm
I — Max. distance from the wall:
• Without stabilizers: 0 mm
• With stabilizers: 40 mm
J:
• Without stabilizers: 0 mm
• With stabilizers: 300 mm

Fixed Picking Tray

K — Tray dimensions: 760 mm
L: 440 mm
Capacity: 20 kg

Weights

Machine weight with outriggers, 24V power supply: 430 kg
Machine weight with stabilizers (power supply 220V 50/60Hz): 400 kg

Electrical System

24V power supply: 2 Pb Acid batteries, 12V 105 Ah
24V battery charger: 110V – 220V
Swivel wheels dimensions (fixed): Ø 200 × 50 mm
Swivel wheels dimensions: Ø 150 × 45 mm

Performance

Max. speed (rising): 0.2 m/s
Max. speed (descending): 0.15 m/s
L — Maximum pressure for wheel at full load**: 2.0 kN
L — Maximum pressure for stabilizer at full load**: 2.2 kN
Work cycles (with fresh batteries)***: 200

Notes

* Maximum height reached with cage at height –C–.
** Maximum pressure measured when the weight of the platform plus maximum basket load is fully distributed on one side (totally asymmetric load).
*** A work cycle = 20 m self-propelled travel + full ascent + full descent + platform adjustment.

Compliant with EN280 rule.
Approved for indoor use or outdoor use in the absence of wind.
