Elevah
40B

Push around platform with electric lifting

Specifications

Maximum Work Height

4 M

Measurements

71.5 X 100 CM H: 173 CM

Maximum Capacity

200 KG

Weight of Machine

265 KG

Standard Colouring

Grey and orange. Custom colours on request

Areas of Use

Maintenance and cleaning of public buildings, offices and buildings; maintenance of shopping centres; - plant engineering (electrical, air conditioners, etc.). Ideal for server rooms, clinics, universities, hotels, etc

Manual traction

With electric elevation

Elevah 40B is a push around automatic lifting platform that allows working up to a maximum of 4 m. Handy and efficient, it is perfect for maintenance and installation activities in various environments, from shops to industry.

Elevah 40B allows optimizing times and reducing operators’ efforts. To move the machine, simply grab the handles and press the buttons, thus releasing the brakes and allowing transport. Once you have reached the desired position, simply release the buttons and the machine returns to braking position. Once positioned, simply access the basket and operate the control to reach the desired height. In this way, the operator can work at height effortlessly and in maximum comfort.

Thanks to its small size (only 71.5 x 100 cm), this model is very practical and can be stored in a small space.

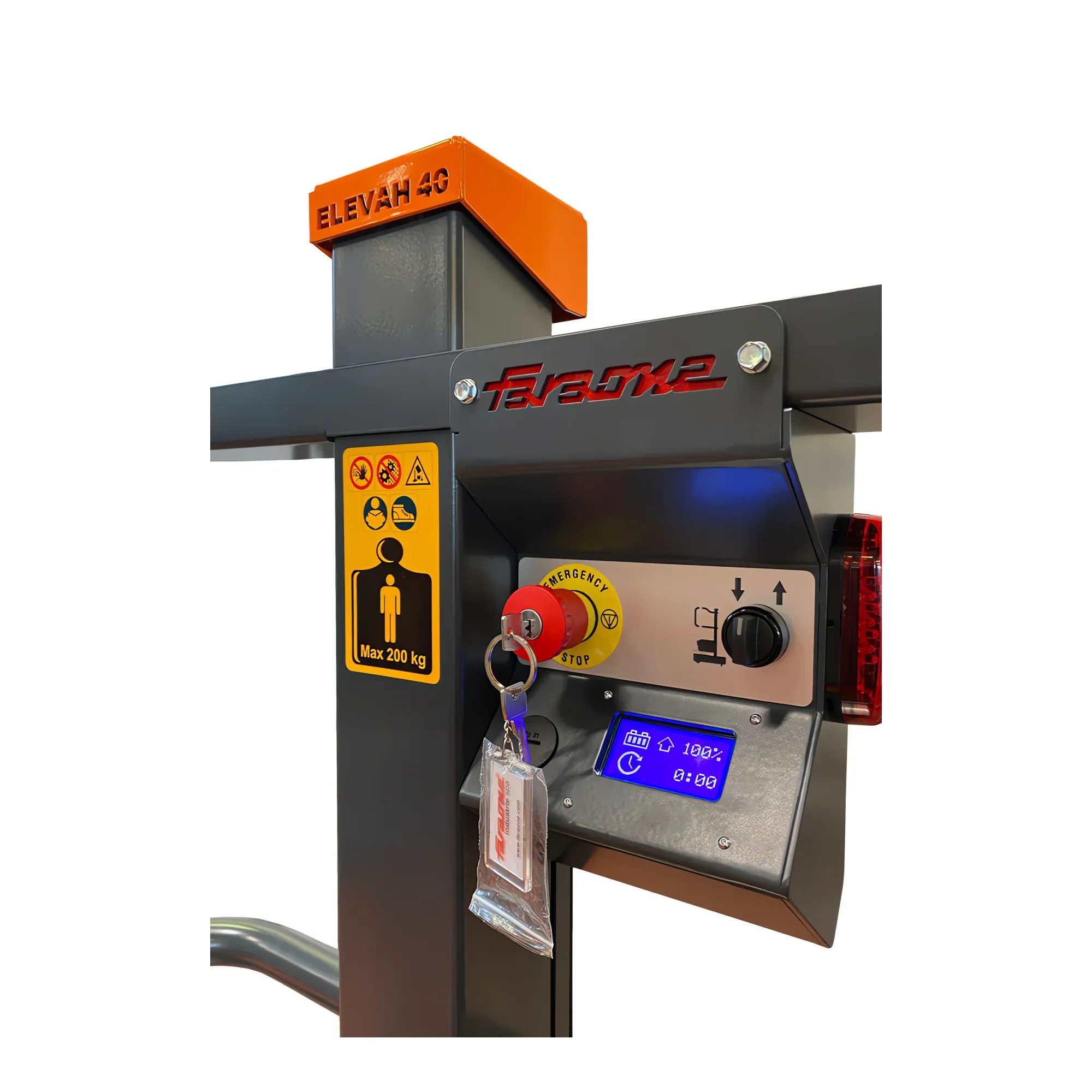

Elevah 40B offers various advantages in terms of work optimization, but also of safety. In fact, thanks to the locking of the doors, the basket cannot be accidentally opened. This aspect is a real guarantee of safety for the operator who can work in complete confidence. In addition, the revolutionary display not only indicates the status of the battery, but also shows any errors in the machine.

It is also equipped with luminous movement indicators and emergency lowering. In the equipment and accessories section, you will find the list of standard components and accessories to customize Elevah 40B.

The machine can work at temperatures between -10° C and +40 °C

General

Max. working height: 4 m
Max. capacity: 200 kg
Number of people: 1
Use: Internal

Dimensions

A — Closed machine height: 1730 mm
B — Min. height from the ground*: 290 mm
C — Maximum platform height: 1950 mm
D — Base overall dimensions: 1000 mm
E: 715 mm
F — Cage dimensions: 685 mm
G: 580 mm
Machine weight: 265 kg

Wheels

Idle front wheel size: Ø 125 × 35
Idle rear wheels size: Ø 150 × 40

Performance

Power supply: 24 V
Batteries: 2 AGM 12V 45 Ah
Battery charger: 115V–230V, 50/60 Hz
H — Maximum climbing ability: 15%
Internal turning radius: 0
R — External turning radius: 860 mm
Max. speed (rising): 0.15 m/s
Max. speed (descending): 0.15 m/s
I — Maximum pressure for wheel at full load**: 1.55 kN

Notes

* There is an intermediate step.
** Maximum pressure measured when the weight of the platform plus the maximum basket load is fully distributed on one side (totally asymmetric load).

CE and TÜV certified and approved for internal use in the absence of wind.
Compliance assessment considered only standards whose required measures have been implemented and only where a corresponding risk exists.

Safety Equipment

Maximum capacity control: Via relief valve
Light movement indicator
Automatic electronic parking brake

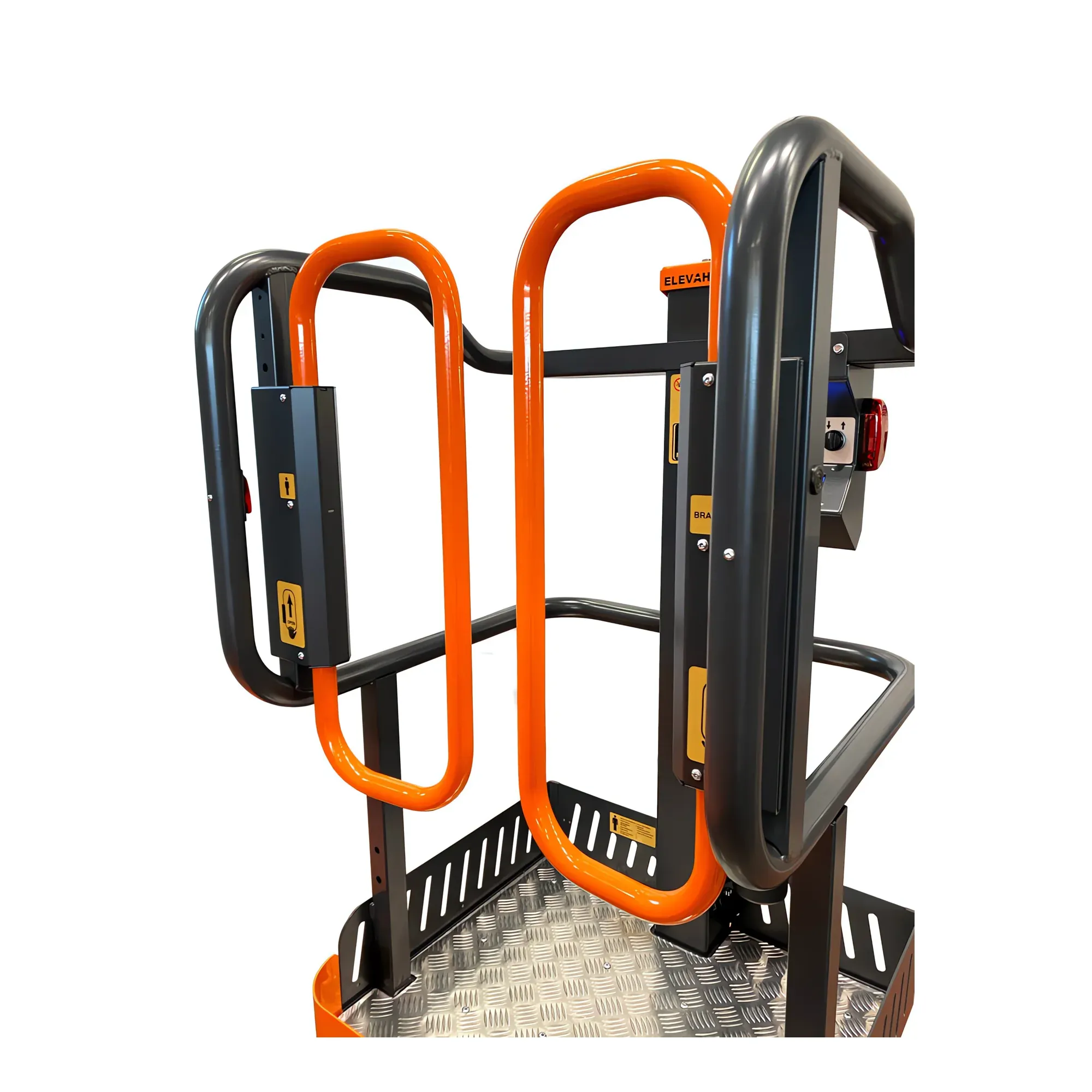

2-sash access doors to basket: With closure control
Joystick safety: Safety catch to prevent accidental activation
Drive wheels protection: IP65

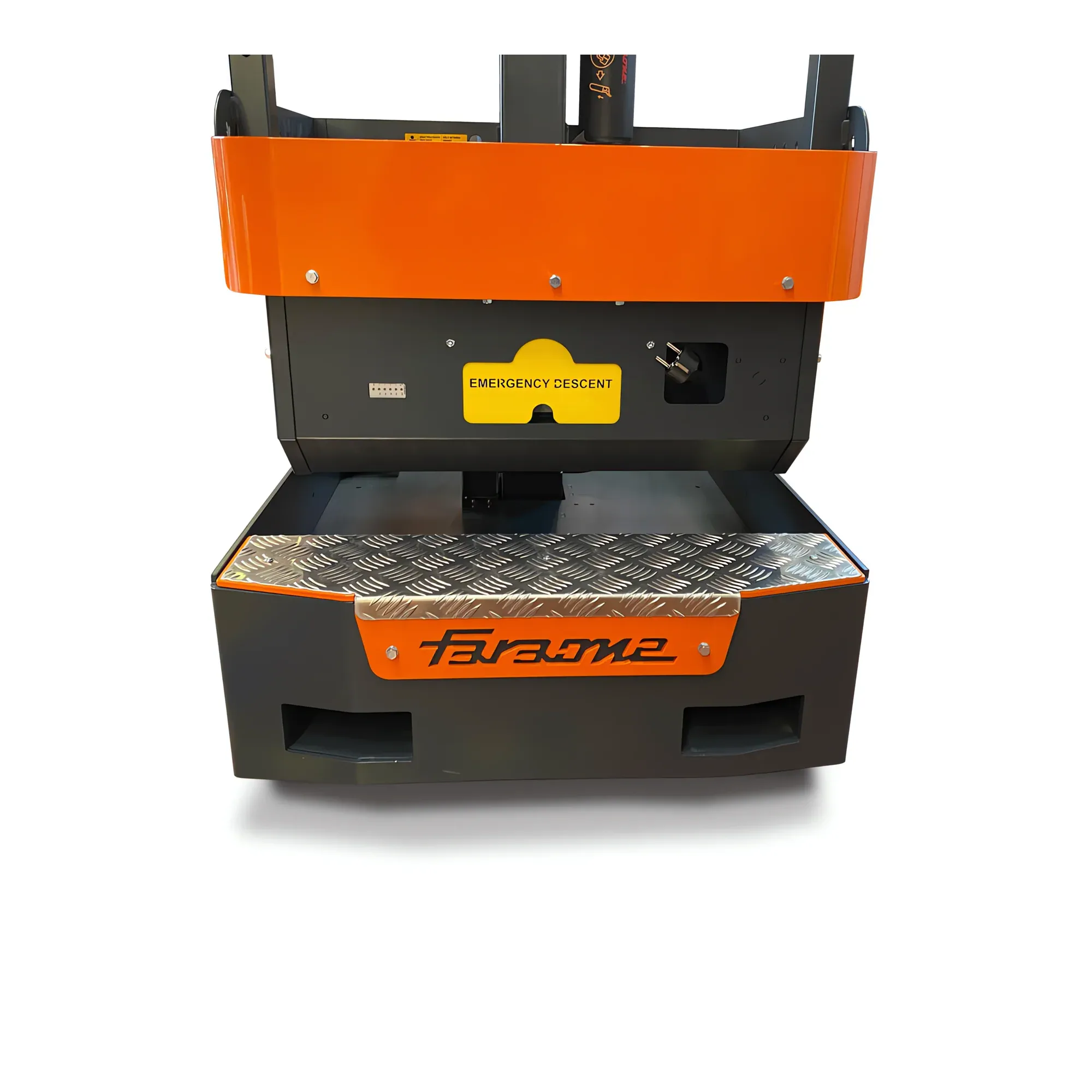

Emergency descent: Manually activated, basket lowers to base
Two-hand operation

Electronics, Power Supply and Batteries

Self-propulsion: Proportional
Basket lifting: Proportional
Lifting block: Activates at 80% battery level
Hour meter: Located on basket
Battery charge indicator: Located on basket
Battery charger: Multi-voltage and multi-frequency, 6A (115V – 230V, 50/60 Hz)
Batteries: High-resistance AGM, 24V – 50A
