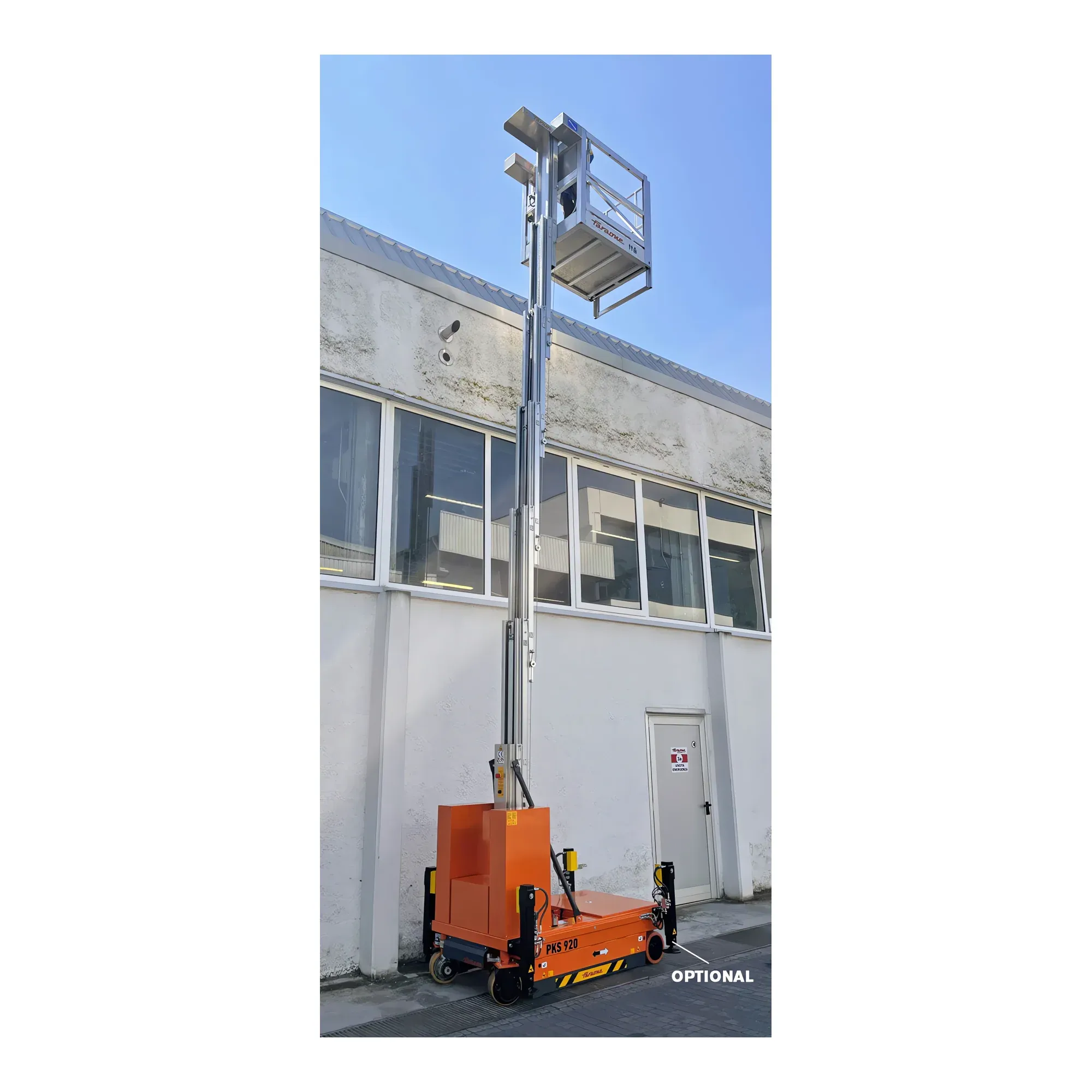

PKS 920 is the ideal solution to reach higher heights with extreme ease. Thanks to this platform self-propelled at height, you can operate maintenance works at height in total safety up to 9,2!

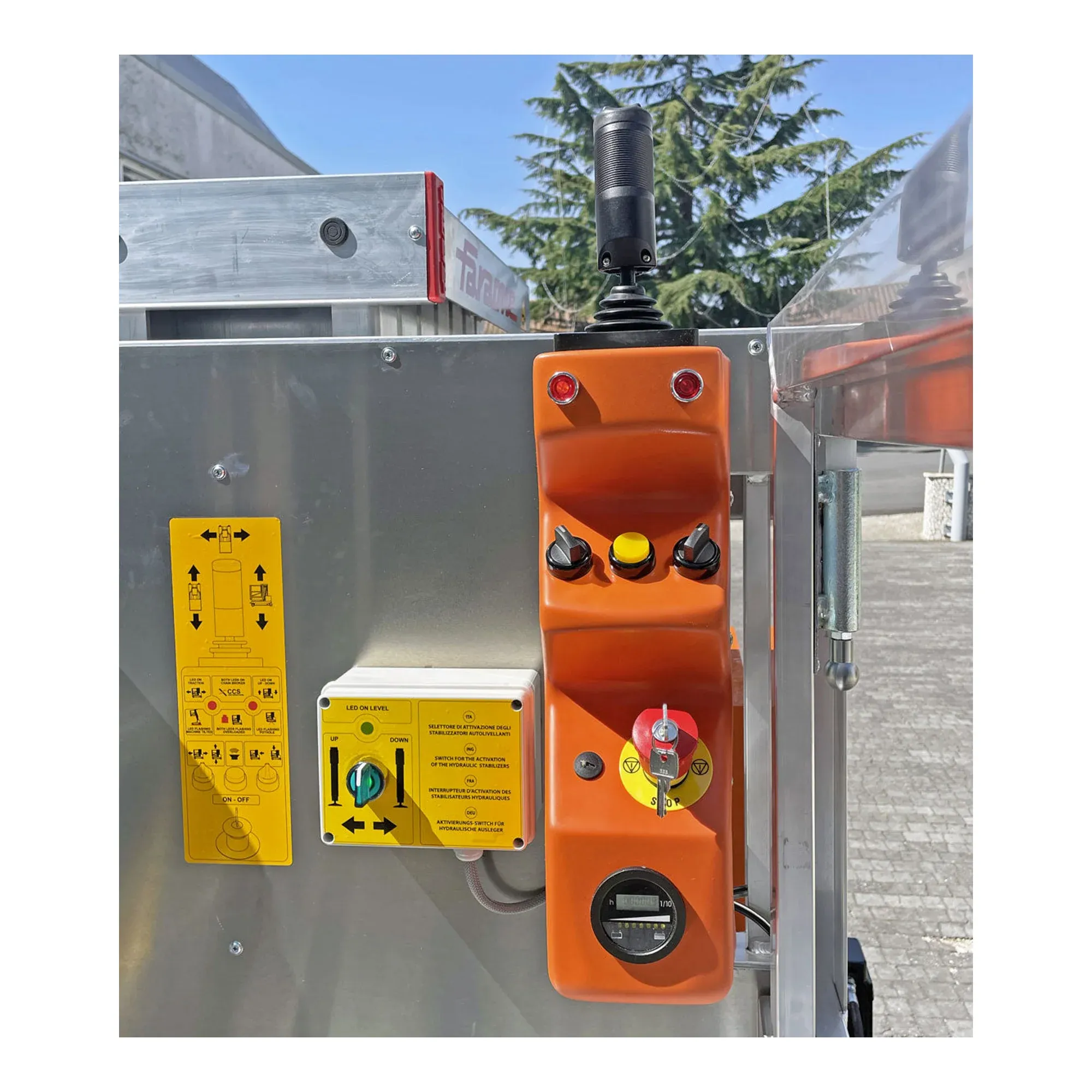

Approved for external use, is able to accommodate two operators. It is comfortable and easy to use thanks to its controls extremely intuitive and the handy joystick.
The reduced turning radius allows you to move the machine even in the most difficult spaces.
The basket is wide, protects the operator at 360 ° and extends 63 cm to allow you to reach the most difficult areas.
Although PKS 920 reaches high heights, it still is a compact platform: when closed its height is 189 cm and has a size of the base is of 215x98 cm.

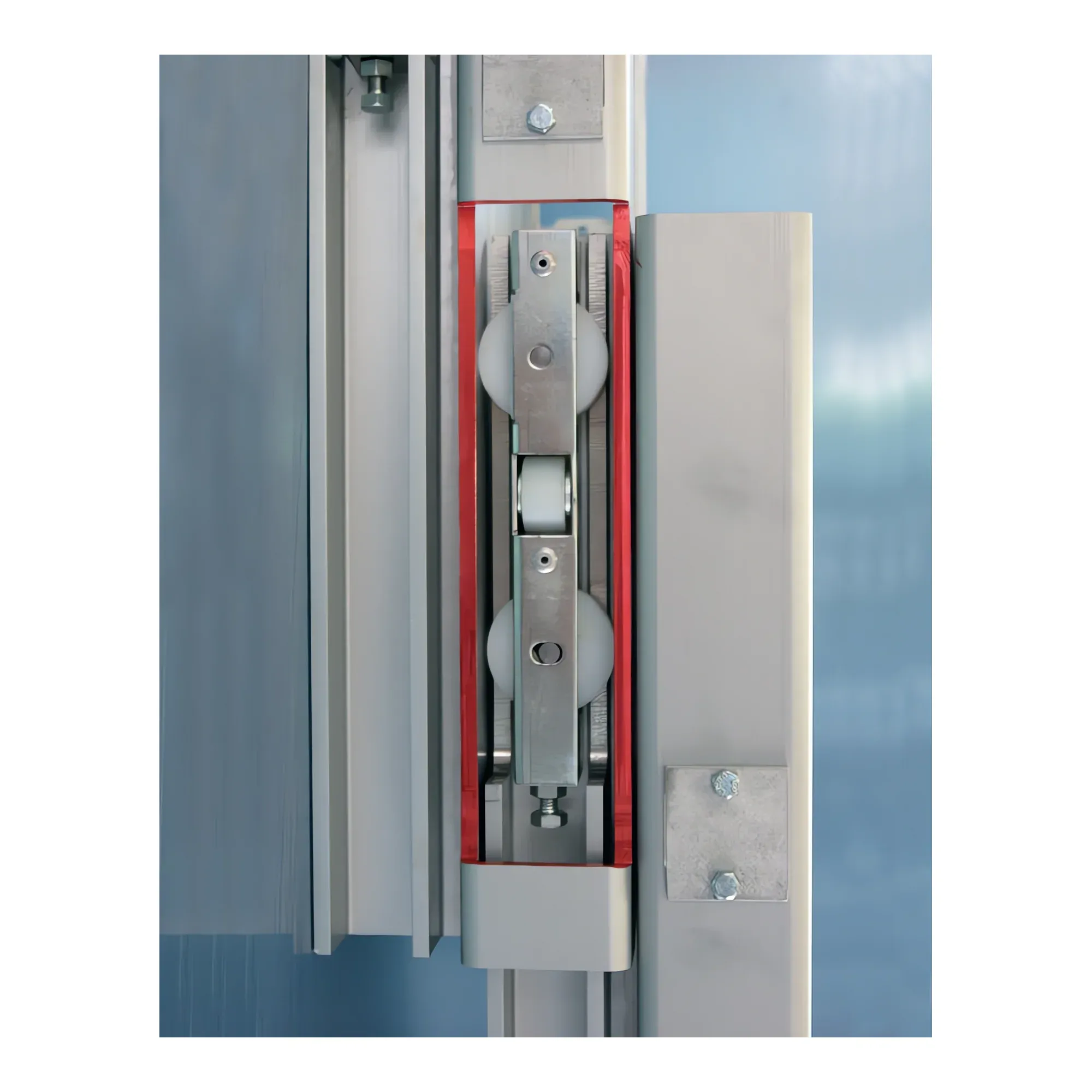

The 12-wheel hydraulic system allows perfect sliding of the column ensuring maximum stability at height.
PKS 920 is ideal for industrial maintenance and external finishing works.
The machine can work at temperatures between -10° C and +40 °C
General
- Max. capacity: 200 kg
- Number of people: 2
- Use: External
Dimensions
- A — Closed machine height: 1890 mm
- B — Minimum platform height*: 600 mm
- C — Maximum platform height: 7200 mm
- D — Base overall dimensions: 1920 mm
- E1: 2150 mm
- E2: 2785 mm
- F: 980 mm
- G — Cage dimensions: 980 mm
- H1: 1200 mm
- H2: 1835 mm
- Machine weight**: 1970 kg
Electrical System
- Power supply: 24 V
- Batteries: 2 × 12V Acid Batteries, 130 Ah
- Battery charger: 110V – 230V, 50/60 Hz

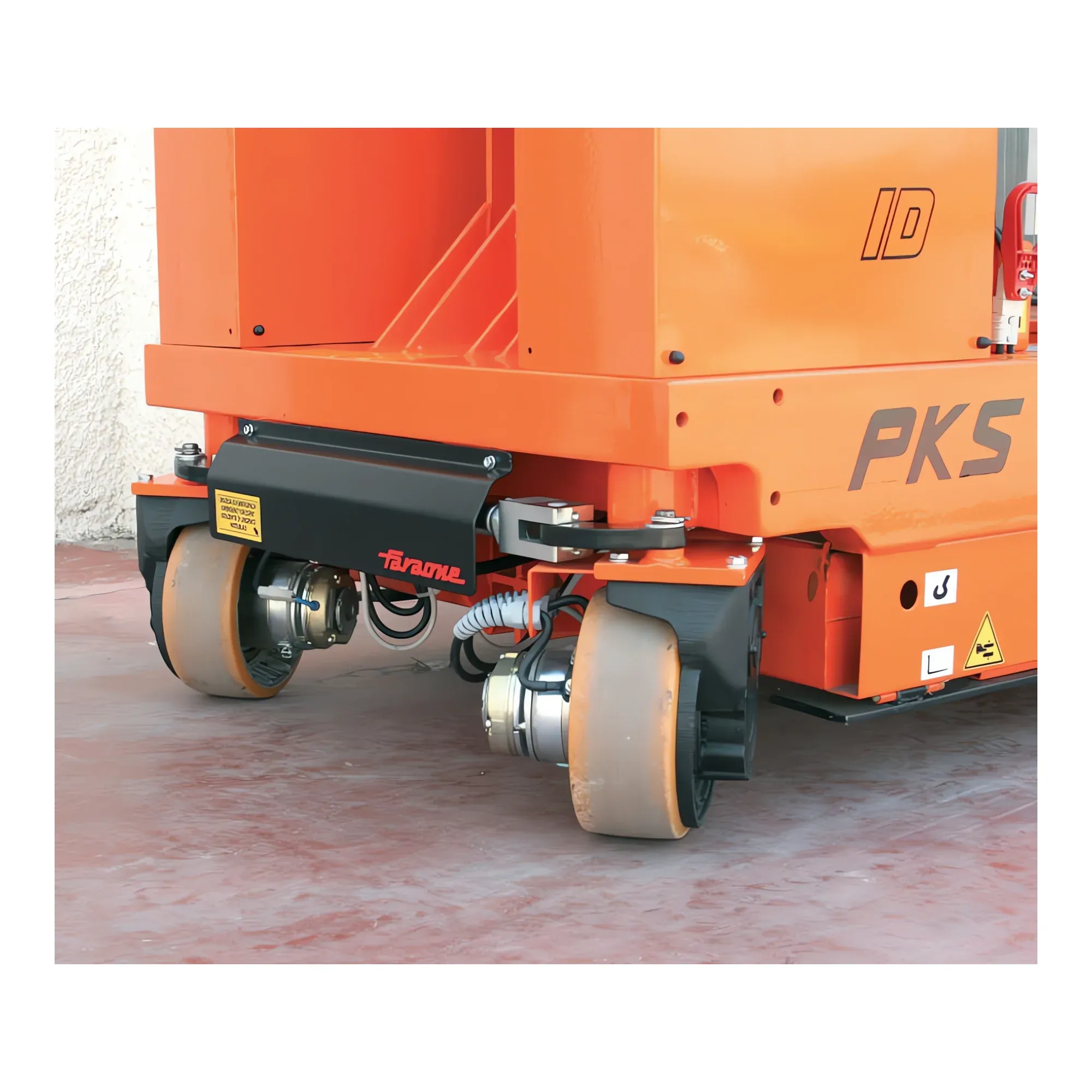

Wheels & Manoeuvrability
- Drive wheels dimension: Ø 240 × 100
- Swivel wheels dimensions (fixed): Ø 250 × 100
- Turning radius: 1990 mm
Performance
- Climbing ability at height: 1.5° – 2.6%
- I — Maximum climbing ability: 15%
- Max. speed (rising): 0.3 m/s
- Max. speed (descending): 0.22 m/s
- Maximum shifting speed: 1.33 m/s
- Maximum shifting speed at height: 0.27 m/s
- C1 — Max. self-movement height with extensible basket closed: 7200 mm
- J — Maximum pressure for wheel at full load***: 7.6 kN
Notes
* There is an intermediate step.
** Inclusive of extensible picker.
*** Maximum pressure measured when the weight of the platform plus maximum basket load is fully distributed on one side of the platform (totally asymmetric load).
Safety Devices
Ergonomic and Functional Equipment
Batteries
