PKS 1200

The platform that reaches great heights with extreme ease: PKS 1200!

Specifications

Maximum Work Height

12 M

Platform Load Capacity

200 KG

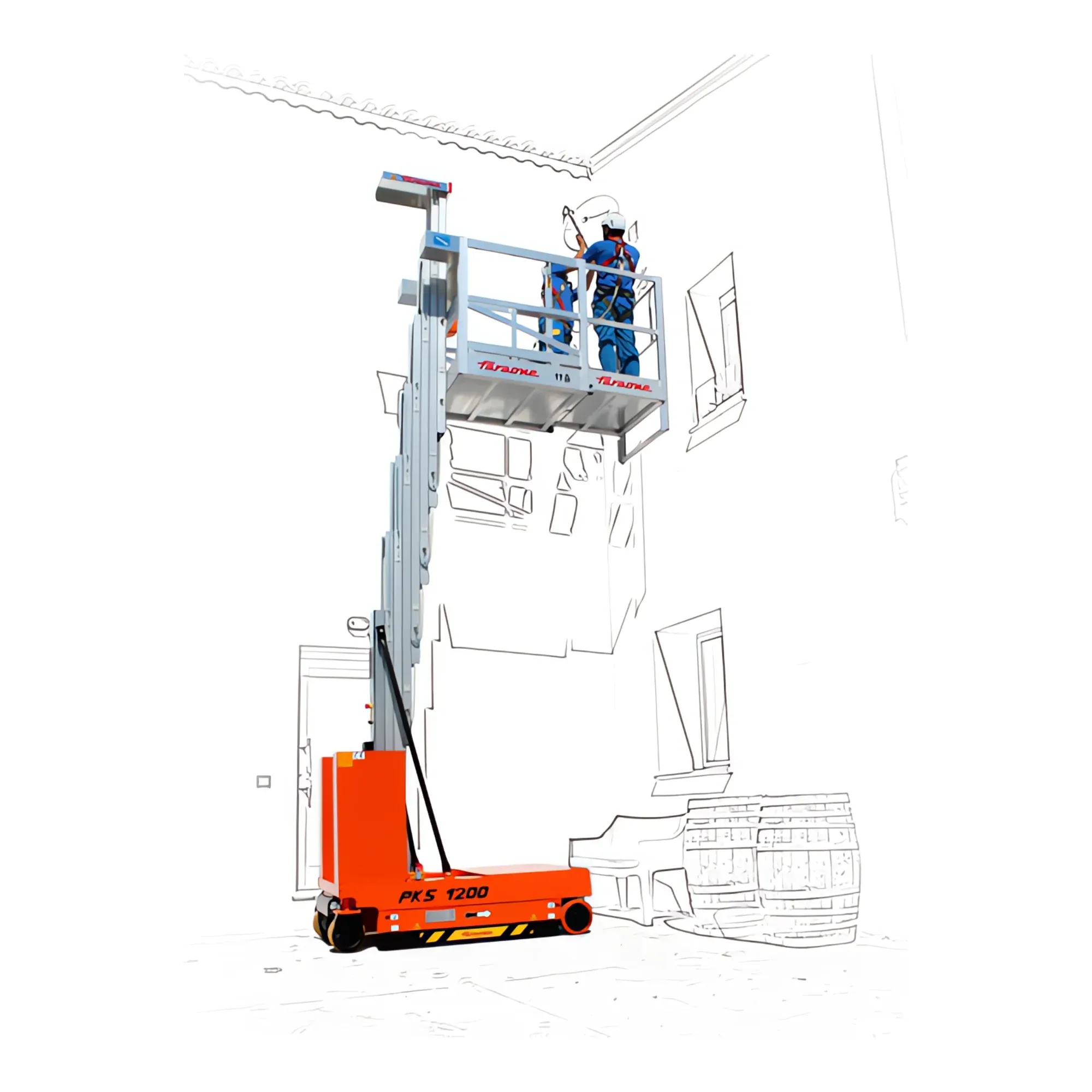

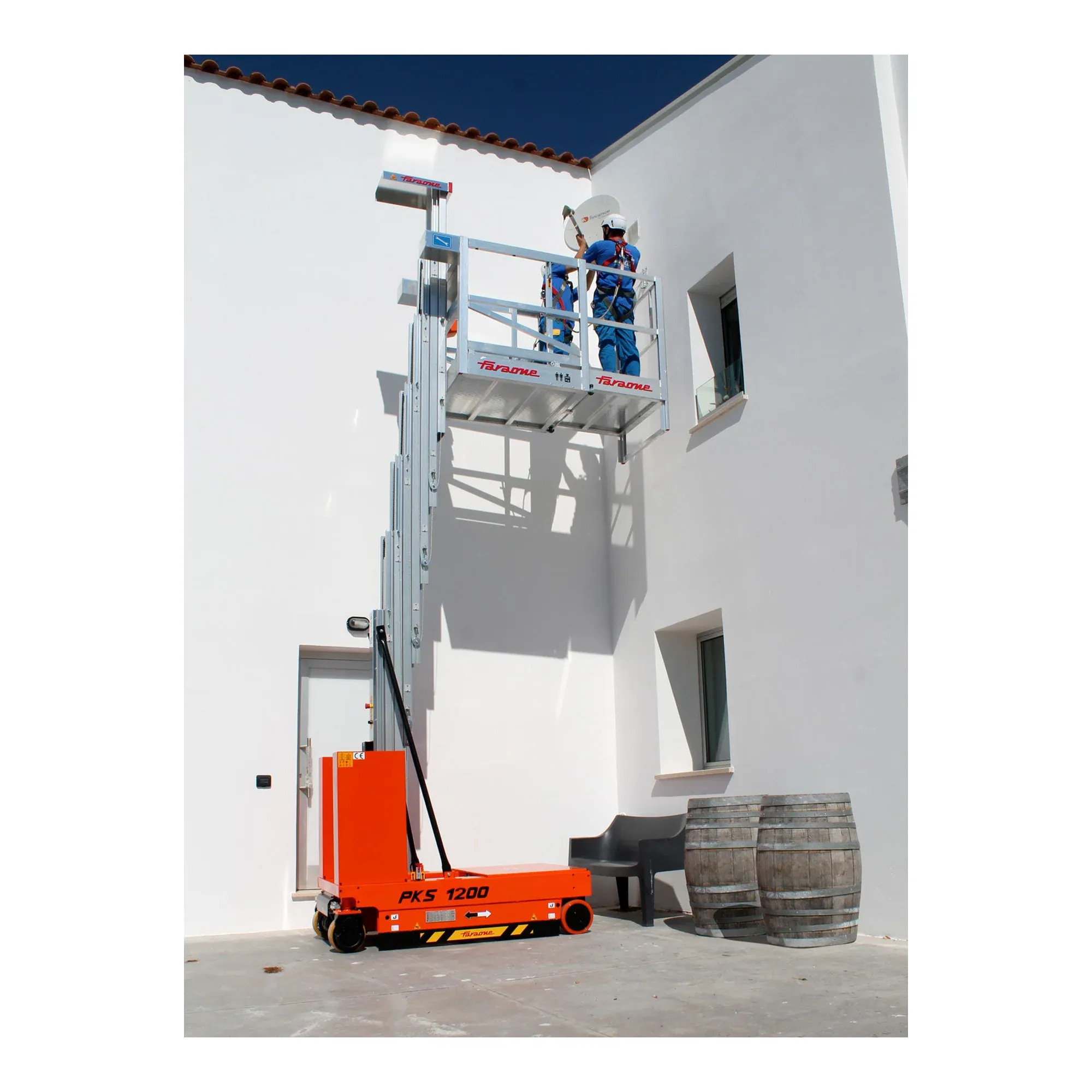

Self-propelled at height, PKS 1200 is the platform that reaches a working height of 12 m, allowing all maintenance and finishing work to be carried out in total safety.

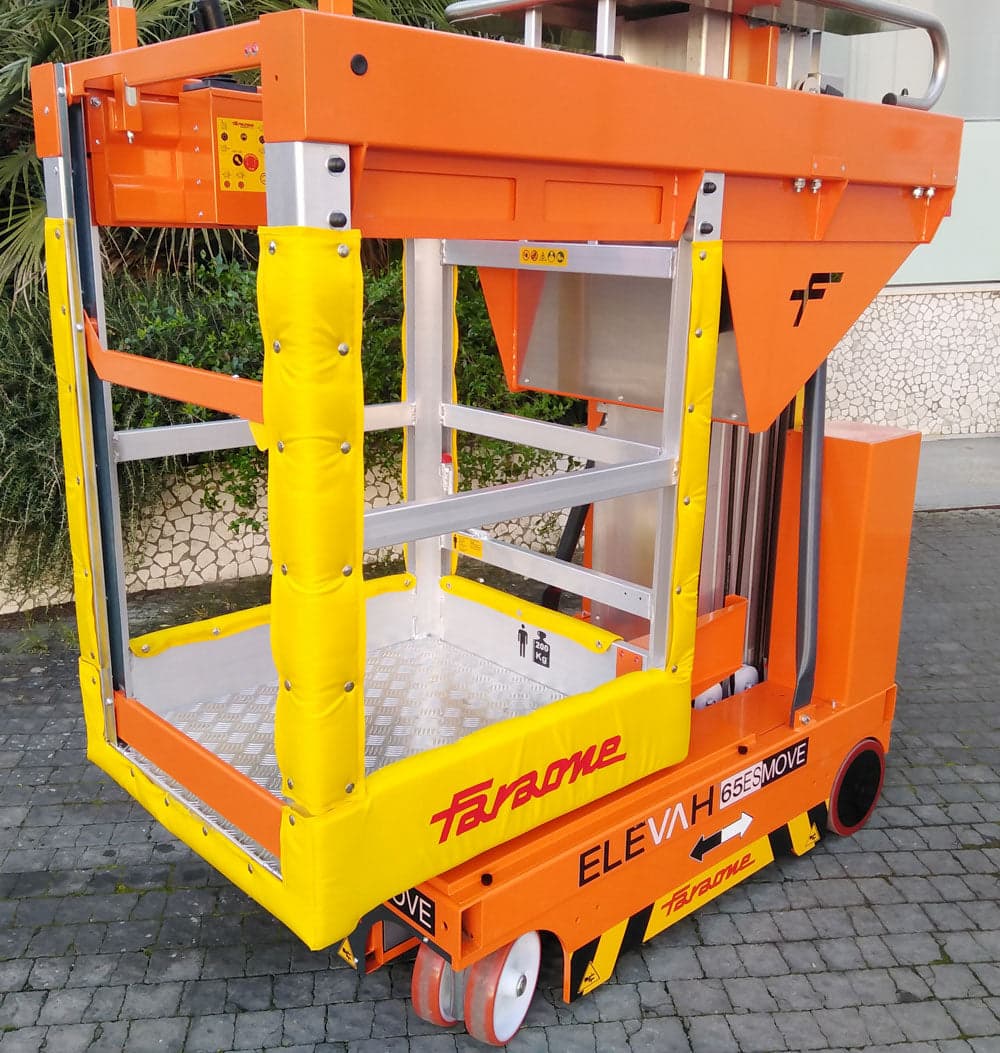

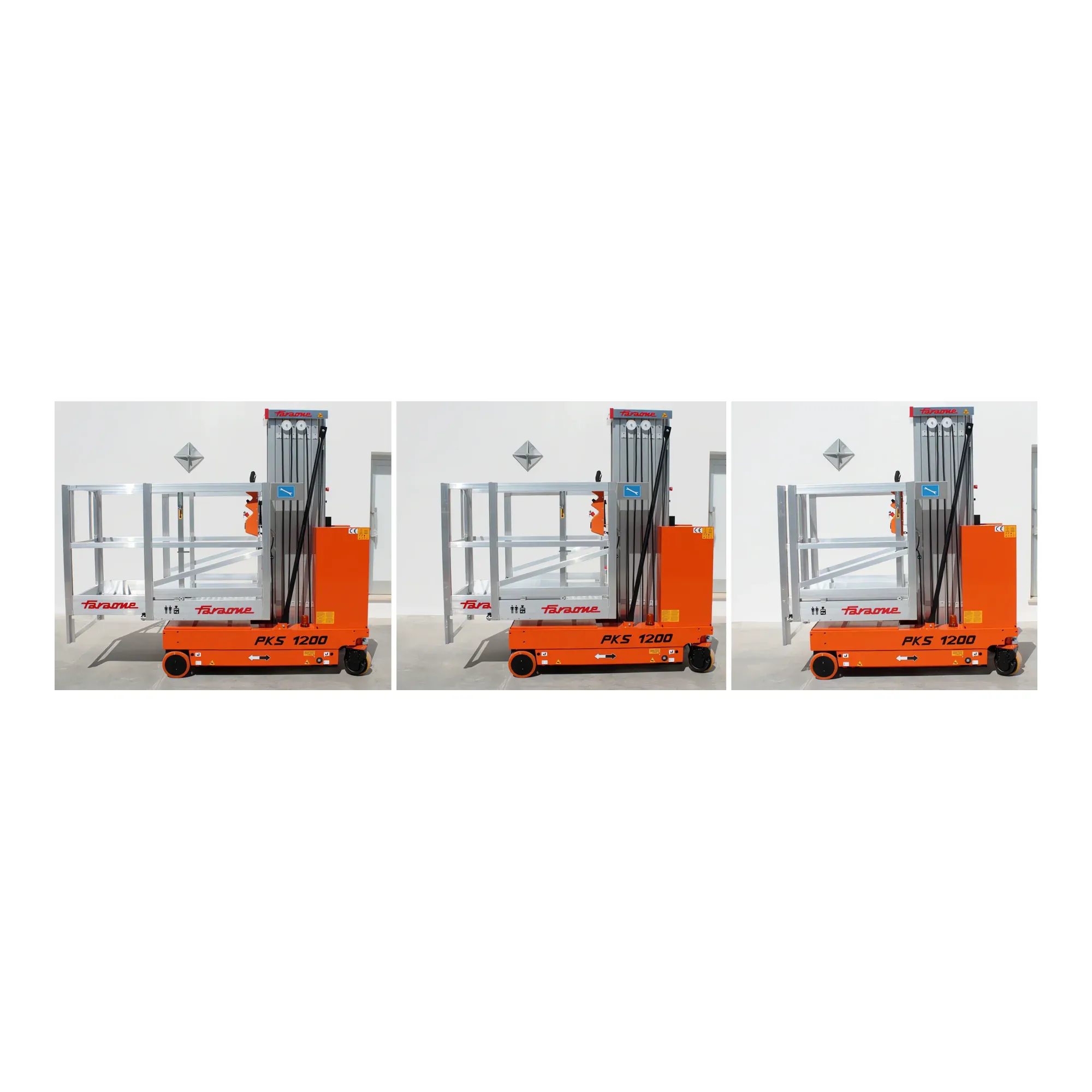

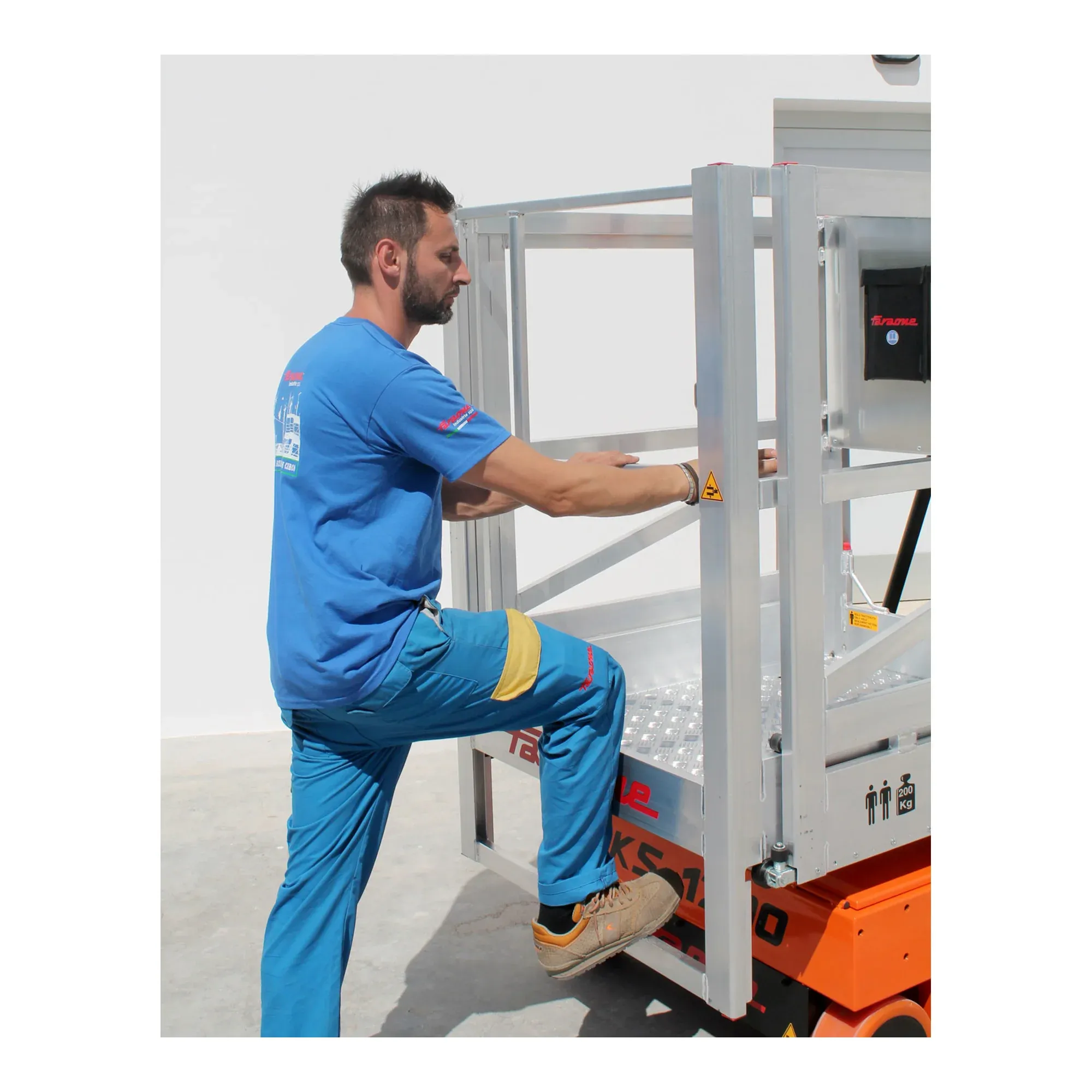

Approved for two operators and for external use, it is equipped with a welcoming and large basket that manages to protect the operator at 360 °. In fact, the basket measures 120x98 cm and can be extended by 63 cm to allow the user to reach the most difficult areas and always maintain an ergonomic position.

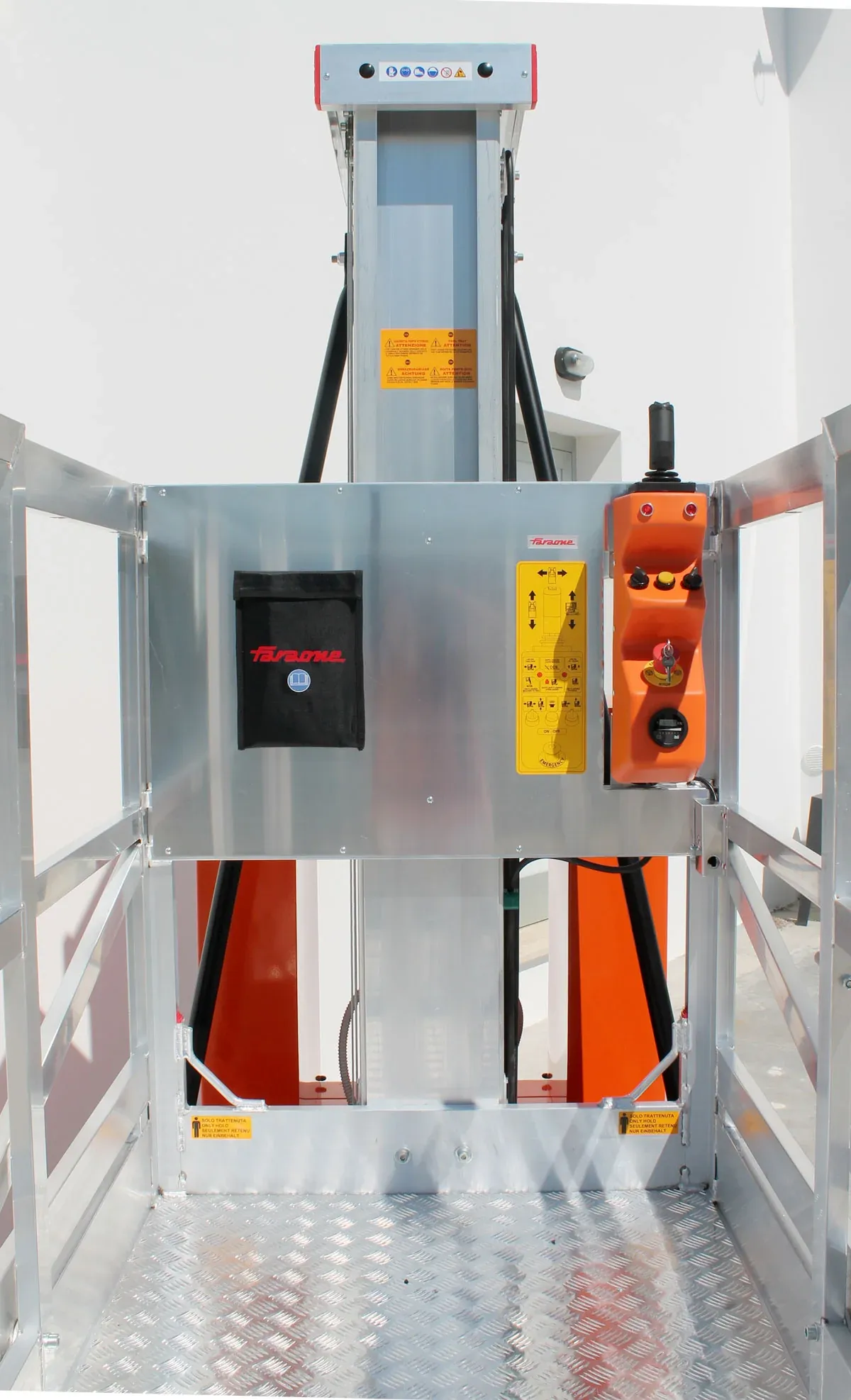

Comfortable and easy to use, it can reach even the most difficult spaces with the practical joystick and the small turning radius.

The platform is able to reach the desired height in a short time thanks to the maximum translation speed of 1.25 m / s.

The 12-wheel hydraulic system allows perfect sliding of the column ensuring maximum stability at height.

The machine can work at temperatures between -10° C and +40 °C

General

Max. capacity: 200 kg
Number of people: 2
Use: External

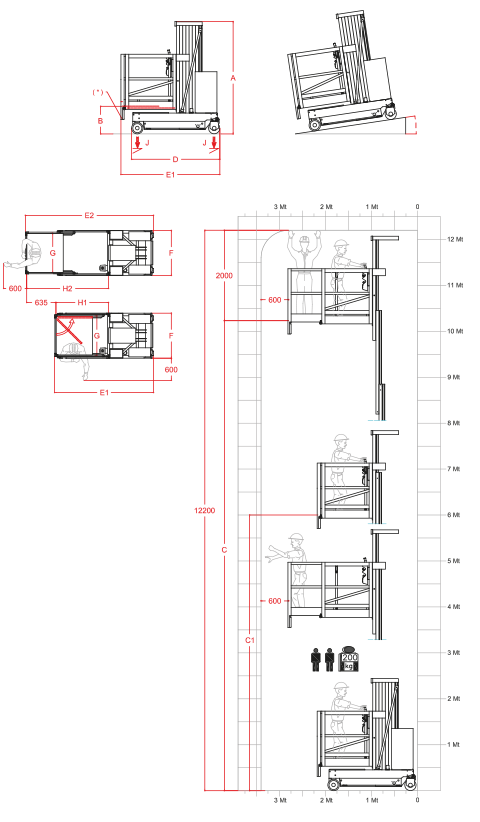

Dimensions

A — Closed machine height: 2450 mm
B — Minimum platform height*: 600 mm
C — Maximum platform height: 10,200 mm
D — Base overall dimensions: 1920 mm
E1: 2150 mm
E2: 2785 mm
F: 980 mm
G — Cage dimensions: 980 mm
H1: 1200 mm
H2: 1835 mm
Machine weight**: 2180 kg

Electrical System

Power supply: 24 V

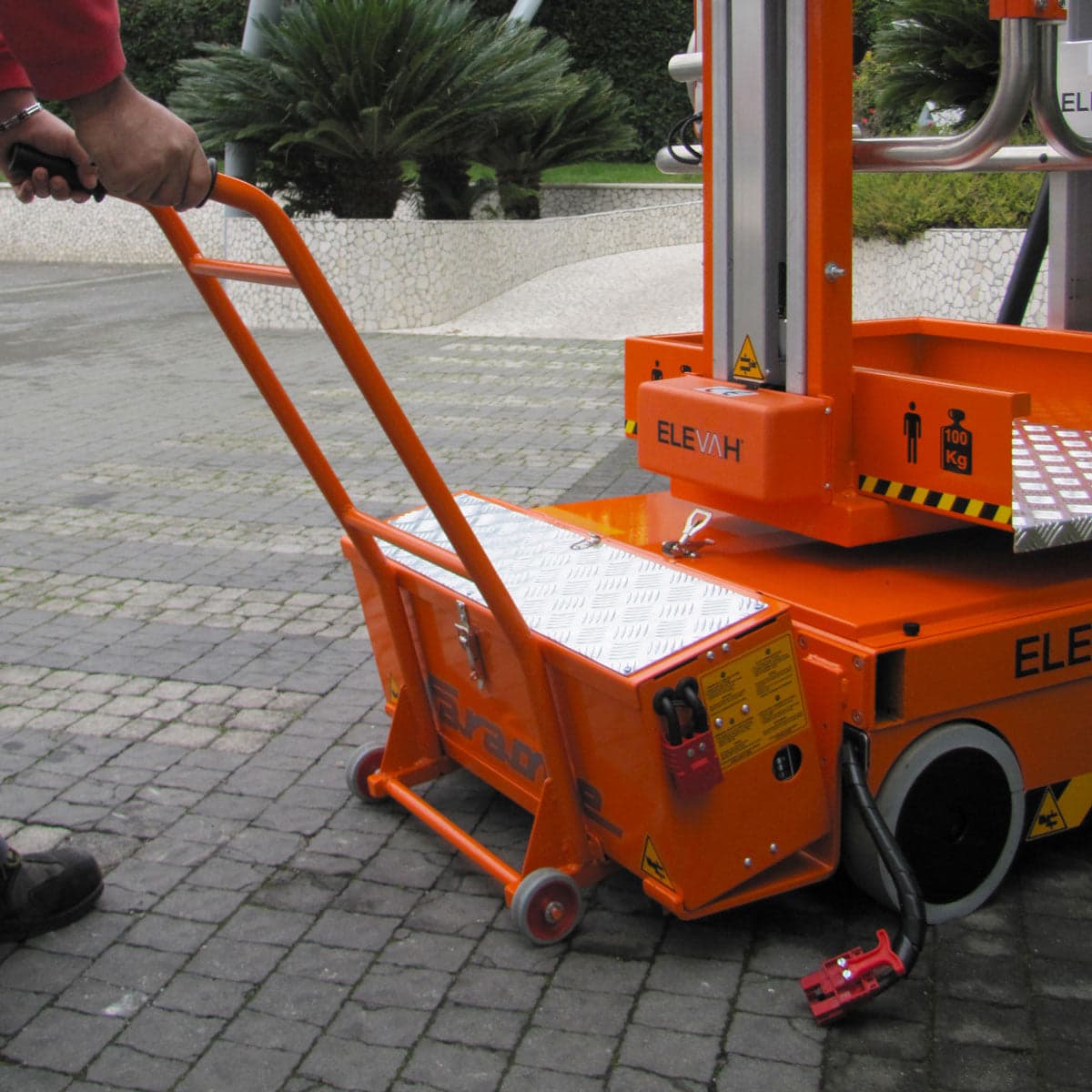

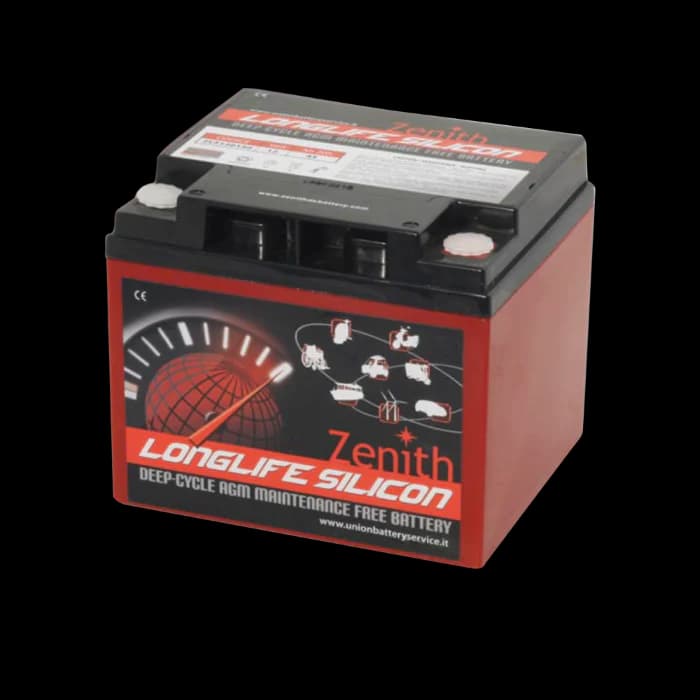

Batteries: 2 × 12V Acid Batteries, 130 Ah
Battery charger: 110V – 230V, 50/60 Hz

Wheels & Manoeuvrability

Drive wheels dimension: Ø 240 × 100
Swivel wheels dimensions (fixed): Ø 250 × 100
Turning radius: 1990 mm

Performance

Climbing ability at height: 1° – 1.7%
I — Maximum climbing ability: 15%
Max. speed (rising): 0.3 m/s
Max. speed (descending): 0.2 m/s
Maximum shifting speed: 1.25 m/s
Maximum shifting speed at height: 0.12 m/s
C1 — Max. self-movement height with extensible basket closed: 6000 mm
J — Maximum pressure for wheel at full load***: 8.4 kN

Notes

* There is an intermediate step.
** Inclusive of extensible picker.
*** Maximum pressure measured when the weight of the platform plus maximum basket load is fully distributed on one side (totally asymmetric load).
