Elevah65 Move Light

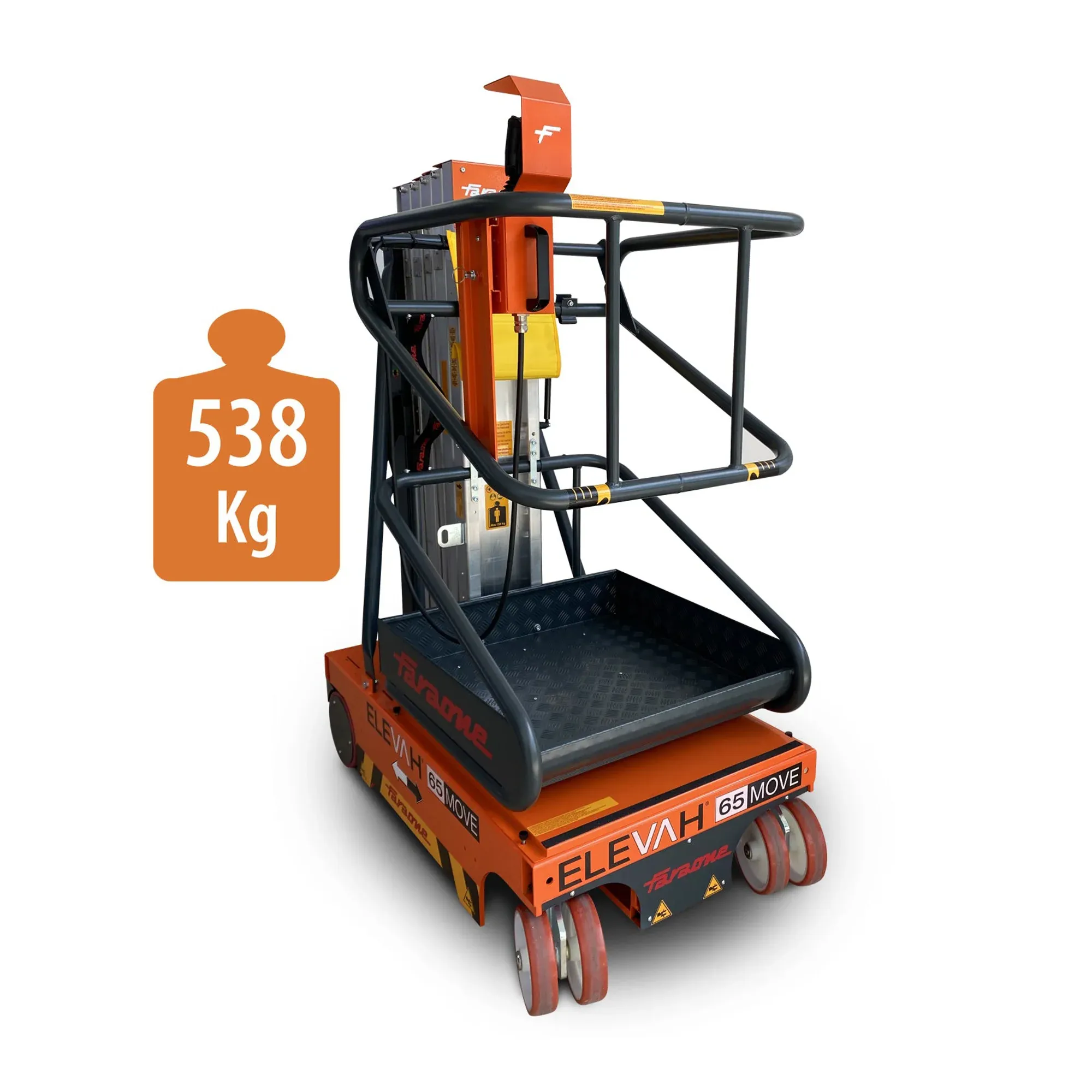

Self-propelled, electrically elevated platform with low weight (only 538Kg).
Specifications
Maximum Work Height
6.3 M
Measurements
78 X 128 CM H: 170 CM
Maximum Capacity
150 KG
Weight of Machine
538 KG
Standard Colouring
Grey and orange. Custom colours on request.
Areas of Use
Maintenance and cleaning of public buildings, offices and buildings; maintenance of shopping centres; - plant engineering (electrical, air conditioners, etc.). Ideal for museums, archives, etc.

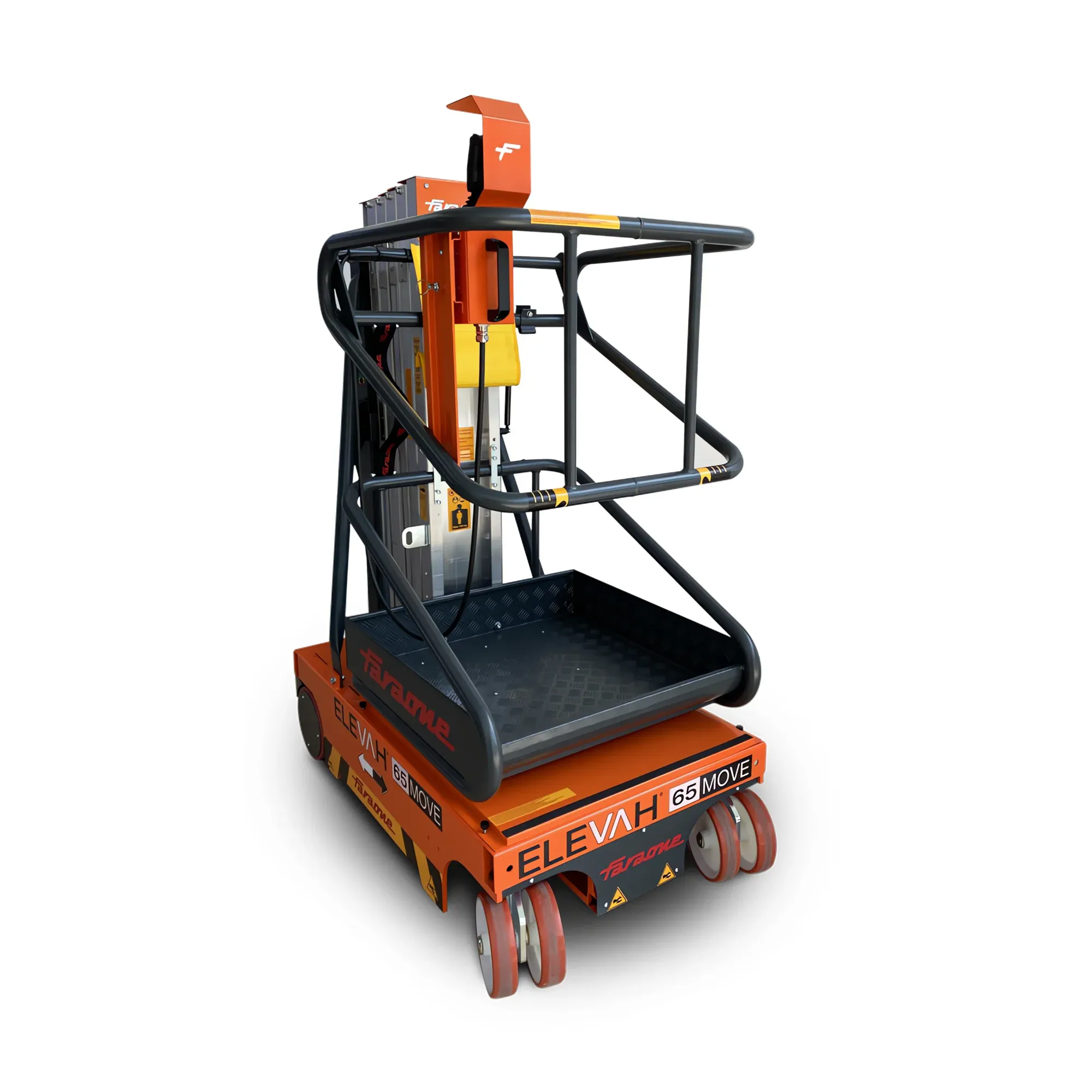

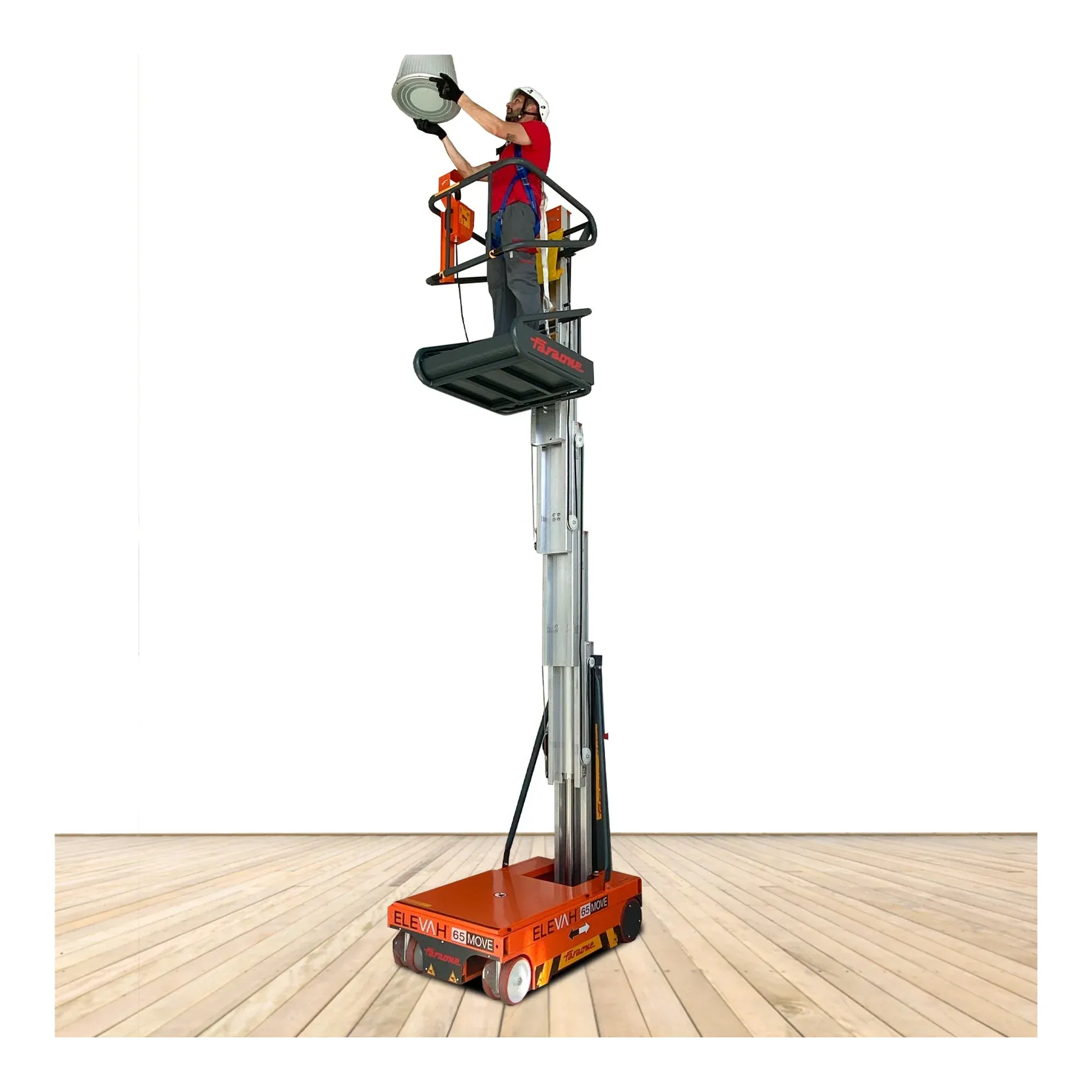

Elevah 65 Move Light is the self-propelled platform with electric elevation that allows to reach up to 6.3 m working height, extremely compact and light in weight (only 538 kg). Ideal for the maintenance of theatres, museums, sports halls, conferences halls and all places with delicate or low load-bearing floors.
The basket has a comfortable and safe access and it allows the operator to work at height protected on all sides, minimising the risk of injury and optimizing time.
Easy to maneuver thanks to the convenient joystick and the zero turning radius allows you to move easily even in the narrowest places.
The platform can be easily loaded onto a van by remote control and easily transported.
In the equipment and accessories section, you fill find the list of standard components and accessories to customize Elevah 65Move Light and adapt it to your needs.

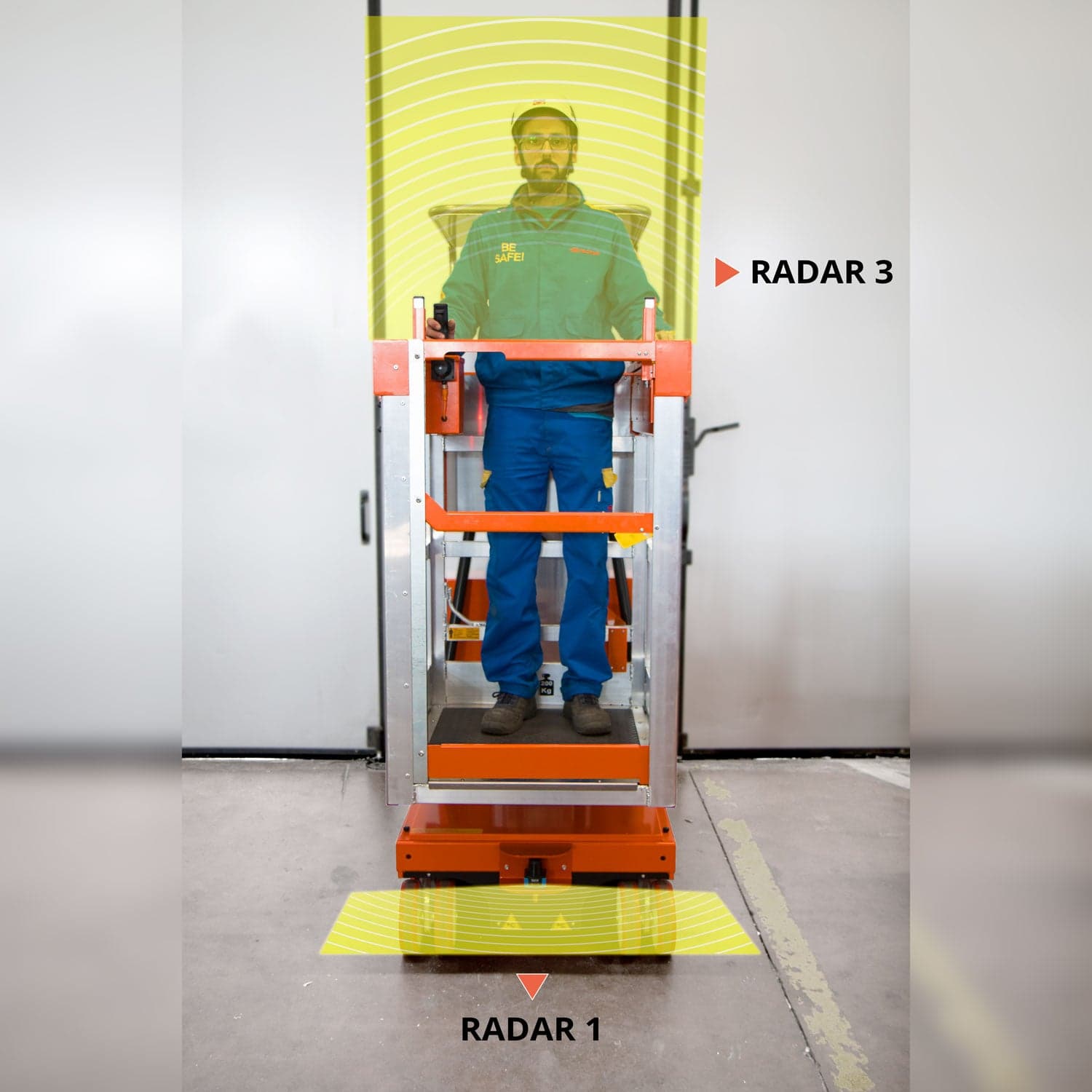

- ANTI-COLLISION RADAR

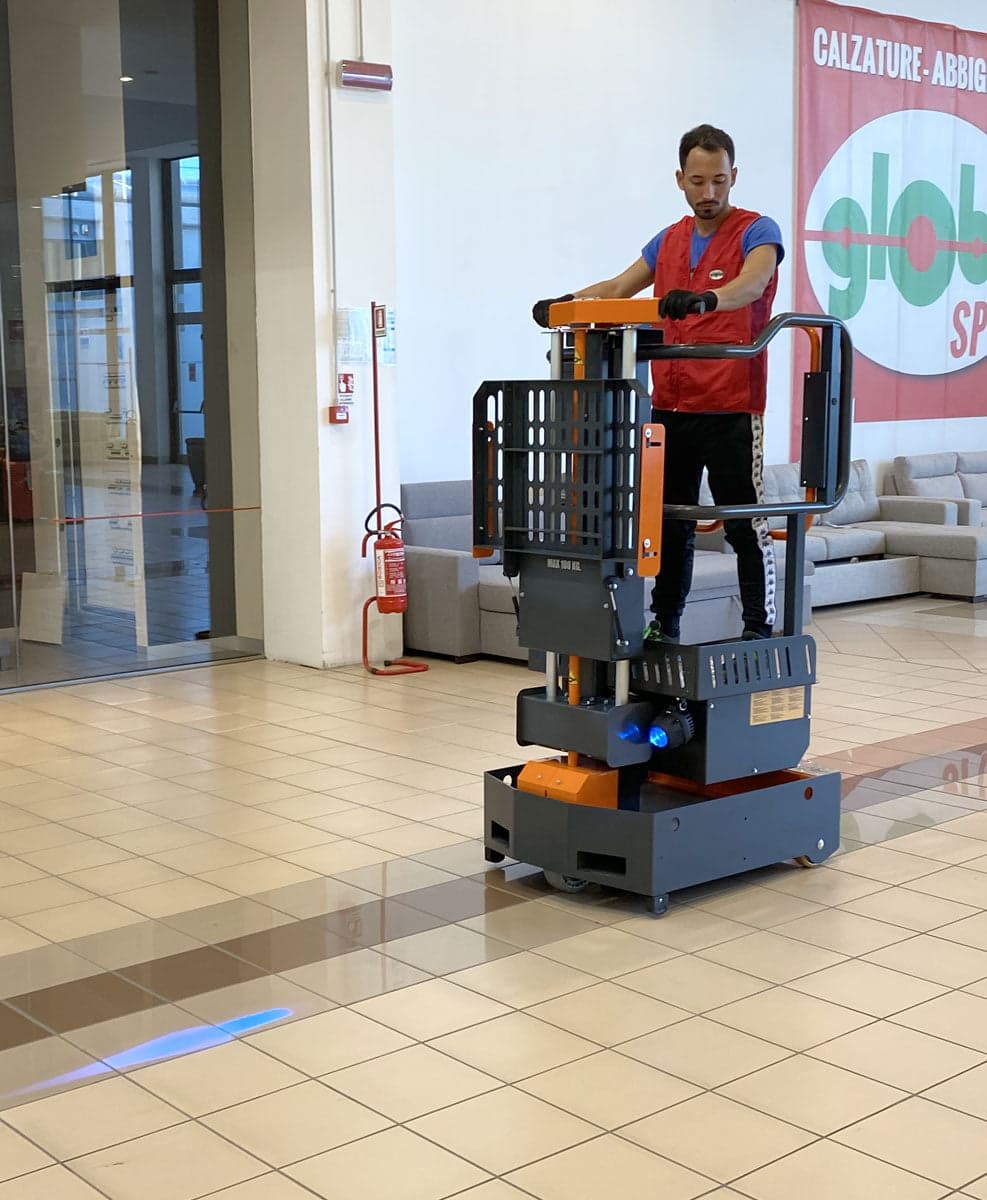

- BLUESPOT M(driving directions signalling light)
- ANTI-CRUSHING PROTECTION UNDER THE BASKET
MORE OPTIONAL

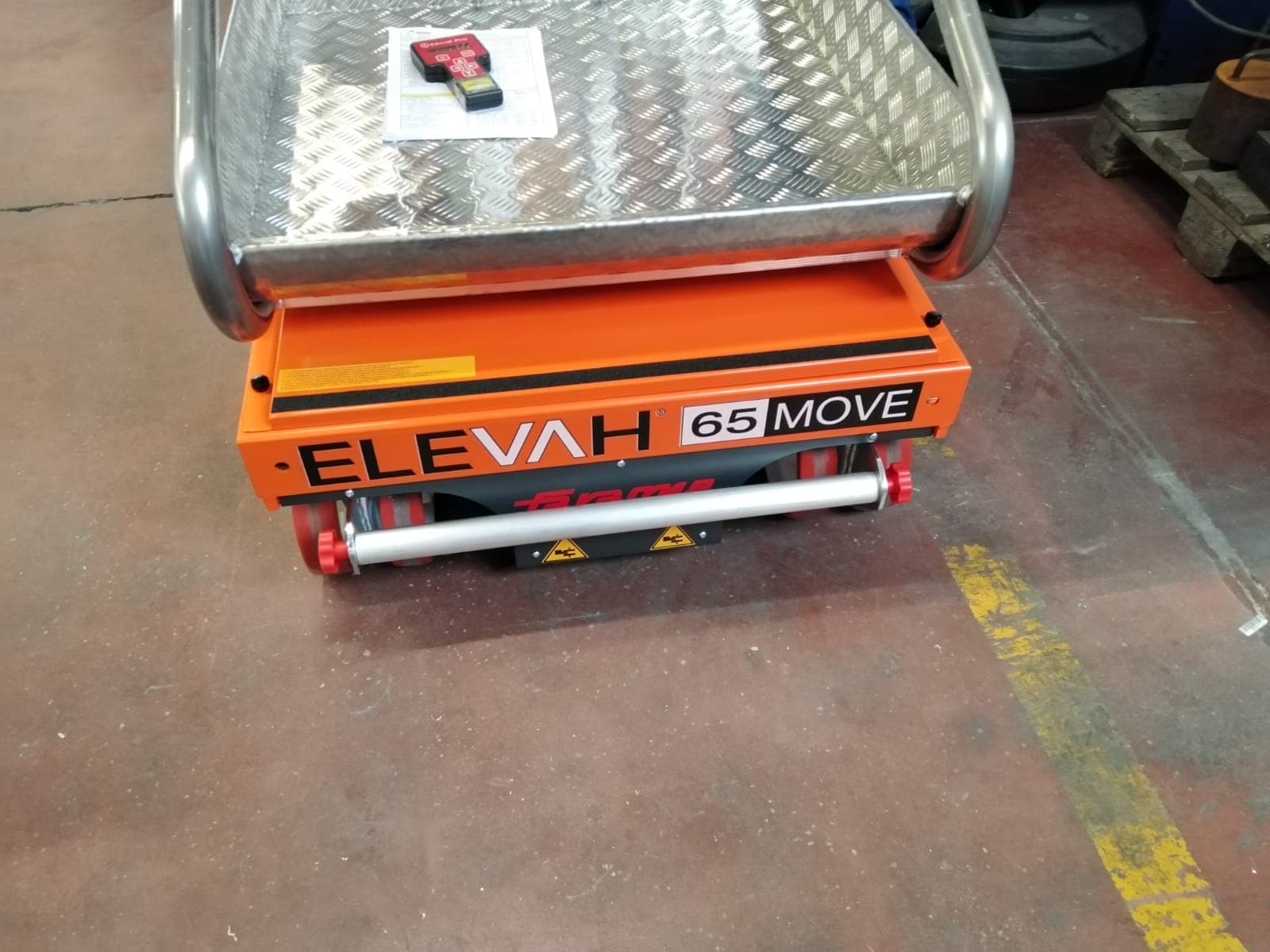

- MANUAL DIRECTIONAL LOCK
- TRUCK LOADING
Standard charger with retractable cable (Not included if BKIT option is selected).
General
- Max. working height: 6.3 m
- Max. capacity: 150 kg
- Number of people: 1
- Use: Internal

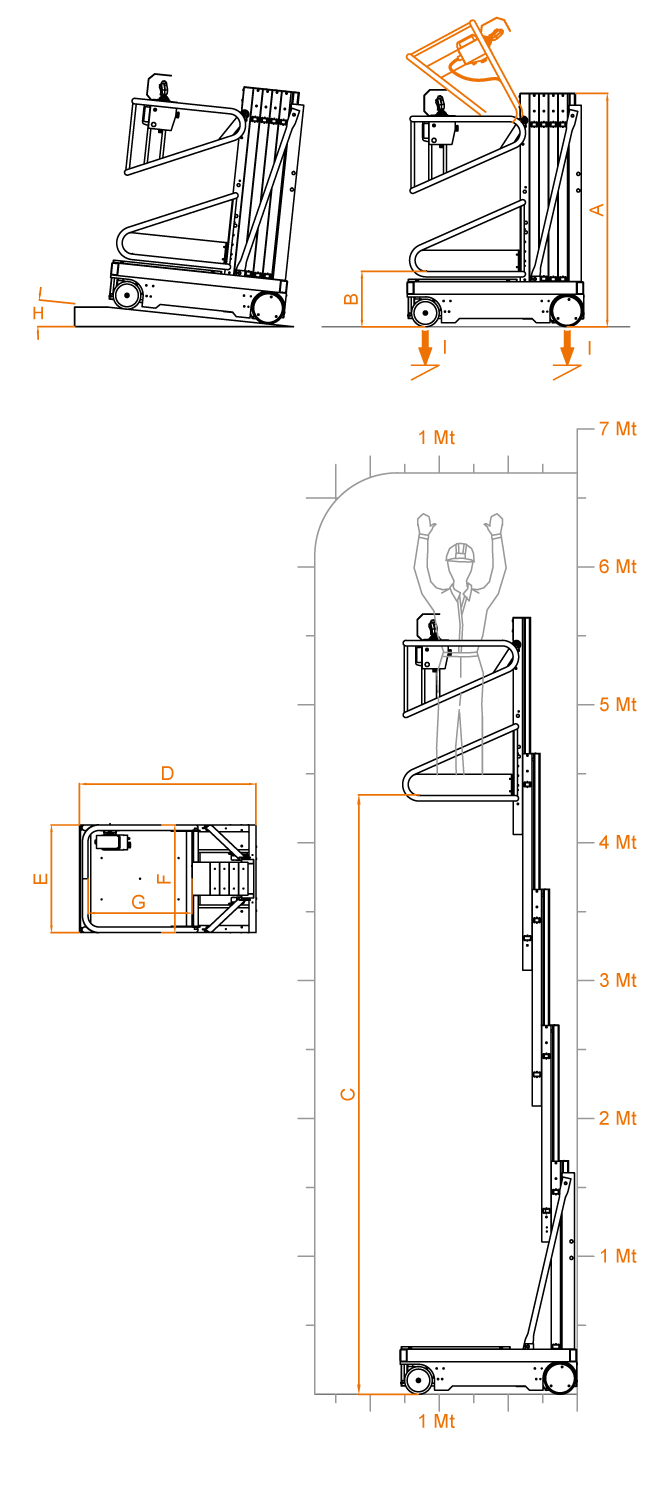

Dimensions
- A — Closed machine height: 1700 mm
- B — Minimum platform height: 400 mm
- C — Maximum platform height: 4345 mm
- D — Base overall dimensions: 1280 mm
- E: 780 mm
- F — Cage dimensions: 770 mm
- G: 790 mm
- Machine weight: 538 kg
Electrical System
- Power supply: 24 V
- Batteries: Lead-Acid 12V 105 Ah
- Battery charger: 110V – 220V
Wheels
- Drive wheels dimension: Ø 230 × 60 mm
- Swivel wheels dimensions: Ø 200 × 50 mm
Performance
- Climbing ability at height: 2.5%
- H — Maximum climbing ability: 15%
- Internal turning radius: 0
- External turning radius: 1095 mm
- Max. speed (rising – descending): 0.2 m/s
- Maximum shifting speed: 4 km/h (on ground) / 1 km/h (at height)
- I — Maximum pressure for wheel at full load*: 1.9 kN
- Work cycles (with fresh batteries)**: 130
Notes
* Maximum pressure measured when the weight of the platform plus maximum basket load is fully distributed on one side (totally asymmetric load).
** A work cycle = 20 m self-propelled movement + full ascent + full descent + adjustment of the loading platform.
Compliant with EN280 rule.
Approved for indoor use or outdoor use in the absence of wind.
Safety Equipment
- Maximum capacity control: Via relief valve
- Electronic inclinometer: With anti-tip function
- Potentiometer: Adjusts maximum translation at the basket edge
- Acoustic alarm signal
- Motion buzzer
- Light movement indicator
- Automatic electronic parking brake
- Horn
- 2-sash access doors to basket: With closure control
- Joystick safety: Safety catch to prevent accidental activation
- Drive wheels protection: IP65
- Emergency descent: Manually activated, basket lowers to base
Ergonomics and Functionality Equipment
Electronics, Power Supply and Batteries Equipment
- Self-propulsion: Proportional
- Basket lifting: Proportional
- Hour meter: Located on basket
- Battery charge indicator: Located on basket
Safety Devices
Ergonomic and Functional Equipment

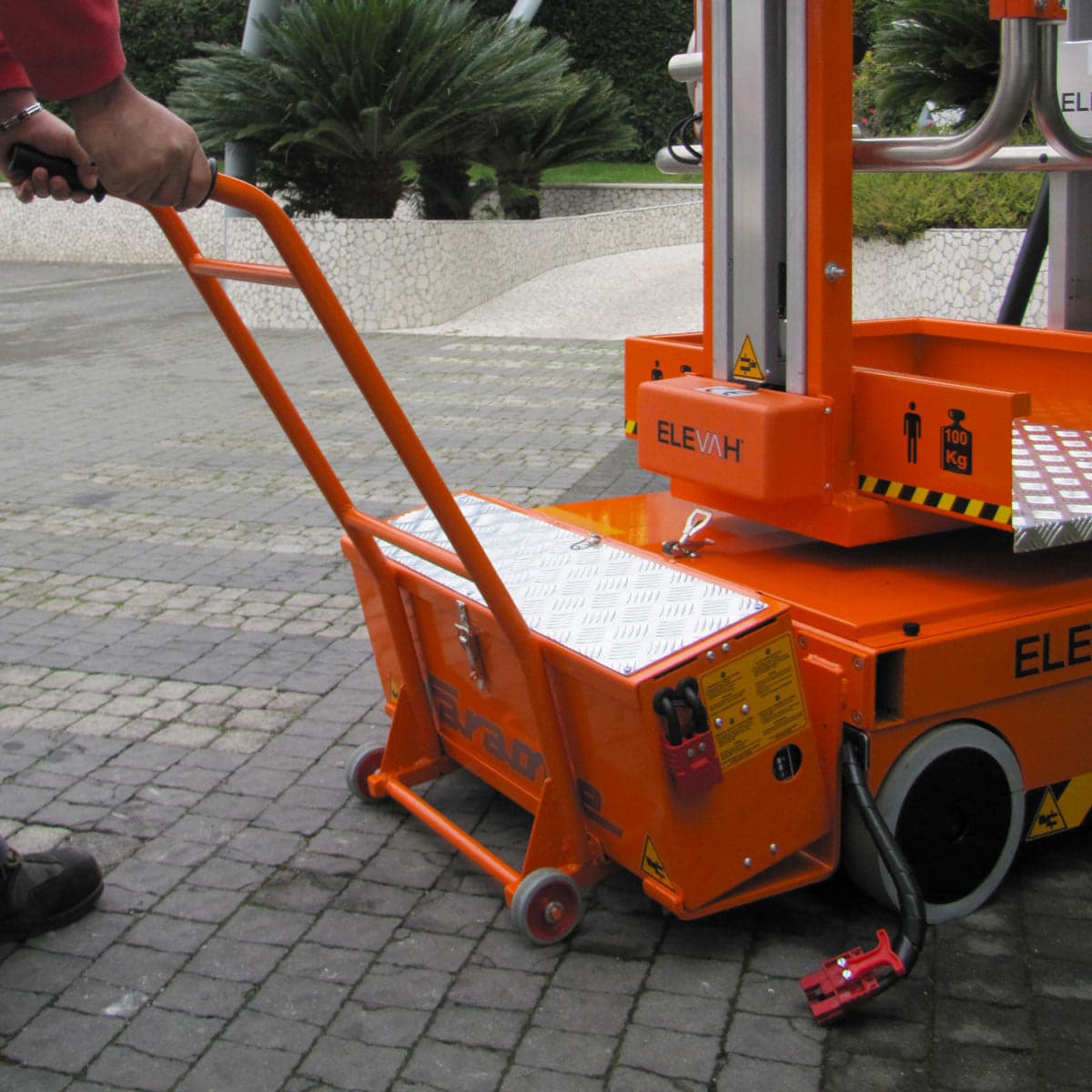

Batteries

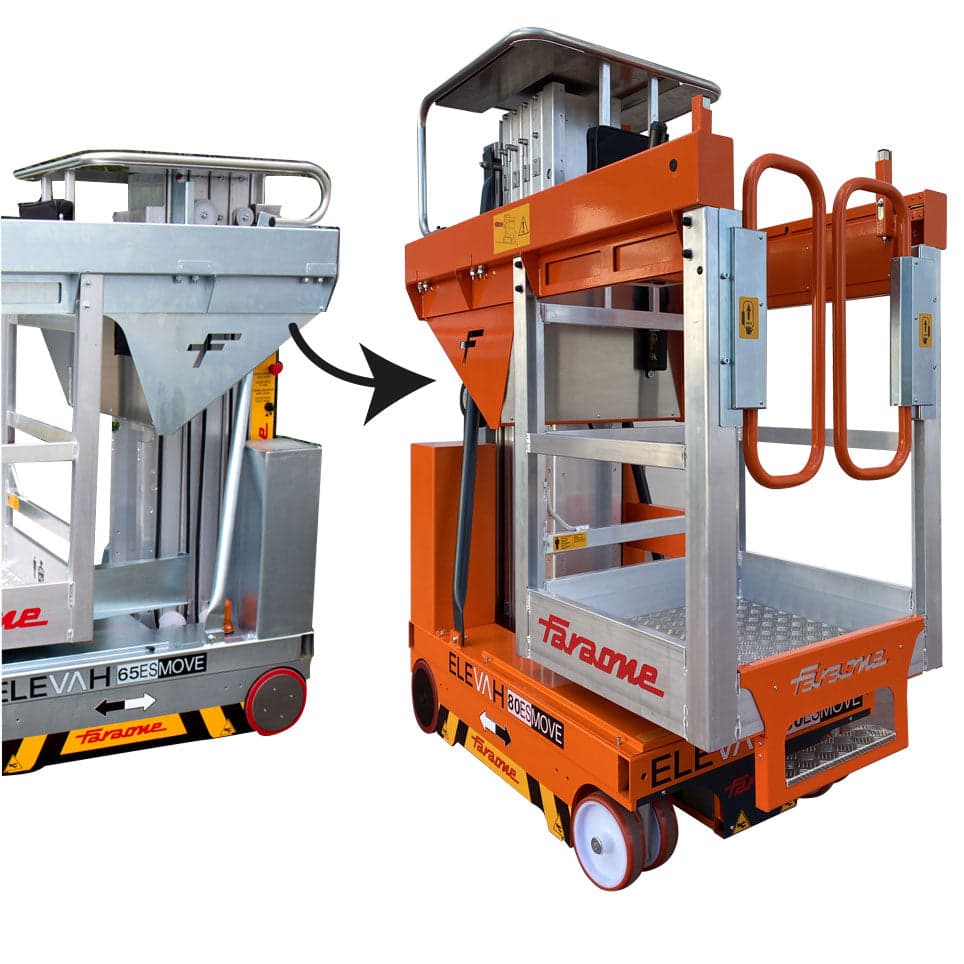

Colours
